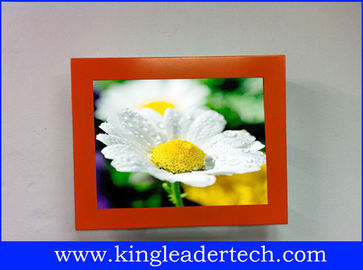

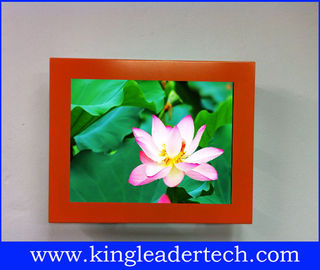

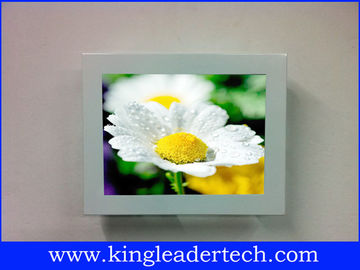

advertising kiosk

 Technical Specifications

TFT LED Display
- Resolution: 1280x800(15.4″)
1440x900(17″and 19″)
- Brightness:  300 nits
- Contrast ratio: 600:1
- Response time :8 ms



Touch Screen (Option)
- Vandal-proof SAW touch screen
- Material: Heat tempered glass
- Resolution: 4096*4096
- Deviation of error: <2mm
- Light Transmittance: ≥ 92%
- Surface Hardness:  7 Mohs scale
- Lifetime:50,000,000 times at one single location
- Response time: less than 16 ms
- Touch activation force: 10~100g

Enclosure

- Durable steel enclosure (different colors for option)

- Built-in power control panel, and hi-fi speakers.

- Two cooling fans for computer board and main body separately

- RJ45/RJ11 interface

- Large access doors with tubular locks/keys

Mother Board

-Tablet mainboard

-CPUAllwinner A10  1.0 GHZ

-RAM: 512M

-Storage memory: 512M

-WIFI

-3G(option)

Operation System
Android V4.0

Working Voltage
AC 12V.

Ambient Environment
- WorkingTemperature
-20℃~65℃;RelativeHumidity: 30%~90%
- Storage Temperature:
-40℃~80℃;Relative Humidity: 5%~95%


Weight and Dimensions
- Weight: 9 kgs for 15”

- Dimensions: 38.5x31x8.5cm

Interface:
2x USB
1x SD/TF card slot,support up to 32G
 1x HDMI, support up to 1080P
1x RJ45, 10M/100M
1x LVDS
1x 3.5mm Audio output jack
