Waterproof P5 Full Color Outdoor Led Display Board Advertising

Waterproof P5 Full Color Outdoor Led Display Board Advertising

Waterproof P5 Full Color Outdoor Led Display Board Advertising
Waterproof P5 Full Color Outdoor Led Display Board Advertising Waterproof P5 Full Color Outdoor Led Display Board Advertising Waterproof P5 Full Color Outdoor Led Display Board Advertising Waterproof P5 Full Color Outdoor Led Display Board Advertising

Large Image :  Waterproof P5 Full Color Outdoor Led Display Board Advertising

Product Details:
Place of Origin: China
Brand Name: D-King
Certification: CE, RoHS
Model Number: Full Color Led Signs for Sale
Payment & Shipping Terms:
Minimum Order Quantity: 1 SQM
Price: Negotiable
Packaging Details: Wooden box or flight case
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union
Supply Ability: 4000m²/month
Detailed Product Description
Item Name: Full Color Led Signs For Sale Brightness: 6500cd/m²-10000cd/m²
Driving Method: Constant Current Pixel Pitch: 10mm
LED Type: DIP346 Display Color: 17M~69G Colors
High Light:

led display panel

,

full color led display

Waterproof P5 Full Color Outdoor Led Display Board Advertising





P5 outdoor led video display is one of the latest high definition outdoor led products in Shenzhen D-King Photoelectric Technology Co., Ltd. and the multi-channel applications lay foundation for the unshakable position of D-King Led in outdoor SMD led display panels filed. Outdoor P5 led video display is a new favorite among outdoor led displays advertising, and it has been widely applied for advertising campaigns in many public places such city road network, city parks, metro and railways and other transportation inducible system and expressways.



Product Advantages of P5 Outdoor Led Display Advertising:



1. The material selection of LED

Outdoor SMD P5 led display uses SMD2623 and it uses in-white and out-black subversive design which significantly improves the contrast of the led display. Besides, excellent waterproof performance, super high brightness, unique encapsulating material and independent patent dampproof technology greatly improves the resistance performance of UV, vulcanization, damp and heat and it has longer service life and stable and consistent brightness. The brightness of this led panel display can reach as high as 5000cd/m²-6500cd/m².



2. Circuit design

High end LED should certainly match high grade PCB circuit to make the product more excellent. In the design of PCB circuit, the outdoor P5 led advertising display uses D-King unique circuit board design and green oil oxygen-barrier to prevent the circuit from being damped and oxidation, which fundamentally improves the service life of the products and the visual angle from both horizontal level and vertical level.



3. Protection Grade

Every product of our company has three proofings lacquering technology to protect the circuit boards and other relevant equipment from being corroded by the environment. After solidification, a layer of transparent protective film will form and it has the performance of insulation, dampproof, anticreep, dust prevention, corrosion protection and ageing resistance.



4. Light-weighted cabinet

The cabinet of outdoor SMD P5 led display screen is another advantage. The cabinet is made of aluminum alloy, and it is designed with light weight, beautiful appearance and fast assembly and disassembly, making it suitable for rental company, truck mobile led display, mobile media screen and tourist attractions guiding screen. Besides, upright or wall installation greatly reduces the pressure of the display screen on the steel structure.



5. Energy-saving design

The energy-saving design reduces the running cost, and extends the service life of the P5 led display advertising. It uses Germany advanced led with low power consumption and super high brightness driving, and can reduce energy by over 20%.


Technical Parameters of P5 Outdoor Led Display Advertising:

Model P5 Outdoor Led Display Advertising
Pixel Pitch 5mm
Pixel Composition 1R1G1B
LED Type SMD346
Pixel Density 40000/m²
Scanning method 1/4
Brightness 5000cd/-7000cd/m²
Working Voltage AC110V±10%, 50Hz-60 Hz
Average Power 350W/m²
Max. Power 1100W/m²
Pixel No. on Unit Plate 32×32
Module Size 160mm×160mm
Level up degree <1mm
Viewable Distance 5m-100m (The bigger is the size of the display is, the large the visible distance will be)
Viewable Angle Horizontal: 120°, Vertical: 60°
Screen Weight 40kg/m²
Driving Method Constant current
Display Color 17M~69G colors
Display Color Manual/Automatic/Remote
Grey Scale 256~4096
Refresh Frequency 300 Hz~2440Hz
Refresh Frame Frequency 60Hz
Display Content TV picture, ads, video, live streaming video, picture and words
Display Mode 640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640
Control Method Synchronous, asynchronous, remote and wireless
Transmission Distance 5E cable≤130M  Multimode fibre500M  monomode fibre10KM
Transmission Distance ≥72 hours
Service Life of Led 100,000 hours
Mean Time Between Failure ≥10,000 hours
Dispersed Incontrollable Point <0.01%
Continuous Incontrollable Point No
Protecting Technology Waterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage.
Temperature of Use Environment -20℃~+50℃
Moisture of Use Environment 10%~90%
Certifications CE, ROHS


Note: The technical parameters are just for reference, please contact us for details.

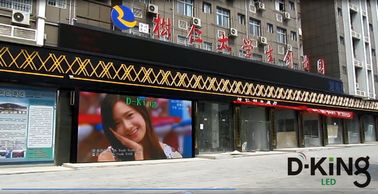

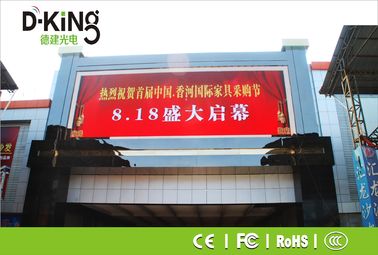

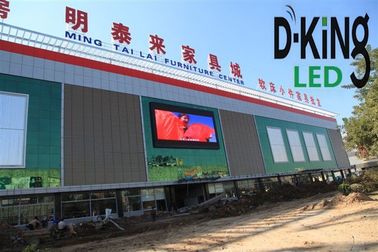

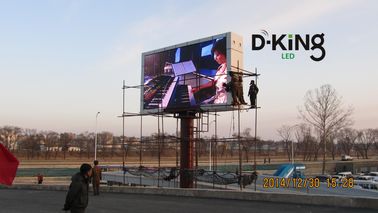

More Pictures for Your Reference:



P5_outdoor_led_module



Outdoor_led_display_advertising



CEO office



Office_building



backside_of_aging_process



Production_workshop
