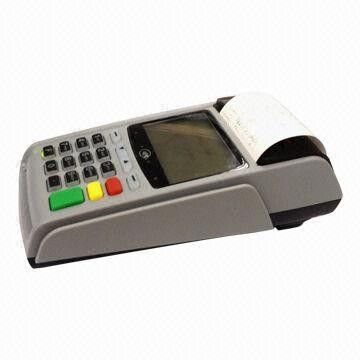

EFT-POS Terminal with Thermal Printer

touch pos terminal with thermal printer gprs

EFT-POS Terminal with Thermal Printer

Product Introduction

EFT-POS Terminal with Thermal Printer, IC Card Reader, MSR Mifare, GPRS

Main Parameter

Processor: OKI ARM7 Core, up to 64MHz, (OKI 675050)

Memory: SDRAM 8MB

Flash: 4MB

Display: 128 x 64P LED backlight

Keypad: 10 number keys and 9 function keys

MSR: read track 1/2/3 at the same time (singular M3-2100/M3-2200)

RFID: supports misfire type A/B (RC632)

ICC reader: ICC and PSAM reader conform to ISO 7816, China's integrated circuit (IC) card norms

Supports 3, 5V synchronous and asynchronous IC card read and write

Supports EMV card and memory card read and write ICC (NCN6001)

3 PSAM cards and supports 5V operating

Communication (optional): wired (supports modem)

Transmission rate: asynchronous over 33,600bps, synchronous 1,200/2,400/9,600bps, supports TCP/IP over PPP communication protocol

Ethernet: 10/100M adaptive

Wireless: GPRS, G600/G610/GTM900C

CDMA: MC8331/MC8332

Wi-Fi: IEEE 802.11b/g/n (1T1R)

Program download: supports serial port

Power supply: 8.5V DC/2.5A

Operating temperature: 0 to 50°C

Hardware interface: 2 RS232 ports

1 TEL interface

1 Ethernet RJ45 interface (100M)

1 power supply interface
