Product Details:
Payment & Shipping Terms:
|
| Function: | Automatic Bill Payment Kiosk | Kiosk Material: | 2.0 Mm Cold-rolled Steel |
|---|---|---|---|
| Material Feature: | Anti-vandalism, Water-proof, Dust-proof, High Safety Performance | Screen Size: | 19" And 22" Or Customized |
| Payment Method: | Cash / Coin / Card Optional | Kiosk Color: | Customized |
| OS Systerm: | Windows XP/windows 7/windows 8 | Warranty: | 1 Year For Automatic Bill Payment Kiosk |
| High Light: | Kiosk Payment Machine,Money Transfer Kiosk |
||

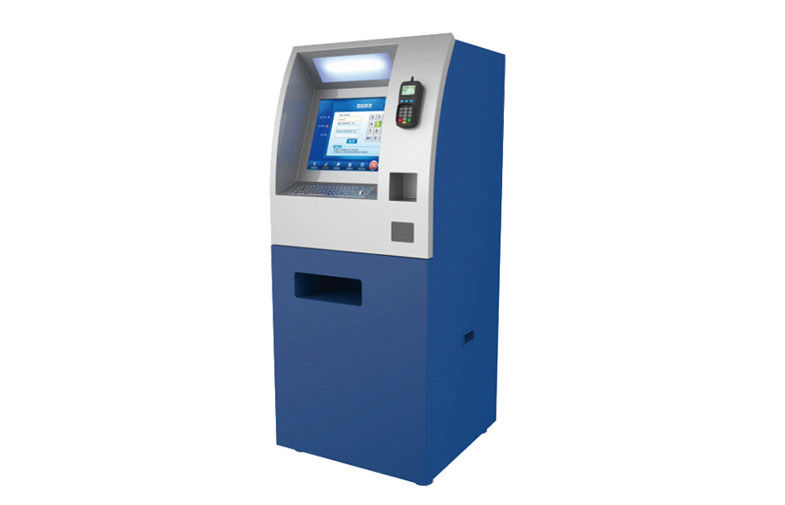

Indoor Touch Screen Machine Automatic Cash / Banknote Payment Kiosk with POS Terminal
Sunsun Bill Payment Kiosk Features:
Sunsun Bill Payment Kiosk Applications:
Indoor Touch Screen Machine Automatic Bill Payment Kiosk with POS Terminal are including self service payment kiosk, touch screen bill payment kiosk, bank payment kiosk, cash payment kiosk, top up kiosk, self pay kiosk, Financial Services Kiosk, Automatic Payment Machine, Payment Terminal Kiosk, ATM etc.
Sunsun Bill Payment Kiosk Configurations:
|
Components
|
Details | |
| PC systerm |
Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | 2nd /3rd Generation Intel Core I7/I5/I3 in LGA1150package | |
| RAM | 2GB /4 GB / 8GB | |
| HDD | 500G | |
| Interface | 6 RS 232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | Great Wall | |
|
LCD monitor |
Screen Size | 17 inch/19inch ( optional from 8inch to 65inch) |
| Brightness | 300cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Max. resolution | 1280×1024 | |
| Touch screen |
Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Bill Acceptor | Cassette capacity | 1000 notes |
| Features | High accepting rate, high security | |
| Bill dispenser | Cassette capacity | 600 ~ 3000 billnotes as optional |
| Denominations | 1.2.3.4 denominations to be dispensed as optional | |
| Interface | RS232 | |
| POS | Key pad | 11* alphanumeric keys,8* functional keys,1* power switch |
| Wireless communication port | GRPS,CDMA 1X / CDMA 2000 / WCDMA / TD-SCDMA / WIFI as optional | |
| Interface | 1*Mini USB; 1*12PIN; 1* power port | |
| Epson receipt thermal printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 800mm or 58mm | |
| Interface | RS232 ,USB | |
| Power Supply | AC input voltage range | 100 240VAC |
| Frequency | 50Hz to 60Hz | |
| Output over current protection | 110~130% | |
| AC input voltage range | 100 240VAC | |
| Frequency | 50Hz to 60Hz | |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Operation System | Windows 7 or Windows XP operation system without license | |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
| Packing | Security Packing method with bubble foam and wooden case | |
Other optional configurations as below:
At Sunson, we understand that not every customer is the same. Your business is unique and so is the self service kiosk. Our team pay much attention to your needs and support you a complete solution for how to implement automatic bill payment kiosk into your business.
