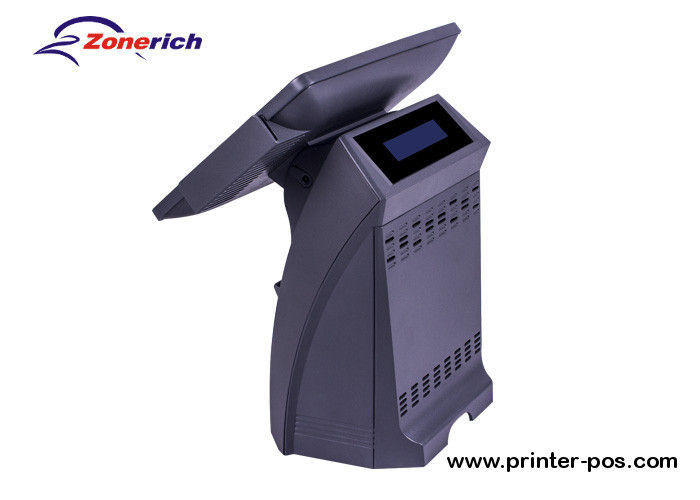

All in One Touch Android POS Terminal
9.7" Restaurant Android All in One Touch POS Terminal with Customer Display
PRODUCT NAME: Android POS Terminal
MODEL#: ZQ-A1088
HIGHLIGHTS
OPTIONAL
SPECIFICATION
| CPU | Rockchip RK3066 Dual-core Cortex-A9 1.5GHZ or Quad Core |
| RAM | DDR3 1GB |
| Storage | Nanda Flash 4GB |
| Optional | SD 32G |
| Operating System | Android 4.1 |
| Languages | English /Chinese /Russian /French /German /Italian /Spanish |
| Operator Display | 9.7 inches diagonal, LED Back light, 1024×768 LVDS |
| Touch Screen | 9.7 inches diagonal, Projected Capacitive touch, USB |
|
Customer Display (Three choose one) |
LED: 10 Digit, DC5V, RS232, 2400BPS, Characters: 0…9 VFD: 2*20 Digit, DC5V, RS232, 9600BPS, ASCⅡ code, Page 0 (PC437:USA,StandardEurope);Page 1 (Katakana) Page 2 (PC850:Multilingual); Page 3 (PC860: Portuguese) Page 4 (PC863: Canadian-French); Page 5 (PC865: Nordic) Page 6 (Slavonic); Page 7 (Russia) Page 12 (Greek); Page 16 (WPC1252) Page 19 (Pc858 Euro); PAGE36(PC862,Hebrew) LCD: 2*20 Digit,DC5V, RS232, 9600BPS; ASCⅡ code |
| Internet | Optional 802.11 b/g/n WI-FI module |
| Thermal Printer Model |
80mm Thermal Printer, Automatic cutter, Max 170 mm/sec, Diameter Max.￠80 mm, GB2312, PC437, Katakana, PC850, PC860, PC863, PC865, WPC1253, Iran, WPC1256, PC737, WPC1250, WPC1252, PC866, PC852, PC858, WPC1257, WPC775, WPC1251, User define |
| Printer Port | USB and RS232 |
| Card Reader (optional) | USB or PS/2, DC5V±5%,65mA(max) |
| External Port |
1 RS232 serial interfaces, 1 VGA interface, 1 RJ45 Ethernet port, 4 USB interfaces, 1 DC24V input interface, 1 Cash Drawer Interface |
| Power Supply | DC24V, 5A |
| Environment |
Operating temperature and humidity:-10°C ~ 40°C, 20 ~ 80% RH Storage temperature and humidity:-20°C ~ 50°C, 20 ~ 90% RH |
| Dimension | 250(L)X205(W)X323(H)mm |
DOWNLOAD
ZQ-A1088
