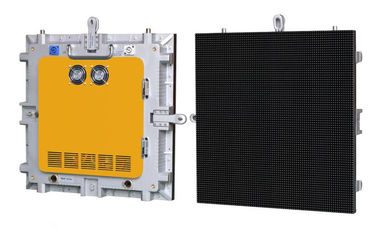

P4 SMD3528 Die-Casting Aluminum Rental LED Display For Indoor Advertising
Quick Detail:
1) Stable quality:Epistar chipset;
2) High brightness:1400 ~1600nits;
3) Scan driver:scan current;
4) Cabinet size(L*W):480*480mm;
Description:
Humanized structure designing guarantees the minimum assembly gap as 0.1mm between cabinets, Thickness of this
cabinet is only 76.4mm
Equipped with patented fast locks, durable and graceful. Easy assembly and dismantling
Speedy heat venting designing ensures steady cooling of the cabinets even equipped no fans
A light base lessens the space,occupied by the display.

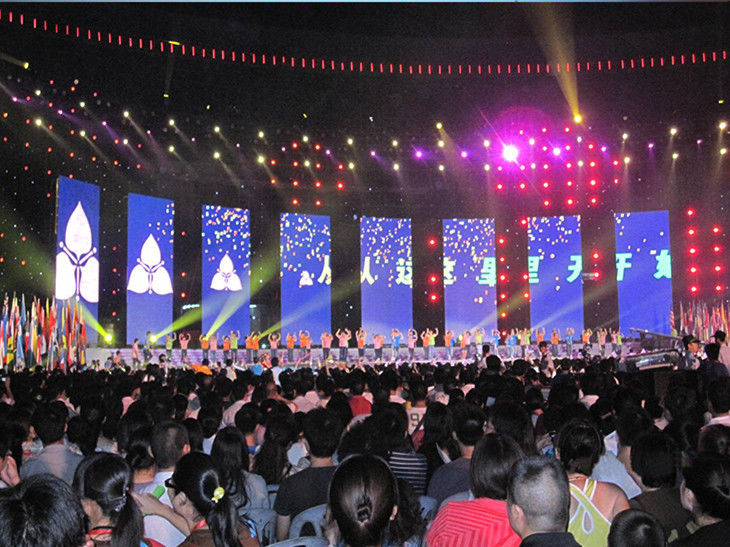

Applications Occasions:
Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Specifications:
480mm series Indoor Rental Full Color LED Display Screen:
| Pixel Pitch (mm) | 4mm | 5mm |
| Pixel density(pix/m2) | 62500 | 40000 |
| LED Type | SMD2020 | SMD3528 |
| Viewing Angle | HZ:140°,V:140° | |
| Brightness(nits) | 1600 | 1500 |
| Drive Method | 1/15 scan | 1/12 scan |
| Driving IC | MBI5024 | |
| Color Depth | 16bit | |
| Refresh Rate(Hz) | 600 | |
| Module Size (mm) | 240×240 | |
| Cabinet Size(mm) | 480×480 | |
| Cabinet Material | Die-cast aluminum | |
| Cabinet weight(kg) | 9.5kg | |
| Voltage | 110/250V | |
| Average.power(W / m2) | 585 | |
| Max.power (W / m2) | 1300 | |
| IP Grade | IP31 | |
| Operating temperature/humidity | temperature:-20℃～ 50℃ humidity:10～90%RH | |
| Storage temperature/ humidity | temperature:-40℃～ 60℃ humidity:10～90%RH | |
| Lifetime(h) | ≥50000 | |
LED Display Screen Installation Structure:
Hanging ,floor type,push-in- type,wall mounting type,brace type,pillar base...
Competitive Advantages:
1) Stable quality and fast Response;
2) Short delivery,effective production;
3) Sample order,trial order be acceptable;
4) Good communication;
5) 2 years warranty;
