1RGB PH10 Rental LED Screen , LED Video Panels Steel / Aluminum
Quick Detail:
1, LED Chips: Epistar;
2, LED Driver IC: MBI5020,MBI5024;
3, LED Power Supply: Meanwell;
4, LED Module Size: 320mm x 320mm;
5, Haning up structure;
6, Best vies distance above 8 meteres;
Description:
1, 1RGB PH10 LED Panel rental is traditional rental LED screen type;

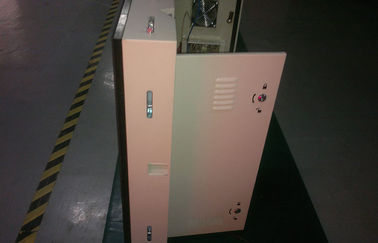

2, It's equipped rental LED displays structure like strong hanging pole,fast lockers,hanging bar and bottom pad etc;
3, Cost effective compared with new model die casting aluminum rental LED screens;
4, Flight case package for movable use in different events and sites;
5, LVP605S video process is equipped for multi signal input like HDMI,SDI,Camera,TV etc;
6, Strong cabinet structure support stable on stand installation
Applications:

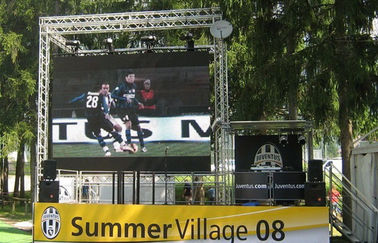

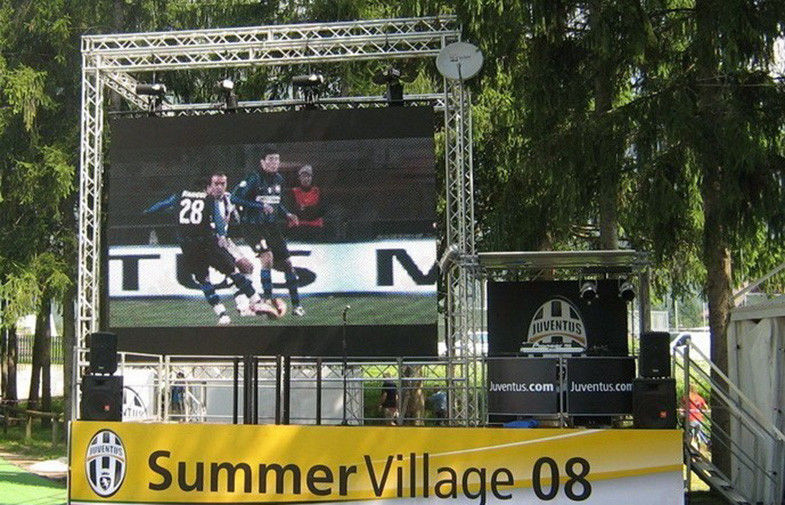

Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
Specifications :
| LED MODULE PARAMETER |
| Pixel pitch (mm) |
10 |
| Pixel configuration |
1R1G1B |
| Encapsulation |
DIP346 |
| Colors matches |
6:3:1 |
| Module resolution (pixels) |
32 x 32 |
| Module pixel |
1024 |
| Module size (mm) |
320 x 320 |

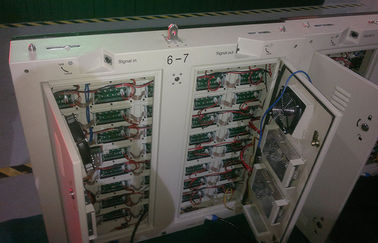

| LED CABINET SPECIFICATION |
| Cabinet size (mm) |
960 x 960 x 160 |
| Cabinet resolution (pixels) |
96 x 96 |
| Cabinet pixels (pixels) |
9216 |
| Cabinet material |
Steel/Aluminum |
| Cabinet weight (kg) |
50 |
| LED DISPLAY SPECIFICATION |
| Pixel density(pixel/m2) |
10000 |
| Brightness(cd/m2) |
≥8000 (adjustable) |
| Brightness adjusted |
100 grade by software or by Auto-optic induced |
| View angle |
Horizontal 110°; Vertical 70° |
| Best viewing distance (m) |
≥8m |
| Communication distance(m) |
<100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km |
| Display work method |
1/4 Scan |
| LED driving method |
Constant driving current |
| Color contrast ratio |
4000:1 |
| Gray Grade |
16bit |
| Display Color |
439, 804, 651, 110 |
| Refresh Frequency (Hz) |
≥2800 |
| Picture display method |
Intellective control technology , test-itself technology , correct technology,
Synchronization Control |
| Input signal |
DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting ) |
| System operating |
WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level |
IP65 |
| Working temperature(ºC) |
-20～+60 |
| Stored temperature (ºC) |
-30～+80 |
| Operation humidity(RH) |
0-95% |
| Display Lifetime(hours) |
10 years or more( natural environment)
100000 hours( ideal environment) |

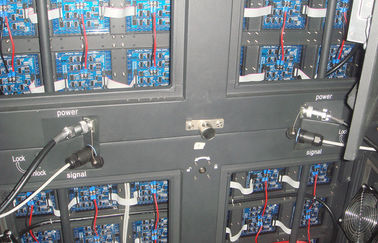

| Maintenance |
Rear side |
| Working Voltage |
AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot |
≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one) |
Competitive advantages:
1, High resolution for outdor rental LED screens use;
2, Cost effective compared with buying stadium LED screen and rental LED video walls separately;
3, High contrast ratio:Contrast ratio up to 4000:1 to react real color of the content;
4, Utilizing MBI5020/MBI5024 driver IC to reach high refresh frequency and high grey grade;
5, IP65 waterproof for both outdoor and indoor use;
6, High brightness up to 8000cd per square meters, insure a clear and vivid image and video display even direct sunshine light.
