Ultra slim Full Black Color LEDs Rental Led Screen High resolution
Quick Detail:
1. LED Source: SMD2121

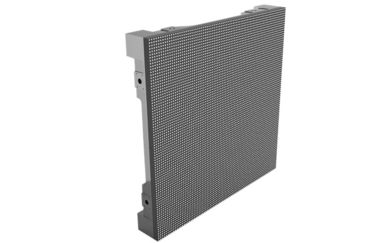

2. LED Module Size: 250mm x 250mm;

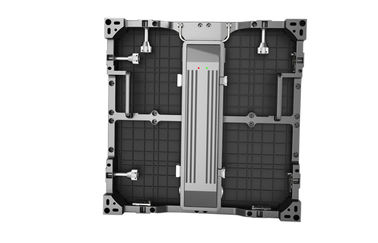

3. LED Cabinet Size: 500mm x 500mm x 100cm;
4, Cabinet Weight: 8kg/cabinet
5. Refresh Frequency: Above 2400HZ;
6. Contrast Ratio:4000:1
Description:

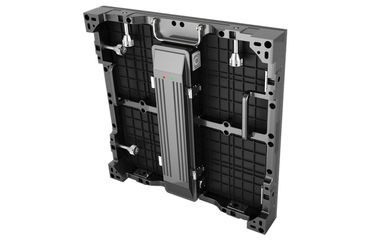

1, Stable: Die casting aluminum structure;
2, High resolution: P3.91 LED panels is being widely choose for indoor rental LED Screens project because of its high resolution;
3, P3.91 indoor LED screens rental is of light weight for hanging up installation;
4, Ultra slim: Rental LED display is designed at 100mm thickness;
5, Fast and easy assembly: 4 set fast lockers equipped on each LED cabinet for seamless connection between cabinets;
6, Indoor rental LED screens P3.91 is cost effective compared with P3 and P3.75 indoor rental LED displays.

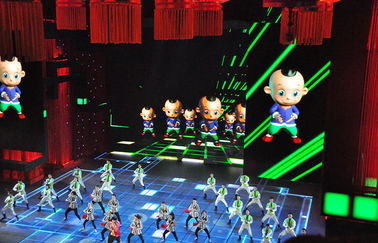

Applications:
Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
Specifications :
| LED MODULE PARAMETER |
| Pixel pitch (mm) |
3.91 |
| Pixel configuration |
3 in 1 |
| Encapsulation |
SMD2121 |
| Colors matches |
6:3:1 |
| Module resolution (pixels) |
64 x 64 |
| Module pixel |
4096 |
| Module size (mm) |
250 x 250 |
| LED CABINET SPECIFICATION |
| Cabinet size (mm) |
500 x 500 x 100 |
| Cabinet resolution (pixels) |
128 x 128 |
| Cabinet pixels (pixels) |
16384 |
| Cabinet material |
Extrusion Aluminum |
| Cabinet weight (kg) |
8kg |
| LED DISPLAY SPECIFICATION |
| Pixel density(pixel/m2) |
65536 |
| Brightness(cd/m2) |
≥1500 (adjustable) |
| Brightness adjusted |
100 grade by software or by Auto-optic induced |
| View angle |
Horizontal 140°; Vertical 140° |
| Best viewing distance (m) |
≥3.5m |
| Communication distance(m) |
<100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m;
Single mode fiber cable ＜ 20km |
| Display work method |
1/16 Scan |
| LED driving method |
Constant driving current |
| Color contrast ratio |
4000:1 |
| Gray Grade |
16bit |
| Display Color |
439, 804, 651, 110 |
| Refresh Frequency (Hz) |
≥1000 |
| Picture display method |
Intellective control technology , test-itself technology , correct technology,
Synchronization Control |
| Input signal |
DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor
converting ) |
| System operating |
WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level |
IP43 |
| Working temperature(ºC) |
-20～+60 |
| Stored temperature (ºC) |
-30～+80 |
| Operation humidity(RH) |
0-95% |
| Display Lifetime(hours) |
10 years or more( natural environment)
100000 hours( ideal environment) |
| Maintenance |
Rear side |
| Working Voltage |
AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot |
≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the
wave length are both >10% depart to the normal one) |
Competitive advantages:
1, Full black color LED chips;
2, Contrast ratio up to 4000:1 to react real color of the content;
3, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
4, Large viewing angle at 140 degree horizontal and vertical;
5, High resolution for indoor rental events that require high quality presentation;
6, PH3.91 indoor rental LED displays is being widely choose becase it would be more fast to earn back investment compared with indoor P4 rental LED screens. .
