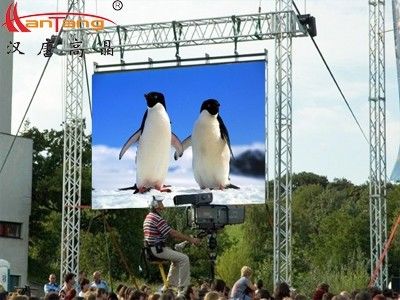

P16mm Virtual Hanging Mobile LED Rental Display For Events
Pixel pitch:10mm,12mm,12.5mm,14mm,16mm,20mm,25mm
Application :billboard,concerts ,stage, events,stadium,advertising ,train station,shopping center,meeting screen ,airport ,mall...
Features:
1, LED rental screen cabinet ultra-light, ultra-thin , simple structure, high compatibility , fast and quick installation, removal, saving time and labor costs.
2, LED rental screen cabinets , easy and convenient to install, low cost of installation; low -Consumption cabinet , save operating costs and reduce labor costs.
3, LED rental screen cabinet is designed with Die-cast aluminum , which is high strength , high toughness , high precision, easily deformed and highly wind resistance
4, High compatibility , the new structure designed to meet the lifting, stacking requirements to meet indoor and outdoor LED display requirements.
5, One cabinet can be installed in a few seconds with high precision, large area arbitrarily assembled .
6, No Screen noise , low power consumption, heat dissipation , high stability
7, According to customer requirements and site environment, tailored to the most suitable LED display rental solutions.
Specification:
| Usage |
Outdoor |
| Pitch(mm) |
16 |
| Pixel Constitute |
2R1G1B |
| LED--Opto+Silan |
R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm)
R:(450-500mcd) G:(1600-1800mcd) G:(350-400mcd) |
| Pixel Density(dots/sqm) |
3906 |
| Module Size(mm) |
256*128 |
| Module Resolution |
16*8 |
| Recommended Minimum Viewing Distance/M |
≥16 |
| Viewing Angle(°) |
V40, H110 |
| Average Power Consumption |
270W/sqm |
| Brightness (white balance) |
≥6500cd/sqm |
| Size of cabinet(mm) |
1024*768*150 |
| Weight of cabinet |
60kg/M2 |
| Cabinet pixels(dot) |
64*48 |
| Frame frequency |
≥60Hz |
| Refresh rate |
≥2000Hz |
| Grey color |
≥16.7M |
| Brightness adjustment |
256 grade manual, 8 grade automatic |
| Average NO failure time |
5000 hours |
| Life span |
100000 hours |
| Working temperature |
-30 °C~+60°C |
| Driving Voltage |
5VDC |
| Working Voltage |
110 to 220VDC |
| Scan Mode |
static |
| Display Function |
Video, Animation, Graphics, other |
| Operating system |
Windows (2000/XP/Vista) |
| Control distance |
CAT5 cable:<100 m; Single fiber:<10 km |
