IP65 PH37.5mm Curtain Outdoor LED Display For Video Flash Animation

Large Image : IP65 PH37.5mm Curtain Outdoor LED Display For Video Flash Animation

Product Details:

Place of Origin:	CHINA
Brand Name:	HANTANG
Certification:	CE,RoHS,C-TICK,ISO.
Model Number:	HTGJ-OF37

Payment & Shipping Terms:

Minimum Order Quantity:	1 Square Meter/Square Meters module
Price:	N/A
Packaging Details:	Plywood case/Flight cases etc.
Delivery Time:	10-20 working days.
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	3000sq.m/month.

Contact Now

Detailed Product Description

Usage:

Outdoor

Pitch:

37.5

Module Size:

300mm×300mm

Control System:

LINSN/NOVA Etc

High Light:

rental led displays

led display signs

IP65 PH37.5mm Curtain Outdoor LED Display For Video / Flash Animation

Pixel pitch:20mm,31.25mm,37.5mm...

Feature:

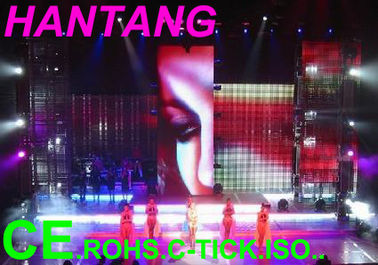

Stage curtain display can easily play all kinds of video, flash animation, it can also play various visualization and lighting changes in brilliant effects, which designed by professional designers to show their endless artistic charm. Full-color display video wall can be composed by multiple modules to display real-time video images with real-time broadcast system. It can produce vivid and clear images

Specification:

Pixel Pitch	37.5mm
Best Visual Angle Horizontal	120deg
Best Visual Angle Virtical	60deg
Brightness	>3,000CD/sqm
Refresh Rate	>200Hz/s
Average Power Consupmtion	25W/sqm
Certificate	CE, CCC, FCC, RoHS, ETL
Grey Scale	>8,192
MTBF	>10,000Hrs
Operating Voltage	AC90~230V
Protection Ratings	IP65
Store Temp	-20°C~50°C
Humidity	10~99%
Module Resolution	8×8
Module Size	300mm×300mm
Physical Density	712pixels/sqm
LED Arrangement	2R1G1B
LED Type	DIP 546
Drive Mode	1/2 Scan
Cabinet Size	600×600×80mm
Cabinet Weight	7KG
