Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Display | Application: | Indoor |
|---|---|---|---|
| Size Of Panel: | 576x576 | Resolution: | 144x144 |
| Brightness: | 1200cm/d | Refresh Frequency: | ≥1200. |
| Type: | Rental | ||
| High Light: | Led Screen Hire,Hd Led Display |
||
P4 mm Indoor Rental LED Display Advertising Full Color LED Screen
Description
Higher cost performance. Lower maintenance cost . Combined with the control system which has more than 14bit processing ,effecting a higher gray level. Red,green and blue LED chips incorporated encapsulation ,better perspective. Strong adaption to environment. More faster to assemble or disassemble it without any tool. It uses SMD2121 LED light, Taiwan Epistar chip and full glass fiber interior heat dissipation thickened ground lead, so that the electricity current and brightness can be adjusted on line, and the grey scale of the message display signs will not be influenced.
specifications
1. Indoor led Display technical parameter
|
Pixel Density(pixel/㎡) |
62500 |
|
White Balance Brightness (cd/㎡) |
≥1200(adjustable) |
|
Max Power Consumption |
300W/cabinet |
|
Average Power Consumption |
150W/cabinet |
|
Color Temperature |
3200-9300(adjustable) |
|
View Angle |
Horizontal 110°；Vertical 80° |
|
Best Viewing Distance(m) |
4m—80m |
|
Display Work Method |
1/16 scan |
|
Digital Processing |
14 bit |
|
Gray Scale |
65536 levels per color |
|
Refresh Frequency (Hz) |
≥1200 |
|
Input Signal |
Video: PAL/NTSC Option: VGA , Video , DVD,TV, |
|
Waterproof |
No |
|
Working Temperature(ºC) |
-20～+45 |
|
Humidity(RH) |
10% - 80% |
|
Stored Temperature (ºC) |
-30～+60 |
|
Lifetime (50%Brightness)(Hours) |
≥100,000 |
|
Input Voltage(VAC) |
AC 220(or 110V) |
|
Input Power Frequency(Hertz) |
50 to 60 |
|
Data Connection |
Super CAT6 Cable or Fiber |
|
Operating System |
Windows(98/2000/XP/Vista) |
|
Blind Spot Rate |
＜0.00001 |
|
Control Distance |
CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
|
Panel Input Format (With Video Processor) |
VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
|
Earth Leakage Current(mA) |
＜2 |
|
Pixel Configuration |
SMD2121 |
Pixel Pitch | 4 mm |
| Module Resolution |
72x72 |
Module Size(W*H) |
288mm x 288mm |
|
Weigth Per Module |
0.7kg |
Max Power Consumption |
50w |

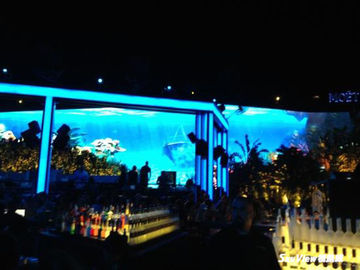

Applications
Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
competitive advantage
1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price.
4. High Quality Driving IC .
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.
