3.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made

3.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made

3.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made
3.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made 3.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made 3.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made 3.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made

Large Image :  3.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made

Product Details:
Place of Origin: Shenzhen China
Brand Name: Skyview
Certification: 3C/GMC/ISO9001/CCPC/CE
Model Number: P3.91
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: Negotiation
Packaging Details: Wooden Case / Flight Case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C
Supply Ability: >300sqm/month
Contact Now
Detailed Product Description
Product Name: LED Display Application: Indoor
Size Of Panel: 250x250 Resolution: 128x128
Brightness: 1200cm/d Feature: Refresh Rate≥800. Red,Green And Blud LED Chips Incorporated Encapsulation,Better Perspective . More Faster To Assemble Or Disassemble It Without Any Tool
Standard: 3C/GMC/ISO9001/CCPC Type: Rental
Highlight:

Stage Led Screen


indoor p3.91mm for rental led display/screen die-casting aluminum low price


Description

Higher cost performance.  Lower maintenance cost . Combined with the control system which has more than 14bit processing ,effecting a higher gray level.  Red,green and blue LED chips incorporated encapsulation ,better perspective. Strong adaption to environment.  More faster to assemble or disassemble it without any tool.


specifications

1. Indoor led Display technical parameter

Pixel Density(pixel/㎡)

65356

White Balance Brightness (cd/㎡)

≥1200(adjustable)

Max Power Consumption

200W/cabinet

Average Power Consumption

100W/cabinet

Color Temperature

3200-9300(adjustable)

View Angle

Horizontal 110°；Vertical 110°

Best Viewing Distance(m)

4m—100m

Display Work Method

1/16 scan

Digital Processing

14 bit

Gray Scale

65536 levels per color

Refresh Frequency (Hz)

≥800

Input Signal

Video: PAL/NTSC  Option: VGA , Video , DVD,TV,
SDI.HDMI etc

Waterproof

No

Working Temperature(ºC)

-20～+45

Humidity(RH)

10% - 80%

Stored Temperature (ºC)

-30～+60

Lifetime (50%Brightness)(Hours)

≥100,000

Input Voltage(VAC)

AC 220(or 110V)

Input Power Frequency(Hertz)

50 to 60

Data Connection

Super CAT6 Cable or Fiber

Operating System

Windows(98/2000/XP/Vista)

Blind Spot Rate

＜0.00001

Control Distance

CAT6 cable:150 meters;  Single Fiber: Up To 10 Kilometers

Panel Input Format (With Video Processor)

VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV

Earth Leakage Current(mA)

＜2


2. Indoor LED Display Module

Pixel Configuration

SMD2121

Pixel Pitch3.91mm
Module Resolution

64x64

      Module Size(W*H)

250mm x 250mm

Weigth Per Module

0.58kg

Max Power Consumption

45w


module pictures

3.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made 0
3. Indoor LED Display Cabinet

Cabinet Size(W*H)

500mm × 500mm

Module Qty

4 pcs

   Cabinet Resolution

128 x 128

Cabinet Area

0.25㎡

Weight Of One Cabinet

8.5 kg

Cabinet Pixel

65536

Cabinet Flatness

＜0.2/㎡

Cabinet Material

Die Casting Cabinet


cabinet pictures
3.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made 13.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made 2
3.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made 3

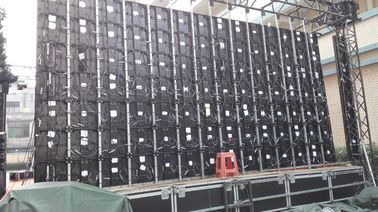

 indoor p3.91 led display aging test in factory
3.91mm SMD LED Display Rental / Indoor Rental LED Screen Custom Made 4
Applications

This Indoor  Full Color LED Display Are Very Popular In Commercial Advertising Field .  such as Community, bus station, schools, telecommunications, customs, stadiums, studio,shopping malls, airports, etc;


competitive advantage


1.  Good Sevice , 24/7 online support service.
2.  Good Quality For Every LED Display Product.
3.  Good Price.
4.  High Quality Driving IC .
5.  Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6.  Two Years  Maintenance Service With  Free.
