8" TFT LCD Industrial Touch Screen Monitor With VGA Multi Language OSD

8" TFT LCD Industrial Touch Screen Monitor With VGA Multi Language OSD

8" TFT LCD Industrial Touch Screen Monitor With VGA Multi Language OSD
8" TFT LCD Industrial Touch Screen Monitor With VGA Multi Language OSD 8" TFT LCD Industrial Touch Screen Monitor With VGA Multi Language OSD

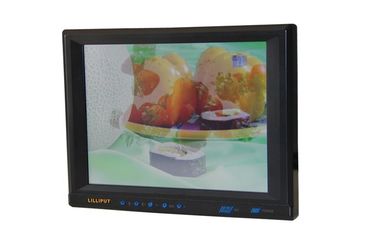

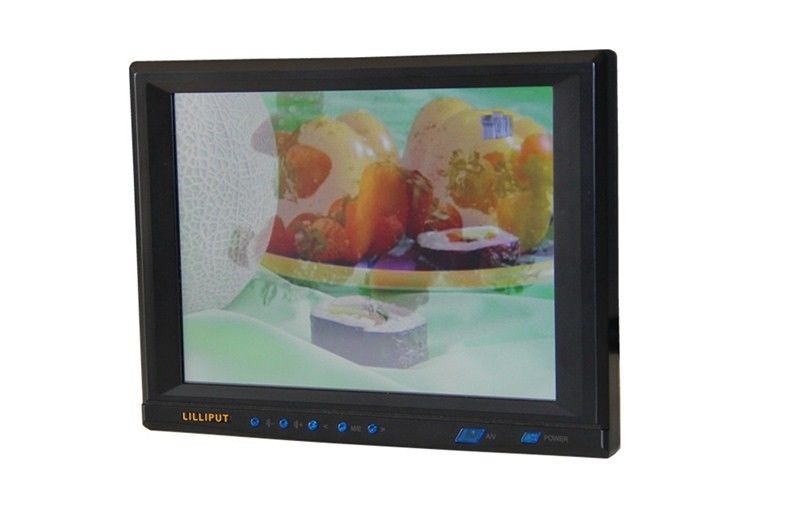

Large Image :  8" TFT LCD Industrial Touch Screen Monitor With VGA Multi Language OSD

Product Details:
Place of Origin: China
Brand Name: LILLIPUT
Certification: CE FCC
Model Number: 859GL-80NP/C/T
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs,also accept sample order
Delivery Time: Sample :within 3 work days;100pcs:7-10 work days
Payment Terms: T/T , L/C , West Union , Paypal
Supply Ability: 10000 Pieces per Month
Detailed Product Description
High Light:

industrial touch screen panel

,

tft touch screen monitor

8" TFT LCD Industrial Touch Screen Monitor With VGA Multi Language OSD





859GL-80NP/C/T 4:3 8" TFT LCD Industrial Touch Screen Monitor With VGA Input

  1. Touch screen control;
  2. With VGA interface, connect with computer;
  3. AV input: 1 audio, 2 video input;
  4. High contrast: 500:1 ;
  5. Built-in speaker;
  6. Built-in multi-language OSD;
  7. Remote control.
Note: 859-80NP/C without touch function.
859-80NP/C/T with touch function.

859GL is a 8 inch TFT LCD monitor with touch screen.
859GL use a high quality new LCD Panel,with 800x600 resolution,
250cd/m2 high brightness and 140°/120°(H/V) wide angle,which
can display clear images.
It uses LED backlight,which has advantage like Energy-Saving,Long life and
environmental protection.



Abundant Interface
859GL-80NP/C/T also has VGA,Audio(1 RCA)&Video (2 RCA) input,which can support many devices like PC, DVR, Camera, DVD and so on.



Speaker Built-in
As the built-in speaker,if there is audio output it does not need to connect external speaker equipment



Specification:



Display Screen 8" LED (4:3)
Resolution 800×600, suport up to 1920 x 1080
Color System PAL-4.43, NTSC-3.58
Touch Panel 4-wire resistive touch panel (5-wire for optional)
Contrast Ratio 500:1
Brightness 250cd/㎡
Viewing Angle 140°/120°(H/V)
Input Signal AV1, AV2, VGA
Audio Output ≥100mW
Input Voltage DC 11-13V
Power Consumption ≤9W
Dimension(LWD) 203 × 156.5 × 35 mm
Weight 505g



Accessories:
VGA Cable: 1 Piece
SKS Cable: 1 Piece
DC 12V Home Power: 1 Piece
12V Car Power Adapter: 1 Piece
Standalone Bracket: 1 Piece
Remote Control: 1 Piece
Touch Pen: 1 Piece
Driver Disk: 1 Piece
Operation Manual: 1 Piece
