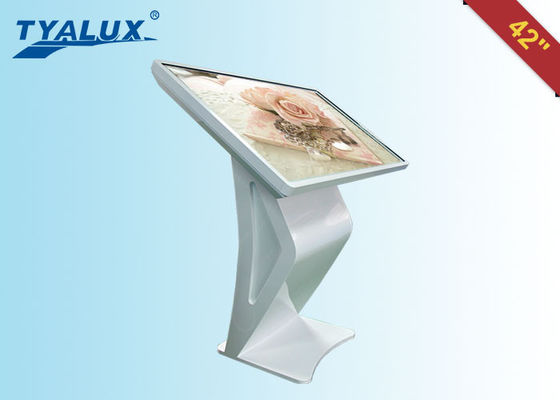

Ultrathin Advertising Touch Screen LCD Interactive Digital Signage for Supermarket
Description:
1. Different software installation, software updating function
2. Touchscreen support
3. Ultrathin and ultra-light hardware case, delicate and beautiful
4. Verity and complete software, stable and reliable
Specifications:
|
LCD panel parameter
|
|
Model Number
|
TYL-TPM42LCX-86
|
|
Panel Size
|
42inch
|
|
Display area
|
930.24*523.26MM
|
|
Brand
|
Lg/Samsung A grade new panel
|
|
Resolution
|
(Full HD)1920*1080P
|
|
Display Color
|
16.7M
|
|
Pixel Pitch
|
0.4835(H)*0.4835(V)mm
|
|
Brightness
|
450cd/m*2
|
|
Back Light
|
LED
|
|
Aspect ratio
|
16:9
|
|
Response time
|
5MS
|
|
Contrast
|
4000:1
|
|
View angle
|
178°/178°(H/V)
|
|
Life time
|
>60,000 hours
|
|
System of signal
|
PAL/NTSC Auto switch
|
|
OSD Language
|
Chinese, English, German, Italian, Spanish, French, Russian, Portuguese
|
|
Signal terminal
|
Video (BNC signal) input ×2
Video out ×1, R&L audio input ×2
R&L audio output ×1, YPBPR input ×1
VGA input(1CH internal,1CH External)
S-VIDEO input ×1, HDMI input ×1
|
|
Control signal
|
Remote control, Microswitch
|
|
Speaker
|
8Ω 5W*2
|
|
Power
|
AC100-240V/50-60Hz
|
|
Max. consumption
|
175W
|
|
Operation condition
|
Temp. 0℃-60℃ humidity 10%-80% (without condensation)
|
|
Store condition
|
Temp. -20℃-60℃ humidity 5%-90%(without condensation)
|
|
Specification for touch screen
|
|
Size
|
42inch
|
|
Type
|
infrared double touch
|
|
Positioning Accuracy
|
±2mms
|
|
Transmittance
|
≥92%
|
|
Hardness
|
7H
|
|
Click Manner
|
double point, multipoint(optional)
|
|
Response time
|
<20ms
|
|
Resolution
|
32767x32767
|
|
Theory of clicks
|
Unlimited
|
|
Embedded PC configuration
|
|
CPU
|
Intel core2 i3
|
|
Main board
|
MSI B75IA-E33
|
|
HDD
|
WD 500GB/5400 revolution
|
|
Memory
|
4GB(Kingston DDR1333MHZ)
|
|
PC I/O Connectors
|
HDMIx2,USBx6,RS232x1,RJ45x1,Audiox2
|
|
Graphic
|
Intel HD Graphics 3000
|
|
Power
|
High-performance independent power
|
Application:
Airport,Finacial ,Metro,shopping mall,supermarket,Public,Hotel,Restaurants,Healthcare,Education,
Government,Retail,Exhibition Halls,Bookstores,Commercial Buildings,Banks,Movie Theaters,Fitness Halls,Massage Rooms,Bars,Beauty Shops,Subways,negotiable securities,gas stations,funds,insurance companies,convention centers,lottery centers,restaurants,travel agencies,exclusive agencies,chain shops,fashion shop,large-scale sales,golf courses,bus & train station,shopping centre,entertaiment bar,cinima and ktv
Why choose Weiguan Views:
1. We have a fully professional team, combining designing, processing, production, can be relatively rapidly transfer customer ideas into products
2. Professional service and honesty based. Reply your inquiry in 8 working hours.
3. Free software
4. Qualified products. All of our product are qualified with CE/ROHS/FCC.
