High Resolution P12 Indoor Rental Led Display Advertising Led Screen , High Contrast

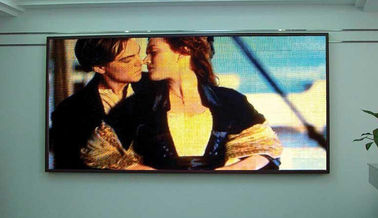

Large Image : High Resolution P12 Indoor Rental Led Display Advertising Led Screen , High Contrast

Product Details:

Place of Origin:	CHINA
Brand Name:	HANTANG
Certification:	CE,ROHS,C-TICK,ISO
Model Number:	HTGJ-IF12

Payment & Shipping Terms:

Minimum Order Quantity:	1/Sq.m
Price:	N/A
Packaging Details:	Carton/Plywood case/freight case
Delivery Time:	10~18days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	3000sq.m/month

Contact Now

Detailed Product Description

Usage:	Indoor	Pitch(mm):	12
Pixel Density(dots/㎡):	6954
Highlight:	indoor led display screen

High Resolution P12 Indoor Rental Led Display Advertising Led Screen , High Contrast

Features:

• uniform colour technology
• Easy configuration and maintenance
• Lightweight for easy installation
• High refreshment and large viewing angle
• Great for large indoor advertising

1. High Contrast:4000:1.

2. First-class LED chip: Epistar from Taiwan

3. Clear vivid image quality even in direct,full-on sunlight.

4. Long-term Brightness capacity throughout product lifetime.
5. Easy Installation & Using.

6.Convenient Servicing.

7. Source compatibility: CVBS,YC, YUV,RGB, DVI, SDI, HD-SDI, HDMI

Technical Parameters of P12 indoor LED display
Usage	Indoor
Pitch(mm)	12
Pixel Constitute	1R1G1B
LED Chips--Opto+Silan	R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:Ⅳ(180-200mcd) G:Ⅳ(330-360mcd) G:Ⅳ(95-105mcd)
Pixel Density(dots/㎡)	6954
Module Size(mm)	384*192
Modules for 1 ㎡(pcs)	13.6
Module Resolution	32*16
Recommended Minimum Viewing Distance(m)	>=12
Viewing Angle(°)	V120, H140
Average Power Consumption	73W/㎡
Brightness (white balance)	>=1800cd/㎡
Refresh rate	>=2000Hz
Average NO failure time	5000 hours
Life span	100000 hours
Working temperature	-20 ℃～+65℃
Driving Voltage	5VDC
Working Voltage	110 to 220VDC
Driving mode	1/8
Display Function	Video, Animation, Graphics, other
Operating system	Windows (2000/XP/Vista)
Control distance	CAT5 cable:<100 m; Single fiber:<10 km
