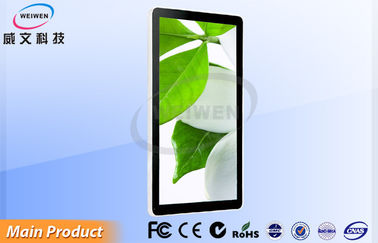

26 Inch Commercial Wall Mounted Digital Signage / Multimedia LCD Video Player HDMI
1. Screen:LG/Samsung/Auo brand,new and A+glass
2. 19” 22” 26” 32” 42” 46” 55” 65” 70” 82” 84”
3. Full screen or split screen.
4. IR remote controller.
5. Storage:USB,SD card,internal flash memory.
6. Auto on/off,auto display in cycle.
7. Free software to split screen to manage ads.
8. With lockable door at USB port.
9. Wall mount bracket / frame.
1. USB or SD card content automatically copy to built in internal memory.
2. Lockable structure.
3. optional color and logo printed.
4. Simple using software,support to split screen with video,picture,scrolling text.
5. IR remote controller for choosing and setting..
6. Wall mounted frame,both horizontal or vertical.
7. Support to rotate the play angel.
8. Auto play time setting.
9. Support to use USB or SD card play directly.
|Main board||HD audio and video decoder chip|
|Decoding resolution||Up to 1080P|
|Play Mode||Support loop playback, timed playback and other multi-player mode|
|Video Player||Support MPEG1,MPEG2,MPEG4,H.264,WMV,TS,MP4 etc.|
|Audio Player||Support MP3|
|Image Format||Support JPEG,BMP,PNG|
|USB2.0 Interface||1PC USB HOST|
|IO Control port||1PC|
|LVDS output||1PC,can directly drive 50/60Hz LCD screen, maximum support 1920x1080|
|Audio outpu||Amplifier output can directly drive 2 * 5W/8Ω Speaker|
|HDMI input||1PC,Standard HDMI Interface|
|VGA input||2PC,A standard VGA port, a VGA socket|
|AV input||1PC,4-wire socket|
|RTC Real-time clock||Support|
|System Upgrade||Support USB updating.|
|Power Input||Switching power supply (with 12V, 5V)|
|Power Consumption||Not more than5W, not connected to the speaker / LCD screen / backlight inverter / USB device|
|Storage Temperature||-40℃～70℃,Recommend 5℃～35℃|
1. Digital LCD screen,new screen from AUO brand,A grade,wide viewing angle, high brightness,high quality.
2.Support SD memory cards,USB drives.
3. Built-in 2 pcs 5W/8Ω stereo speakers
4. Switch on automatically loop playback, support files in mixed,pictures,video,music.
5. Support format:
Video format: MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,DIV,TS,TRP,MKV,MOV,WMV,RM,RMVB
Picture format: JPEG, BMP
Audio: MP3, WMA
moving words: TXT
6. Support OTG copy function,USB file automatically COPY to memory card.
7.Automatic power-on/off,rolling caption,time display,playlists,vertica/horizontal screen,time and volume functions etc... Optional to set split-screen 1 to any area for broadcasting video w/ photo, w/ other display of logo/ date/ weather/ roll-text or subtitles.
8. Image playback: rotate, slide show, background music etc...
9. Support 5 groups of auto power-on/off timer, able to set those 5 groups of time 1 day and 7 days in 1 week.
10. Automatically generate play logs, file playback status query
11. The backplane fastening, easy installation, and with anti-theft lock function.
12.Support the specified file playing in a specific time spo
13. Can be switched on/off by remote control (option)
14. Easy installation, and with anti-theft lock function.
1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations:Telecommunications, post offices, hospital, schools;
4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
5. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
6. Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
1. All the materials are all tested, quality assuranced;We select only branded screen,and all are A grade standard or even A + grade standard panel.
2. We are factory,we have our own production line, we produce independently from producing shells to the whole production process, more convenient and comprehensive for quality controlling.
3. We could customize and do OEM/ODM service for our customers, according to customers’ design and requirements.
4. We have a fully professional team, combining designing, processing, production, can be relatively rapidly transfer customer ideas into products.
5. Our first-class service team, able to "we worry what customer worry, think what customers think," and to help all customers to solve all the worries.
