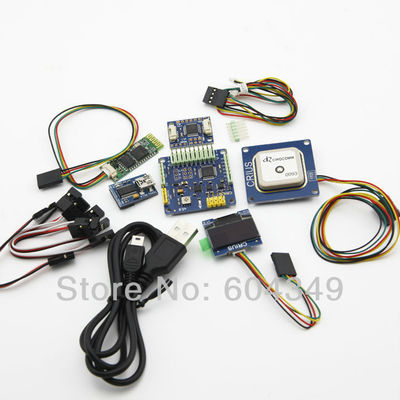

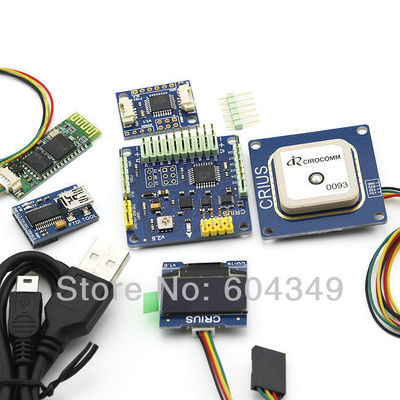

MWC MultiWii SE V2.5 Control Board W/ GPS NAV Receiver Combo for 3D FlightMWC MultiWii SE V2.5 Control Board W/ GPS

Features:
 • Small size,35x35mm mounting holes
 • 6 PWM input channels for standard receiver or PPM SUM receiver
 • Up to 8-axis motor output
 • Supported 2-axis gimbal and auto trigger controll
 • FTDI/UART port for upload firmware, debug, Bluetooth module or LCD display
 • I2C port for extend sensor, I2C LCD/OLED display or I2C-GPS NAV board for GPS and Sonar
 • Ultra low noise 3.3V LDO voltage regulator
 • ATMega 328P Microcontroller
 • MPU6050C 6 axis gyro/accel with Motion Processing Unit
 • HMC5883L 3-axis digital magnetometer
 • BMP085 digital pressure sensor
 • PCA9306DP1 logic level converter

Other
 • Dimension: 40mmX40mm
 • Height: 11.6mm
 • Weight: 9.3g
 • Fixing hole spacing: 35mm (It can be changed to 45mm by CRIUS Distribution Board)
 • Hole diameter: 3.1mm

NEO-6 V3.0 GPS NEO-6M Module for APM MWC Pirot Rabbit Flight Controller

Features:
- U-blox NEO-6M GPS module
- 5Hz update rate
- 32k I2C EEPROM for save configuration
- Build in 25 x 25 x 4mm ceramic patch antenna
- LNA and SAW chip
- 3.3V LDO low noise regulator
- UART (TTL) port with EMI protection
- 3V lithium Rechargeable battery
- Power and fix indicator LEDs
- Reverse polarity protection for input power

Default parameter
-Standard NMEA protocol
- Baud rate : 9600
- Nav rate : 1Hz
- TIMEPULSE (fix LED) rate : 1Hz

Other
- Dimension: 40 x 40 x 9mm
- Weight: 16.4g/18.6g (include cable)
- Hole diameter: 3.1mm

I2C-GPS NAV Module
Features:
·All GPS data available via the I2C bus to connect to 328P Multiwii FC
·A LED on board show GPS 3D Fix status
·ATMega 328P Microcontroller
·2 Molex 1.25mm 4Pin socket for GPS receiver and FC
·2 port for ISP and FTDI
Other
·Dimension: 20mmX30mm
·Height: 5mm
·Weight:2.4g/5g(include cable)
·Hole diameter: 3mm
CRIUS CO-16 OLED Display Module

• MWC Multiwii Bluetooth parameter debug module /  Bluetooth adapte




Features:
·For Multiwii FC Configuration use with Android MultiWiiConfiguration
·UART TTL socket
MultiWiiConfiguration function
·Read and Write PID
·Setting switch for AUX1 and AUX2
·Monitor receiver signal and FC output signal
·Monitor All sensors and GPS signal
·Cablibration Magnetometer and Accelerometer
·Save and read profile
Default parameter
·Baudrate : 115200
·Module name : CRIUS_BT
·Pair code : 0000
Other
·Dimension: 15mmX37.5mm
·Height: 5mm
·Weight:2.2g/3.9g(include cable)
·Hole diameter: 3mm

Features:
- High brightness, self-emission, high contrast ratio
- monochrome 128×64 dot
- 5V I2C interface
- Used for telemetry and debug MultiWii FC.
- Dimension: 27mmX27mm
- Height: 6.5mm
- Weight:3.7g/4.9g(include cable)

• FTDI USB-TTL

  This is a basic breakout board for the FTDI FT232RL USB to serial IC.  The pinout of this board matches the FTDI cable to work with official  Arduino and cloned 5V Arduino boards. It can also be used for general  serial applications. The major difference with this board is that it  brings out the DTR pin as opposed to the RTS pin of the FTDI cable. The  DTR pin allows an Arduino target to auto-reset when a new Sketch is  downloaded. This is a really nice feature to have and allows a sketch to  be downloaded without having to hit the reset button. This board will  auto reset any Arduino board that has the reset pin brought out to a  6-pin connector.

  Download the manual: MWC Combo Manual

•
