Product Details:
Payment & Shipping Terms:
|
| Input: | HDMI, USB, RJ45 | Mode: | Landscape / Vertical Screen, Optional |
|---|---|---|---|
| OTG: | Support Copy, Delete, Remove, Rename, Build New File Among Different Cards | Color: | Multi Color Are Available |
| Material: | High Grade Metal Frame, Temperate Glass Panel | Power Supply: | AC100-240V, 50/60HZ |
| Version: | Stand Alone | ||
| High Light: | retail digital signage,standalone digital signage |
||

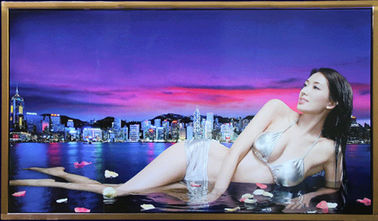

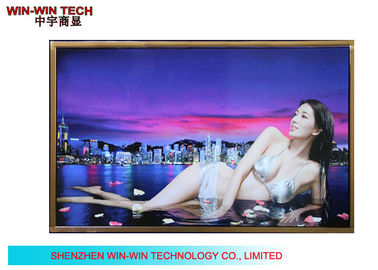

Narrow Side Indoor Stand Alone Digital Signage For Shopping Mall
Quick details:
Specifications:
|
Technical Parameter for |
Panel Size |
47 inch TFT LCD |
||
|
Aspect Ratio |
16:9 |
|||
|
Active Area |
1044(W)×588(H) |
|||
|
Visual angle |
V:178° , H:178° |
|||
|
Max. Resolution |
1920 x 1080 |
|||
|
Dot Pitch |
0.76125(H)x0.76125(V) |
|||
|
Number of Color |
16.7M |
|||
|
Brightness |
600cd/m2 |
|||
|
Contrast Ratio |
3000:1 |
|||
|
Responsive Time |
6ms |
|||
|
Panel Life |
above 60000 hours |
|||
|
Touch Panel |
Touch technology |
Two point, multi points touch |
||
|
Light transmittance |
100% |
|||
|
Physical resolution |
1000x1000 |
|||
|
Touch media |
Finger/touch pen opaque objects |
|||
|
Response time |
≤10ms |
|||
|
Click life time |
≥60 M times |
|||
|
power |
1W |
|||
|
Max current |
<350 MA |
|||
|
Storage Medium |
Flash memory card, SD Card |
2gb to 36gb for the capacity |
||
|
Support Ad files |
Video formats |
MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: |
||
|
Audio formats |
MP3 |
|||
|
Photo formats |
JPEG/BMP/TIFF/PNG/GIF |
|||
|
OSD Language |
English, Chinese, French, German, Italian, Spanish,Arabic |
|||
|
Audio output |
stereo L/R, 5W*2, 8Ω |
|||
|
Power supply |
AC 110V - 240V, 50/60HZ |
|||
|
Storage Temperature |
-7 to 65 Celsius degree |
|||
|
Normal Working Temperature |
-5 to 65 Celsius degree |
|||
| Warranty | 1 year | |||
| Maximum power consumption | 220W | |||
|
PC Specification |
CPU |
Intel G2020/2.9GHZ/ Dual core |
|
|
RAM |
DDR3.2GB |
|
|
HDD |
S-Atall 500GB/16MB/5400rpm |
|
|
Graphics |
Inter NM10Express |
|
|
Chipset |
INTEL 5400 |
|
|
Ports |
5xUSB, 1xVGA, 1XLAN, 1XAUDIO-OUT, 1XMIC-IN, DVI, HDMI |
|
|
Power consumption |
30W |
|
|
Operating system |
Windows 8 / 7 |
|
|
Speaker |
2*10W |
Description:
1. With lockable door to avoid take away flash memory card and advertising playing program.
2.Professional bracket sets are available for easy installation on wall.
3. Stand alone version, play mp4 movie, mp3 music and digital photos; Play from CF card, SD card and
USB drive.
4. Built-in superior quality stereo speakers, 3W *2.
5. Support 5 groups of auto power on / off timer, be able to set those 5 groups of time one day and 7
days in one week.
6. The products pass the national mandatory 3 c authentication, and has the national high and new
technology enterprise development of the software copyright certificate.
7. Support Automatic power on/off, can set the working days, to support electronic clock and
date function;
8. Outer Shell is made of extra good quality metal material, which is painted by power-spray craft work.
9. Adopts high transparent tempered glass (2-10 mm ) as protection layer to prevent lcd/led panel being broken or distorted.
11.Support set up 7 days a week , also support set up according to the daily management.
12.support video display customized LOGO, and support video to show in the irregular shape.
13. Imported brand full HD LCD panel, clear and bright picture quality, more lower power consumption.
Application fields:
1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops,
large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,
5. stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
6. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
7. Entertainments: Movie theaters, fitness halls
Our products advantage:
1.We promise 100% full new brand A+ LCD panel, generally speaking adopt LG, Samsung,it owns
long use life and good visual effect.
2. We have English after-sale service engineers provide after sales service by English directly, all the problems can be solved in
time.
3. We have our own outer shell&enclosure factory to accept OEM&ODM design order, quite experienced in
customized item for client
