Payment & Shipping Terms:
LCD advertising player,
mirror tv screen

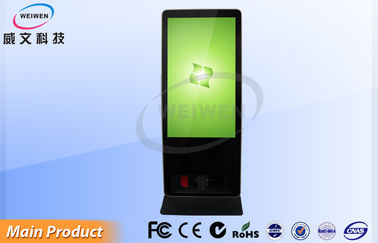

Multi Touch Screen Interactive LCD Digital Signage Display for Shopping Mall / Hotel
1. Auto on/off,auto display in cycle.
2. Free software to split screen to manage ads.
3. IR remote controller.
4. 19” 22” 26” 32” 42” 46” 55” 65” 70” 82” 84”.
5. Storage:USB,SD card,internal flash memory.
6. Screen:LG/Samsung/Auo brand,new and A+glass
7. With lockable door at USB port.
8. Full screen or split screen.
9. Floor stand bracket / frame.
1. Simple using software,support to split screen with video,picture,scrolling text.
2. Support to rotate the play angel.
3. optional color and logo printed.
4. IR remote controller for choosing and setting.
5. Optional wheels.
6. Support to use USB or SD card play directly.
7. Auto play time setting.
8. Lockable structure.
9. USB or SD card content automatically copy to built in internal memory.
|CPU||AllWinner A20 , Dominant frequency 1.0 - 1.5GHz|
|Rom||NAND FLASH 4G(Optional)|
|Pixel Format||Up to 1080P|
|Play Mode||Repeat,Timing,Insert Play and so on|
|Network||3G,Ethernet,Wifi,and other wireless device extended|
|USB 2.0 port||USB host x 2,USB Jack x 2|
|Serial port||2 JACK|
|SATA port||SUPPORT SATA HDD|
|LVDS||DUAL 8 bit LVDS|
|HDMI||HDMI V1.4, SUPPORT 1080P|
|Media Output||SUPPORT CVBS VIDEO OUTPUT,LEFT RIGHT AUDIO OUTPUT, DAUL CHANNEL 4R/6W,8R/3W AMPLIFIER|
|SYSTEM UPGRADE||SUPPORT USB AND NETWORK UPGRADE|
1. Using Allwinner A20 multimedia HD network multimedia decoder chip,the system platfor is based on Android 4.2 OS or above.Can replace entertainment functions of the desktop PC,platfor with standardized,open vantages.
2. Platfors and configurations:
Hardware platfor:ARM Cortex-A7 processor;
Software platfor:Based on the Android operating system;
Flash memory:NAND 4GB.
3. Support a number of different templates scenes,multiple task package looping.
4. Support HD resolution 1920*1080,1080P HD video and photo playback;built-in HDMI 1.3 support 1080P and 3D output.
5. Full HD video format playback,compatible with a variety of playback formats:
Audio:MP3,WMA,WAV,EAAC+,MP2 dec,Vorbis (Ogg),AC3,FLAC (lossless audio),APE(lossless audio),BSAC;
6. Support Web/Flash palyer,with Web/Flash touch interactive functions,there could be strong touch function interactive platform applications.
7. Strong input function:
Support multi-touch,optical,acoustic,resistors,capacitors and infrared touch screen,with touch screen calibration function.
Support infrared remote control input;
Support USB mouse/keyboard input;
Support camera/microphone input;
Support ID card/swipe credit card reader,keyboard password and other equipment input.
8. Strong output function:
Support 2 display modes white boot up---vertical and horizontal screen;
Support LVDS/HDMI/VGA/AV output power switch freely;
Support 1080P HD point output;
Support the printer device output.
9. More storage media support:support SD card,SATA hard drive.
10. Multi language:
Support Chinese, English, Spanish, Russian, German, French, Arabic, etc. for most countries,TTF vector font support no distortion shows.
11. Timer setting:
Help to save energy and prolong it’s wervice life;after setting the time,the entire system is automatically started at boot time,And stop funning then enter shutdown automatically while shutting down.With shutting down mode,the device does not respond to external operations,does not come output with any audio or video signals.
12. Rolling text:The rolling text will be showed at the bottom of the screen while playing video advertisement.
13. Clock display:Built in clock IC,can automatically update the time information after connecting to network,automatically correcting system time.
14. Weather:Can automatically update the weather after connecting to network.
15. Split screen display:
Support 1080P video,pictures,subtitles,time,weather,Web/Flash etc freely split screen function.
16. Support remotely reboot,remotely shutdown,remotely screenshots,remotely delete material function.
17. Support powerful network:Lan/Wifi/3G.
18. With system desktop or any other applications,the advertisements and rolling text can be suspension at the front of any place of the display.
19. B/S architecture,a strong backgroud server mamangement software supporting,you can set up online advertising machine parameters,create playlists issued online,real time/timing download servers commercials source,downloaded automatically display.
20. Powerful cloud network platform,administrators at any place as long as loging account via the Internet,can manage all the terminals,we are the first in the industry to provide server rental model manufacturers,reducing the annoyance and expense from self-built server for end-user.
1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations:Telecommunications, post offices, hospital, schools;
4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
5. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
6. Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
1. All the materials are all tested, quality assuranced;We select only branded screen,and all are A grade standard or even A + grade standard panel.
2. We are factory,we have our own production line, we produce independently from producing shells to the whole production process, more convenient and comprehensive for quality controlling.
3. We could customize and do OEM/ODM service for our customers, according to customers’ design and requirements.
4. We have a fully professional team, combining designing, processing, production, can be relatively rapidly transfer customer ideas into products.
5. Our first-class service team, able to "we worry what customer worry, think what customers think," and to help all customers to solve all the worries.
