large format touch screen monitor

Large Format touch screen monitor

Competitive and advantage:
Sound:To adopt advanced IC, general power 45W of pure dual track stereo system with high-pitched and bass; to settle the problem of noise and distortion; To enjoy professional super and perfect sound voice.
Workmanship:Elegantly design mold with outstanding features: clean outlook, no Deformation, no rust, toughened glass; aluminium-alloy frame; Built-in anti vibration. Those features are really suitable for movable players.
Electrical source:Wide electrical voltage in the design; dual voltage stabilizing circuit module; the player is able to work normally no matter how electrical voltage changes. We settle the key technology of movable electrical sources .

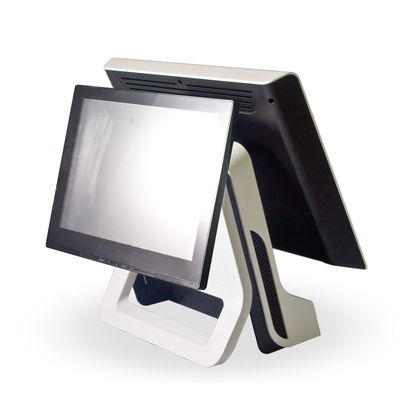

Mutli touch points LCD Touch Screen Monitor with Android

  • Mutli touch points LCD Touch Screen Monitor with Android
  • Mutli touch points LCD Touch Screen Monitor with Android

Mutli touch points LCD Touch Screen Monitor with Android


Description:

  • Touchable WIFI AIO with android system is equipped with Rockchip-3188 quad core chip

  • Brings you an excellent experience of vision and audition.

  • You can enjoy games, videos and music with it.

  • It is fitted with HD LED digital screen (1920*1080).

  • 10 points capacitive touch gives you extraordinary experience, and all mirror tempered glass is fashionable and upscale.

  • Front-set camera with 200W pixels is ready to frame at any time.

  • It supports applications download of android system and Internet connection like WIFI, external 3G network card and RJ45 netting twine.

  • It also support flash memory disk and mouse connection.

  • It is with a wall mount hole and supports international standard VESA 75*75 mm.

    General Specifications:



Config

CPU

Cortex A9, Quad core, 1.6G

RAM

1G

Flash Memory

8G

Operating System

Android 4.2

Touch Screen

10 points capacitive touch screen



Display

Display Plane

21.5’’ LCD screen

Resolution Ratio

1920x1080

Contrast Ratio

1000:1

Brightness

250nits

Aspect Ratio

16:9


Internet

WiFi

802.11b/g/n

Bluetooth

Available

3G

3G USB Dongle, extended

Ports

Ports

SD

SD card, (Support 32G Max.)

Mini USB

USB OTG

USB

USB 2.0

DC jack

DC input

Headphone jack

3.5mm headphone jack

Media Format

Video Format

MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV etc., support up to 1080p

Audio Format

MP3/ WMA/ AAC etc.

Image Format

jpeg, jpg

Other Supports

Wireless Mouse

Support

Wireless Keyboard

Support

Loudspeaker

2x5W

Camera

Front-facing camera, 200W pixel

OS Language

English (default) and multi

Software

Android App

Accessories

User Manual

Yes

Power Adaptor

Yes

USB Cable

Yes

Packaging, (unit:mm)

Machine size

Color box

Carton 4pcs/CTN

L

W

H

L

W

H

L

W

H

538

331

37

600

120

425

612

385

440

Net(KG)

3.5KG

Net(KG)

4.5KG

Net(KG)

18KG



G.W.(KG)

19KG

 Mutli touch points LCD Touch Screen Monitor with Android

Features

1. Application fields:public or private places as buyers like.

2. Water proof and dustproof level:IP55.(This item is only applied to outdoor monitors.)

3. Compared with normal outdoor monitors, it’s deviced with all kinds of monitor interfaces
one can imagine,such as VGA,
HDMI,AV,USB etc.

4. Outer shell is made of extra good quality metal material, which is painted by powder-spray craft work.

5. Support shockproof and dust proof function.

6. Adopts high transparent tempered glass (2-6 mm ) as protection layer to prevent lcd/led panel being broken or distorted.

7. Locking system for anti-thieves, prevented the storage devices from being broken or distorted.


We guarantee that we offer you the competitve price in the market but with the high quality!!
Welcome customized order from you , any special order is negotiable!!
We are glad to cooperate with you!!
If you are interested in our products, please contact with us, thank you!!

10.4 inch LCD Industrial TFT Touch Screen Monitor With LED Backlight

  • 10.4 inch LCD Industrial TFT Touch Screen Monitor With LED Backlight
  • 10.4 inch LCD Industrial TFT Touch Screen Monitor With LED Backlight

10.4 inch LCD Industrial TFT Touch Screen Monitor With LED Backlight





10.4 inch TFT LCD Industrial Touch Screen Monitor FA1042-NP/C/T

Introduction:
FA1042-NP/C/T is a 10.4 inch TFT LCD monitor with touch screen.
FA1042-NP/C/T use a high quality new LCD Panel,with 800x600 resolution,
250cd/m2 brightness and 140°/110°(H/V) wide angle, which
can display clear images.
It uses LED backlight,which has advantage like Energy-Saving,Long life and
environmental protection.



VGA & Video & Audio Interface
FA1042-NP/C/T has VGA,Audio(1 RCA) & Video (2 RCA) input,which can support many devices like PC, DVR, Camera, DVD,HD Video Player and so on.


Speaker Built-in
As the built-in speaker,if there is audio output it does not need to connect external speaker equipment



Folding Bracket
Possible to stretch & folding
Wall Mount possible



Specification:

Description 10.4 inch TFT LCD Touch Screen Monitor
Signal Input VGA x 1 / Video x 2 / Audio x 1
LCD Size 10.4 inch
Resolution 800 x 600
Touch Panel 4-wires resistive (USB Touch as standard) Optional: RS232 Touch Interface
Backlight LED
Dot Pitch 0.088(W) x 0.264(H) mm
Active area 211.2(W) x 158.4(H) mm
Color System PAL-4.43,NTSC-3.58
Brightness 250cd/m2
Contrast 500:1
Aspect Ratio 4:3
Viewing Angle 140°(H) / 110°(V)
Voltage DC11-13V
Power consumption ≤13w
Speaker x1(Built-in backside)
Audio output ≤1w
Work temperature -20~60℃
Store temperature -30~70℃
Size(mm) 252L x 216W x 73H(Folding)
252L x 185W x 267H(Unfolding)
Weight 1500g
Support OS(Touch Driver) Windows XP / Windows Vista / Windows 7 (32 bit & 64 bit) / Windows 8 (32 bit & 64 bit) / WinCE 6.0 / Linux Kernel 2.4 / Linux Kernel 2.6
Warranty Time 12 months



Package Content
Monitor x 1pcs
VGA Cable x 1pcs
Audio Signal Cable(Black) x 1pcs
Audio Signal Cable x 1pcs
Video Signal Cable(Yellow and Buff) x 2pcs
Remote Control x 1pcs
DC 12V Home Power x 1pcs
Touch Pen x 1pcs
Touch Driver CD x 1pcs
Manual x 1pcs





Package Info:

Package Size35 x 33 x 16 cm (1pcs/Box)

Package Weight2.8 KGS (1pcs/Box)

Package Volume Weight4 KGS (1pcs/Box)

Carton Size69 x 37 x 35 cm (5pcs/Carton)

Carton Weight12.9 KGS (1pcs/Carton)

Carton Volume Weight18 KGS (5pcs/Carton)



10.4 inch LCD Industrial TFT Touch Screen Monitor With LED Backlight10.4 inch LCD Industrial TFT Touch Screen Monitor With LED Backlight

High Contrast 15" Industrial Touch Screen Display With HDMI DVI VGA Input

  • High Contrast 15" Industrial Touch Screen Display With HDMI DVI VGA Input
  • High Contrast 15" Industrial Touch Screen Display With HDMI DVI VGA Input

High Contrast 15" Industrial Touch Screen Display With HDMI DVI VGA Input


Application:

KIOSK / POS machine
Transportation machine
Ticketing machine
Financial ATM Entertainment

Gaming machine
HMI equipment controller monitor
Public communication machine Public advertisement machine

Structure:
Lilliput LED industrial touch monitor series that supports rear mount (open frame) and VESA 75mm/100mm standard  mounting with integrated bracket, a bezel-less design with slim and firm features making efficient integration
into any  embedded display applications.

Appearance:
Lilliput LED industrial touch monitor series that supports rear mount (open frame) and VESA 75mm/100mm standard  mounting with integrated bracket. metal housing & bezel-less design with slim and firm features making efficient integration into any  embedded display applications.


Lilliput 15“ Industrial Touch Monitor Open frame design for optional.
Industrial touch monitor series for embedded display solutions.
Note: TK1500-NP/C without touch function.
           TK1500-NP/C/T with touch function.

Display:

15" LED display panel with 1024×768 native resolution, viewing area much bigger than 10.1" display.

DISPLAY

  Panel

  15"  LED backlit

  Physical Resolution

  1024×768

   Touch Panel

  5-wire resistive

  Aspect Ratio

  4:3

  Brightness

  300cd/m2

  Contrast

  1500:1

  Viewing Angle

  170°/170°(H/V)

INPUT

  HDMI

  1

  DVI

  1

  VGA

  1

  USB

  1 (for touch function)

  Audio (BNC)

  1

  Video (BNC)

  1

POWER

  Current

  1200mA

  Input Voltage

  DC 12V

  Power Consumption

  ≤15W

ENVIRONMENT

  Operating Temperature

  -20~60

  Storage Temperature

  -30~70

DIMENSION

  Dimension(LWD)

  402×289×45.5mm
  400×279×43.5mm (open frame)

  Mounting Method

  VESA 75mm / 100mm, rear mount

  Weight

  3.2kg / 2.8kg (without touch panel)


High Contrast 15" Industrial Touch Screen Display With HDMI DVI VGA Input

2014 DesirePOS Reataurant POS Machine with 15 Inch LCD Touch Screen Monitor

  • 2014 DesirePOS Reataurant POS Machine with 15 Inch LCD Touch Screen Monitor
  • 2014 DesirePOS Reataurant POS Machine with 15 Inch LCD Touch Screen Monitor
  • 2014 DesirePOS Reataurant POS Machine with 15 Inch LCD Touch Screen Monitor

2014 DesirePOS Reataurant POS

Machine with 15 Inch LCD Touch Screen Monitor

All-in-one POS Terminal Solution

Flat Touch Screen

Intel Duo Core Processors

Combination of multi-color

Fanless System

Versatile Combination

Industrial circuit and components designed

Splash-resistant

Wires resistive touch

Specification

System:
CPU SupportIntel atom dual-core D525 1.8GHz CPU
Intel Core 2 Duo 1.83G T5600
Intel IVY and sandy Bridge Intel® Core i5/i3 Dual Cores CPU
MemorySupports up to 4GB DDR3
Core LogicIntel NM10/945GM/HM76
Network10/100/1000 Base-T fast Ethernet
Power Supply12V power adapter
System Weight9kgs
Dimensions(W) 380 x (H) 370 x (D) 190mm
OSMicrosoft Windows XP/XPE, WEPOS, POSReady 2009, 7 and 8
(Ivy platform only)
Storage:
HDD1 x 2.5" SATA HDD
SSDMLC SATA interface 16/32/64GB
Display:
LCD15" TFT LCD panel
Maximum Resolution1,024 x 768 pixels
Brightness250 nits
Touch Screen5-wire resistive touch panel

I/O Ports

USB7 ports, 3 internal (one reserved for touch screen) and 4 external.
Serial Ports6 x COM ( w/ +5V, +12V selectable ), 2 internal and 4 external.
PS/21 x PS/2 keyboard port
LAN1 x 10/100/1000 Mbps (RJ45)
VGA1 x DB-15 VGA Interface
Parallel1xDB25
AudioAC'97 Codec Audio
Cash Drawer1xRJ11
DC-IN12V DC-IN
Power Switch1 x Power Switch

Peripheral Options

PrinterTP-260
Customer DisplayVFD Type: 20 columns x 2 lines, each column 5x7 dots
LCD Type: 8", 10" or 15" LCD
MSRJIS-I or II, ISO Track 1/2/3
USB (default)
i-buttonRead only, USB interface
ColorWhite/Red/Dark Grey
FingerprintFingerprint module (USB HID interface)
RFIDISO 14443A, UrtraLight, Mifare PRO, DESfire
Desire pos.jpg


Application:

most in the supermarket, Wal-Mart, bank, hospital, hotel, reataurant and so on...


4






High Resolution LCD Portable USB Touch Screen Monitor / Multi Touch Display

  • High Resolution LCD Portable USB Touch Screen Monitor / Multi Touch Display

High Resolution LCD Portable USB Touch Screen Monitor / Multi Touch Display​





Product Feature:
Touch & Play
Just Suit Yourself
NOT DC power, just USB Powered
NOT VGA input, just USB Input
4-Wire Resistive Touch Screen
USB Device Interface



Note: The UM-1010/C without touch function,
The UM-1010/C/T with touch function.

One cable does it all!
Innovation USB-only connection-add monitors without adding clutter!

A USB Powered Touch Screen Monitor as Multiple Input/Output Device for Video Conference, Instant Messaging, News, Office applications, Game map or toolboxs, Photo Frame and Stock Casting, etc.



How to use it?

Installing Monitor Driver (AutoRun);
Click on display setting icon on system tray and see the menu;
Setup menu for Screen Resolution, Colors, Rotation and Extension, etc.
Monitor Driver supports OS: Windows 2000 / Windows XP (32bit,64bit) / Windows Vista (32bit,64bit)/ Windows7(32bit,64bit) / Mac OS X



What can you do with it?

UM-1010/C/T has thousands of useful and fun applications: keep your main display clutter free, park your Instant Messaging windows, keep your application palettes on it, use it as a digital picture frame, as a dedicated stock ticker display, put your gaming maps on it.
UM-1010/C/T is great for use with a small laptop or netbook because of its light weight and single USB connection, it can travel with your laptop, no power brick needed!



General Productivity
Outlook/Mail, Calendar or Address Book applications up all the time View Widgets for To-do's, Weather, Stock Tickers, Dictionary, Thesaurus, etc.
Track System Performance, Monitor Network Traffic, CPU cycles;



Entertainment
Have your media player up to control entertainment Quick access to important toolboxes for online gaming Use it as a secondary display for computers hooked up to TVs Run a 2nd or 3rd display without the need for a new graphics card;



Social
SKYPE/Google/MSN Chat while using other full screen applications Watch for Friends on Facebook and MySpace Keep your Twitter Client up all the time but off your main work screen;



Creative
Park your Adobe Creative Suite application toolbars or controls Powerpoint: keep your formatting palettes, colors, etc. on a separate screen;



Business (Retail, Healthcare, Finance)
Integrate into point-of-purchase or point-of-registration process. Cost-effective method to have multiple consumers/customers register, enter information, and authenticate. Use one computer for multiple users (with virtualization software – not included);



Shopping
Monitor online auctions



Panel 10.1" LED backlit
Touch Panel 4-wire resistive (5-wire for optional)
Physical Resolution 1024×600 pixels
Aspect Ratio 16:9
Brightness 250cd/㎡
Contrast 500:1
Viewing Angle 140°/110°(H/V)
USB interface 1
Current 1200mA
Input Voltage USB (DC 5V)
Power Consumption ≤6W
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
Mounting Process Standard VESA Sockets
Dimension(LWD) 253.5×162.5×34 / 61 mm (with bracket)
Weight 1004g



Accessories:
USB Cable: 1 Piece
Driver Disk: 1 Piece
DC Adapter: 1 Piece
Touch Pen: 1 Piece
Operation Manual: 1 Piece



High Resolution LCD Portable USB Touch Screen Monitor / Multi Touch DisplayHigh Resolution LCD Portable USB Touch Screen Monitor / Multi Touch DisplayHigh Resolution LCD Portable USB Touch Screen Monitor / Multi Touch Display



Museum 21.5" Stand Alone HD Transparent LCD Display Box / Touch Screen Kiosk

  • Museum 21.5" Stand Alone HD Transparent LCD Display Box / Touch Screen Kiosk
  • Museum 21.5" Stand Alone HD Transparent LCD Display Box / Touch Screen Kiosk
Museum 21.5" Stand Alone HD Transparent LCD Display Box / Touch Screen Kiosk


Detailed Product Description
Application: Indoor Size Of Panel: 21.5 Inch
Product Name: LCD Digital Signage Display Resolution: 1920X1080
Brightness: 300cm/d Feature: TFT, Touch Screen Kiosk
Standard: CE/ROHS/FCC/SGS Color: Silvery, White, Black, Golden, Optional
Vertion: Stand Alone


21.5" Stand Alone HD Transparent LCD Box , Museum LCD Transparent Display

Specifications:



Technical Parameter for

22Inch LCD Panel



Panel Size

21.5 inch TFT LCD

Aspect Ratio

16:9

Active Area

474.8(W) * 297.1 (H)

Visual angle

Wide viewing angel

Max. Resolution

1920 x 1080

Dot Pitch

 0.3300H) x 0.3300 (W)mm

Number of Color

16.7M

Brightness

300cd/m2

Contrast Ratio

4000:1

Responsive Time

6ms

Panel Life

above 60000 hours

Storage Medium

Flash memory card, SD Card

2gb to 36gb for the capacity





Support Ad files



Video formats

MP4(AVI:DIVX/XVID),

MPG2(DVD:VOB/MPG2),

MPEG1 (VCD: DAT/MPG1)

Audio formats

MP3

Photo formats

JPG

OSD Language

English, Chinese, French, German, Italian, Spanish,Arabic

Audio output

stereo L/R, 5W*2, 8Ω

Power supply

AC 110V - 240V, 50/60HZ

Storage Temperature

 -7 to 65 Celsius degree

Normal Working Temperature

 -5 to 65 Celsius degree



Description:



The inside exhibit can be seen while the pictures or videos are displayed on LCD screen. To attract customer's attention on product brand with the combination of dynamic information and the actual product display. sumward Transparent Video Showcase can be used in many applications: Jewelry, Gem Stone, Watch, Wine bottle, Cosmetics, Perfume set, Digital Camera, IPad/Mac book, Hand bag, High heel, and Museum Craft,  etc.
Lcd touch screen all in one PC kiosk made from original Samsung/LG screen.It integrates electronic technology,computer technology, display technology, hardware and software control technology together.  It covers



    1. The products pass the national mandatory 3 c authentication, and has the national high and new technology
     2. enterprise development of the software copyright certificate.
     3. You can set rolling caption and LOGO on the display, rolling caption is showed at the bottom of LCD Screen in the advertisement  program.
    4. Plug in CF card/SD card/USB(pen drive/U-disk) with advertisement inside, our machine will play the advertisement automatically and do cycle play.
    5. Upgrade contents of the memory card (or built - in memory) by simple inserting an USB flash drive, no need to take out to the memory card.
     6. Built in clock and calendar function in the system of player.
     7. Brands of LCD screen for Samsung, LG, Chime, HSD, AU, Toshiba etc, A Class 335 standard, full new and factory original packing screen.



Application:



Jewelry, Gem Stone, Watch, Wine bottle, Cosmetics, Perfume set, Digital Camera, IPad/Mac book,

Hand bag, High heel, and Museum Craft



Our competitive advantage:

  1.  Strong teams behind you: R&D team, production team, QC team, Packing Team, sales team, Maintenance team, Management team
  2. Best price, we own developing team and factory, we can control the cost of each material.
  3. OEM/ODM service. We have engineers, professional team for your OEM/ODM service requir eme

Museum 21.5" Stand Alone HD Transparent LCD Display Box / Touch Screen Kiosk

Tag :  LCD advertising player   mirror tv screen
Contact Details
China Signage Display Online Marketplace

Contact Person: Mr. Mark

Tel: 13825096166

Fax: 86-10-7777777-7777

Send your inquiry directly to us (0 / 3000)

Contact Us Quickly
