Computer Rubber Testing Machine , 500 * 500 * 600mm Ozone Test Chamber

Computer Rubber Testing Machine , 500 * 500 * 600mm Ozone Test Chamber

Computer Rubber Testing Machine , 500 * 500 * 600mm Ozone Test Chamber
Computer Rubber Testing Machine , 500 * 500 * 600mm Ozone Test Chamber Computer Rubber Testing Machine , 500 * 500 * 600mm Ozone Test Chamber Computer Rubber Testing Machine , 500 * 500 * 600mm Ozone Test Chamber Computer Rubber Testing Machine , 500 * 500 * 600mm Ozone Test Chamber Computer Rubber Testing Machine , 500 * 500 * 600mm Ozone Test Chamber

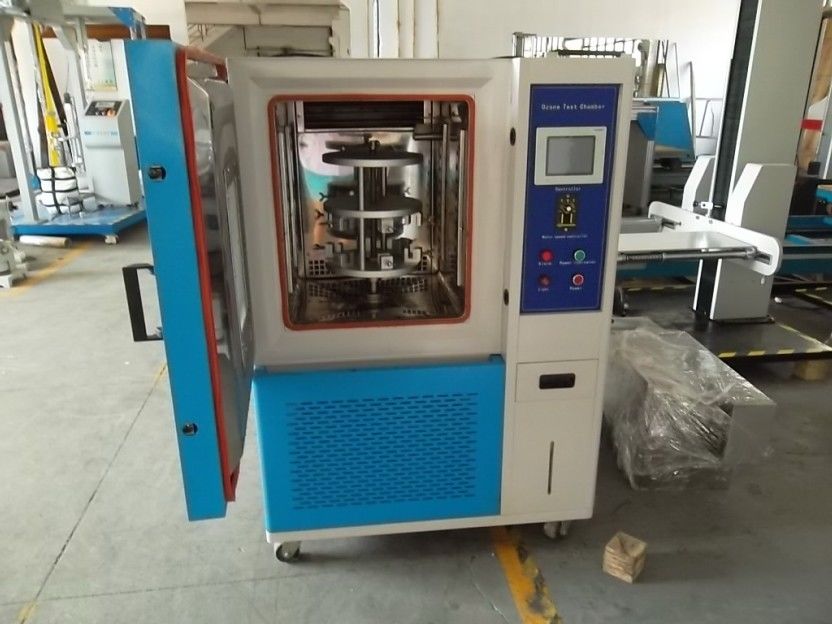

Large Image :  Computer Rubber Testing Machine , 500 * 500 * 600mm Ozone Test Chamber

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E702
Power: Electric
Port: Shenzhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Product: Rubber Testing Equipment Power: Electronic
Ozone Concentration: 5~200pphm (adjustable) 200~1000pphm(adjustable) Temperature: RT 10~ 70°C
Ozone Produced Mode: Ozone Generator Or UV Absorption Method Inside Air Velocity: Over 2 Feet/sec
Inside Size: 500×500×600mm Air Flow: A.0-6 Cfm;B. 10-20 Cfh
High Light:

rubber hardness tester

,

rubber testing equipments

Computer Rubber Testing Machine , 500 * 500 * 600mm Ozone Test Chamber



1. Function



Ozone Aging Test Chamber is used to provide precise and accurate ozone (O3) concentration environment for rubber and polymer. It is important to estimate the resistance of vulcanized rubber to cracking when exposed to an atmosphere containing ozone. During the test rubber specimens are kept under a surface tensile strain, and the ozone content or partial pressure in the test chamber is maintained at a fixed level.



2. Specifications:



Ozone concentration

5~200pphm (adjustable) 200~1000pphm(adjustable)

Relative humidity

No humidity, but can produce according to your requirement

Temperature

RT+10~+70°C

Ozone produced mode

Ozone generator or UV absorption method

Inside air velocity

over 2 feet/sec

Degree of ozone concentration fluctuation

10%

Inside size

500×500×600mm

air flow

A.0-6 cfm;B. 10-20 cfh

weight

250kg

power

1,,AC220V,15A

accessories

tensile fixture 6 groups



3. Features:



1, Fully computerized for easy operation.

 2, Ozone concentration, temperature, chamber humidity and its stability are controlled and dynamic monitored via computer.

 3, Ozone concentration recorded automatically which ozone being detected automatically 0.1 sec one time and being displayed on the computer screen per 2 sec.

 4, A modulus machine which simplifies equipment maintenance.

 5, Co-development that ensures the machine with the best quality and most advanced technology, we would issue quality assurance certificate to every machine.



Computer Rubber Testing Machine , 500 * 500 * 600mm Ozone Test Chamber 0
