China Signage Display Online Marketplace
High quality, Best service,Reasonable price. |
|
Product Details:
Payment & Shipping Terms:
|
| Features: | 1D Reader, RFID, WIFI | OS: | Windows CE 6.0 |
|---|---|---|---|
| Display: | 2.8 Inch | Touch: | Resistive Touch |
| ROM: | 218MB | RAM: | 1GB |

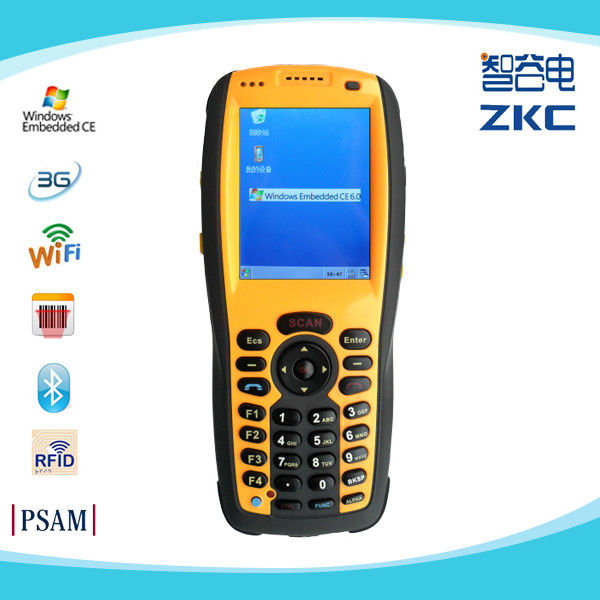

Industrial Windows Mobile Computer 1D Barcode Scanner With Wifi And Rfid
Quick Details of Mobile Windows Computer:
PDA is an industrial intelligent mobile terminal launched by Shenzhen ZKC Software Technology Co.,Ltd.
The terminal is designed based on Miscrosoft WINCE platform with built-in wifi/GPRS/Bluetooth/3G/
RFID/1D/2D /GPS/PSAM/ camera. And it integrated data acquisition, data processing, data communication
to the Intelligent and multifunctional mobile terminal, which can work on condition of all-weather harsh
environment . Our company can provide customization according to the different needs of customers to
expand its use filed. It’s now widely used in military, railway, power, tobacco, logistics and other fields.
Features of Mobile Windows Computer:
1. Adopt Samsung processor S3C6410,Frequency up to 800 MHZ,Running speed is fast, good stability
2. Adopt bluetooth YG-202M module,Bluetooth V2.0,Transmission speed ,transmission distance
3. Adopt WM-G-MR-09-REF2 WiFi module,support IEEE802.11b/g(Standard configuration)
IEEE802.11g(6M / sec transmission rate) ,Performance, fast speed
4. Adopt High stability of the scanning module uE988,Scanning speed, distance, and accuracy of data
collection
5. powerful functions,With 3G, GPRS, RFID, GPS navigation, a two-dimensional scan, PSAM card, WiFi,
camera, Bluetooth, 232 serial, audio and video playback capabilities
6. The machine adopts ergonomic design, compact and lightweight, flexible operation, and easy to carry
7. Waterproof and dustproof, durable,Normal use in harsh environments
8. A wide range of applications,Used in military, railway, electric power, tobacco, logistics and other fields
9. Customers can be customized according to individual needs corresponding function,Fully meet the
diversification of customer-specific features
Specification of Mobile Windows Computer
| Central processor | Master: | Samsung S3C6410 |
| Frequency: | 800MHz | |
| Built-in memory | DDR1 | 128MB |
| NAND Flash | 2GB | |
| Display | Size | 2.8-inch |
| Display | TFT true color touch screen | |
| Resolution | 320×272 | |
| Operating system | Window CE 6.0 | |
| Function | 3G(Optional) | CDMA |
| GPRS(Optional) | CDMA | |
| WiFi | IEEE802.11b/g | |
| GPS | GPS navigation, positioning | |
| PSAM | ISO/IEC 7816-1/2/3/4" | |
| RFID | Operating frequency:13.56MHz | |
| Protocol : ISO/IEC 14443A/MIFARE Read / write mode | ||
| Bluetooth | version 2.0 | |
| Bar code scanning | laser barcode scanner | |
| Camera | 2MP | |
| Input and output | Serial ports | an external 232 standard serial port |
| USB interface | USB device 2.0 interface | |
| Storage Interface | TF card slot | |
| IO expansion interface | Built-in SPI I2C serial GPIO and other expansion | |
| Power synchronization port | MiNi-USB interface,For 5V power charging and PC synchronization | |
| Speaker | Support for audio and video playback | |
| Indicator | Charge, working indicator | |
| Function keys | 34 function keys+5 side key | |
| Battery | Battery capacity | 3.7V 3100mA lithium polymer battery |
| Charging time | Power off charging:3～4 hours； On charging:6～8hours | |
| Life time | Video player＞6 hours | |
| Language | Chinese or English(Optional) | |
| Secondary development | VBVS,NET2005(2008),MS EVC 4.0 ,VC,C#,C++ (Provide the SDK) | |
| Temperature and humidity | Temperature:0℃～50℃ Humidity:0～95% | |
| Fitting | USB data line and a touch pen,A power adapter,A battery | |
