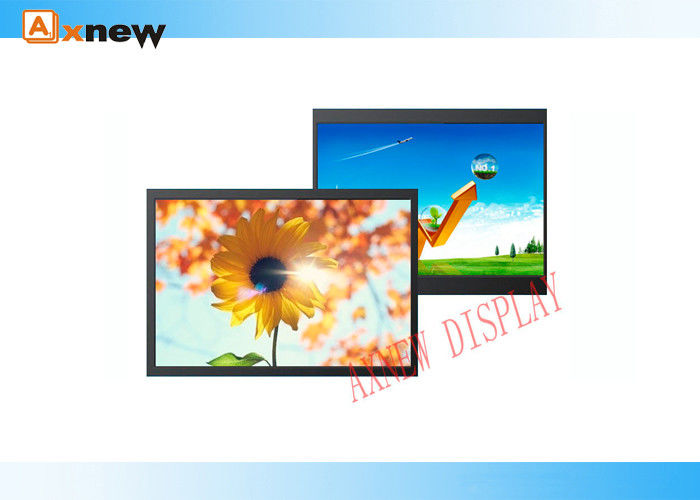

Black 22 Inch BNC / HDMI Advertising LCD Display Screen For Digital Signage

Model:AXD-22OPN1P1-MO

Screen Size:22’’

Screen format: 16:10

Display Resolution(pixel):1680X1050

Contrast Ratio:1000:1

Brightness:450cd/m^2

Storage temperature :0℃~60℃

Input signal: VGA HDMI AUDIO ,etc

Power Input: AC100~240 V /DC 12V

Product status: Stock

Display Specifications

Display

22.5" Color TFT LCD monitor

Model Name

AXD-22OPN1P1-MO

Active Display Area (mm)

473.37(H)x296.1(V)

Pixel Pitch (mm)

0.282(H)x0.282(V)

Resolution (Pixel)

WSXGA (1680X1050) 262,144(6 bit + FRC)

Brightness (CD/m^2)

450cd/m^2

Contrast Ratio

1000:1

Viewing Angle (CR >=10)

170/170

Power consumption

48 W typical, normal operation

Touch Screen

No touch

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,HDMI, AV, BNC etc

Power Input

DC 12V,5A 48W

Mechanical Specifications

Construction

Steel housing &Black Color

Dimensions

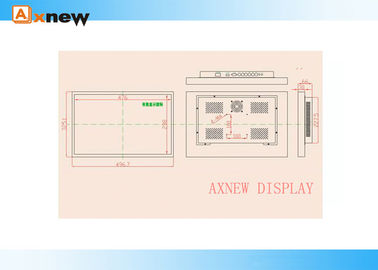

Depending on the drawings

Mounting

Embedded ,vesa 75x75(100x100) Wall Mounting Optional

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

0~60℃

Storage Temperature

0~60℃

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

22” IP LCD Monitor with VGA input and power adapter

Packing details

1x 22 inch Touch Screen Digital Signage ;

Packed in 5 pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms

7- working days for stock products after receiving payments;  15 working days for order production
