Product Details:
Payment & Shipping Terms:
|
| LED Display: | Full Color LED Display | Advertising: | LED Advertising Display |
|---|---|---|---|
| Outdoor Videowall: | Outdoor LED Videowall | Waterproof: | Front:IP68 Back:IP54 |
| Brightness: | >7000cd/sqm | Module Size: | 320x160mm |
| High Light: | outdoor advertising led display screen,led billboard advertising |
||

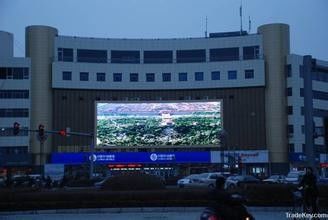

P10 SMD Advertising Led Display Screen With High Brightness and high refresh rate
Quick Detail:
Description:
Better cooling: Overall all-aluminum modular design with SMD silver-plated metal leadframe in unique heat sink, which makes the LED chip and aluminum module conduct fast,PCB no longer block the heat dissipation,the heat from light emitting chip and driver IC can be tranfered to the enviroment by the aluminum shell.
Light Weight :33KG for one square meter.
Extremely low death rate of light: SMD unique thermal and waterproof design to ensure that products in the factory no dead lights, outdoor enviroment under normal use less than 1/50,000.
Die Casting Materials : Aluminum alloy
Product Details:
Special design aluminum module, special design aluminum cabinet, patented design, unique in the world, new generation LED display with our own patent.
Really outdoor SMD LED display, 10 years R&D, over 30 patents, high waterproof level, super high brightness, high contrast ratio, high grey scale, high refresh rate, super vivid color, super wide view angle, super soft display, super even surface
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
Specifications:
|
Model No. |
GES PH10 |
|
Pixel Pitch |
10mm |
|
Module Size |
320*160mm |
|
Module Resolution(pixels) |
32*16 |
|
Cabinet Size |
960mm×960mm |
|
Panel Resolution(pixels) |
96×96 |
|
Pixel Configuration(RGB) |
SMD 3 in 1 |
|
Pixel Density(pixels/㎡) |
10000 |
|
Brightness(cd/㎡) |
more than 7000/sqm |
|
Best Viewing Distance(m) |
6-100 |
|
Average Power Consumption(W/㎡) |
600 |
|
Waterproof Level |
IP65 |
|
Vavelength |
R 620-625 G 520-525 B 470-475 |
|
LED SPEC |
∮2323 |
|
Viewing Angle |
140°(H)/140°(V) |
|
Operating Tempreture |
–40~80°C |
|
Video Frame Rate(Hz) |
≥ 60HZ |
|
Display Refresh Rate(Hz) |
≥ 3840HZ |
|
Grey Level(colors) |
16.7million |
|
MTBF |
≥50,000 hours |
|
Lifespan |
≥100,000Hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Drive Mode |
Constant 1/16 |
|
Graphics Card |
DVI Graphics card |
|
Video Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
|
Control System |
LINSN |
|
Software |
LED studio 10.0 |
|
Installation |
Wall mount, hung and stand structure |
4. Methods for Quality Assurance
a. Aging test for 3 days
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
5. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
6. Package
Flight case and Fumigation-Free wooden case
7. Control System Connection
GETRON Controls system
8. Competitive Advantage:
1. We produce LED Lamp in our own factory and with our own patents,
2. more than 20 patents for really outdoor SMD LED screen.
3. 2 years warranty with free repair service
4. 24/7 Hours online Remote Support
5. Solution and PCB design
6. Free factory training or engineer support in the spot.
7. Onsite installation instruction and regular inspection
