P10 Indoor Advertising LED Display Brightness 5000nits max available
Description:
MOsn10 is special popular in Asian and African market.
An Idnoor LED display suited for vertical and large-scale setups
1. Carbon Fiber materials for super thin style with ultra-high strength tensile force
2. Module Size is ultra-light, Light to 10kg per square meter, the thickness of the largest is 45mm
3. Easy, quick and flexible installation for fast and many kinds of assembly and disassembly
4. 45degree of inclined frame design is suitable for assembly into arbitrary curve display surfaces
Applicantion:

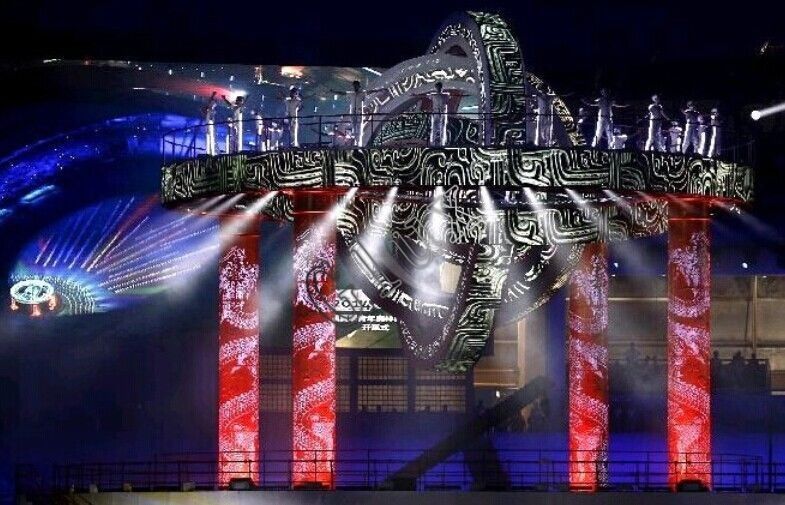

Video, graphics, animation, advertising, stage backdrop, stadium, sports, entertainment, events, shopping center,exhibitions, TV shows, car shows, fashion shows, concerts,etc
Specifications:
| Item No. | MOsn10 |
| Pixel Pitch(mm) | 10.41 |
| Pixel Density(dots/m2) | 1100 |
| Brightness(cd/m2) | 5000 max |
| Color Temperature (after calibration)K | 6500 |
| Module Size(W*H*D)(mm) | 1000*500*52 |
| Weight(kg/Panel) | 5 |
| Weight(kg/m2) | 10 |
| LED Type | SMD3528 |
| LED Chip | Epistar |
| Horizontal/Vertical Viewing Angle(º) | H160º/V160º |
| Recommended Viewing Distance(m) | ≥10 |
| Contrast | 1200:1 |
| Refresh Rate(Hz) | 900 |
| Grey Scale(bit) | R/G/B 16bit |
| Frame Rate(Hz) | 50/60 |
| Life Time(H) | ≥50000 |
| Protection | Indoor |
| Power Supply | Singular Power Supply |
| Working Voltage(V) | AC 110-240 |
| Max Power Consumption(W/M2) | 700 |
| Avr Power Consumption (W/M2) | 200 |
| Working Temperature | -25-40℃ |
| Working Humidity | 10%-95% |
| Drive Mode | 1/6 |
| Cabinet Material | Carbon fiber |
| Control Input | DVI/HDMI/HDSDI |
| Certification | CE/ROHS |
| Max Hanging(Vertical) | 1400kg |
Feature Advantage & Competitive Advantage:
Cost saving.
Light weight, only 10kg/sqm.
Support curved installation
