Product Details:
Payment & Shipping Terms:
|
| Product Name: | Led Advertising Billboard | Application: | Outdoor |
|---|---|---|---|
| Tube Chip Color: | Full Color | Pixel Pitch: | 16mm |
| Resolution(W*H): | 16dots*8dots | Pixel Configeration: | 2R,1G,1B |
| High Light: | digital advertising billboards,outdoor advertising led display |
||
High Brightness P16 Full Color Outdoor Advertising Led Display 8000 Nits
1.48bit colors processing
2.Energy saving,Easy maintenance
3.Advanced dot adjusting
4.CE,ROHS
Super brightness full color LED billboard advertising
1.Show all kinds of word,text,graph, pictures, flashes, video,2-dimension, 3-dimension cartoon and any other
formats with your PC does synchronously.
2. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA,SDI,
MOV,MPG,HD-SDI, etc.
3.Self-adjustment function
automatically adjusts outdoor LED display brightness to suitable level through outdoor environment condition

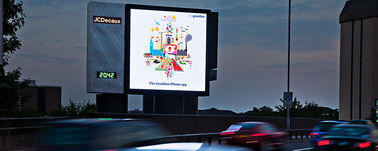

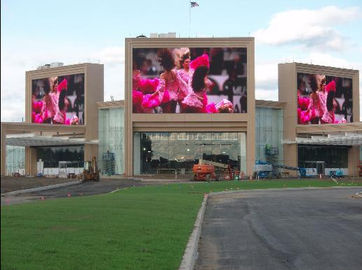

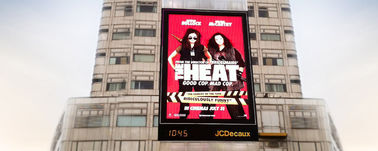

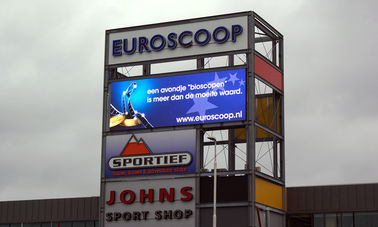

4.It can be used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall,
banks, schools, bus station, airport, gym, market, factories, monitoring centers,hospitals, bars etc.
1) System structure
2)Led Module
|
Module Size(W * H) |
256mm*128mm |
Pixel Configeration |
2R,1G,1B |
|
Pixel Pitch |
16mm |
Resolution(W*H) |
16dots*8dots |
|
Pixel Density |
3906 dot / m2 |
Driving Method |
static Current |
3)Led cabinet
|
Cabinet Size(W * H) |
1024mm*768mm |
Module Qty |
20pcs |
|
Cabinet Resolution(W * H) |
64dots*48dots |
Cabinet Pixel |
4096 |
|
Weight |
56kg/pc |
Area |
1.23(m2) |
|
Avarage Power Consumption |
200W/m2 |
Max Consumption |
600W/m2 |
4)Led Video wall technical parameter
|
Operating Humility |
10% ~ 90% RH |
|
Oprating Temprature |
-20°C ~ +60°C |
|
Optimal Viewing Distance |
10m-60m |
|
Display Color |
1,070,000,000 |
|
Gray Scale |
65536grade |
|
Brightness control |
256grade |
|
Frame Frequency |
60HZ |
|
Refresh Speed |
>300HZ |
|
Power Supply |
220V/50HZ |
|
MTBF |
≥10,000hours |
|
Life Span (50% brightness) |
≥100,000hours |
|
Control Mode |
synchronization with PC |
|
Input Signal Format |
VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV |
|
Operating System |
WINDOWS(98,2000,XP,Vista) |
Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Package
Flight case and Fumigation-Free wooden case
Control System Connection
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
6, Small order accepted.
