Product Details:
Payment & Shipping Terms:
|
| Item Name: | Commercial Advertising Led Display | Pixel Pitch: | 16mm |
|---|---|---|---|
| Module Size: | 256mm*256mm | Pixel Density: | 3906/m² |
| High Light: | led advertising displays,perimeter advertising boards |
||
PH16mm Commercial Advertising Led Display Full Color Highly Efficient
Brief Introduction to Commercial Advertising Led Display:
Nowadays large commercial advertising led display board has gradually become a new favorite among outdoor advertising forms. During the constant development of outdoor media, advertising led display signs are increasingly applied into the advertising industry and constantly spreading in the large screen market due to its large and vivid display and ability to attract people’s eyes.
Unique Features of P16 Outdoor Advertising Led Dipslay Sign:
(1) It is equipped with sensitization control system, so that it can automatically adjustment the brightness of the display sign according to the change of the indoor and outdoor light, which is energy saving and environmentally friendly and can greatly reduce your running cost.
(2) The high refresh frequency and high grey scale makes the picture of the led display sign more vivid, thus satisfying the requirement for high visual quality.
(3) The display content of the led display panel can be changed at any time, so that it can display different advertisements for different customers all day long.
(4) It has the function of two-cable warm backup, and two computers control one board at the same time. In this way, when one computer fails, the other one can automatically take over, thus ensuring the normal work of the led display panel.
(5) This outdoor advertising led display bill board uses highly efficient optical fiber transmission system, thus effectively reducing the signal delay caused by long transmission distance and ensuring the uniformity of the picture display.
(6) All the display information can be controlled by remote internet, and only by clicking the mouse can easily change the image information, thus realizing the network cluster of advertising display in cities and locals.
(7) This full color outdoor advertising led display support network control function, so that customers can control the led display equipment of several cities only in one place and change the display content at any time.
(8) It is equipped with environment monitoring system, so that customers can learn the running condition of the led display equipment at any time and at any place.
(9) With our multi-functional card, customers can turn on or turn off the display at a fixed time using software or manually operate it, thus realizing unattended operation function.
Technical Parameters of Outdoor Commercial Led Display Boards:
| Model | Outdoor P16 Advertising Led Display |
| Pixel Pitch | 16mm |
| Pixel Composition | 1R1G1B |
| LED Type | DIP |
| Pixel Density | 3906/m² |
| Scanning method | Static Scanning |
| Brightness | 7200cd/m² |
| Working Voltage | AC110V±10％, 50Hz-60 Hz |
| Average Power | 300W/m² |
| Max. Power | 750 W/m² |
| Pixel No. on Unit Plate | 16×16 |
| Module Size | 256mm×256mm |
| Level up degree | <1mm |
| Viewable Distance | 16m-500m |
| Viewable Angle | Horizontal: 120°, Vertical: 60° |
| Screen Weight | 40 kg/m² |
| Driving Method | Constant current |
| Display Color | 17M～69G colors |
| Display Color | Manual/Automatic/Remote |
| Grey Scale | 256～4096 |
| Refresh Frequency | 300 Hz～2440Hz |
| Refresh Frame Frequency | 60Hz |
| Display Content | TV picture, ads, video, live streaming video, picture and words |
| Display Mode | 640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640 |
| Control Method | Synchronous, asynchronous, remote and wireless |
| Transmission Distance | 5E cable≦130M Multimode fibre≦500M monomode fibre≦10KM |
| Transmission Distance | ≥72 hours |
| Service Life of Led | 100,000 hours |
| Mean Time Between Failure | ≥10,000 hours |
| Dispersed Incontrollable Point | <0.01% |
| Continuous Incontrollable Point | No |
| Protecting Technology | Waterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage. |
| Temperature of Use Environment | -20℃～+50℃ |
| Moisture of Use Environment | 10%～90% |
| Certifications | CE, ROHS |
Note: The technical parameters are just for reference, please contact us for details.

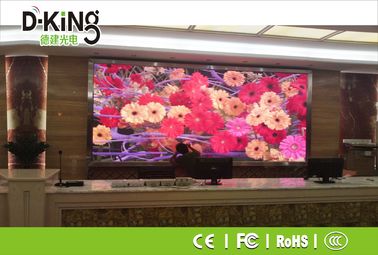

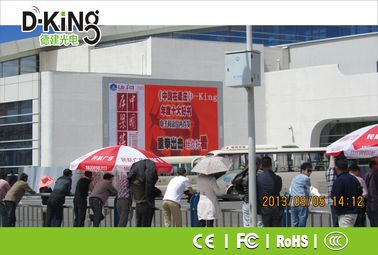

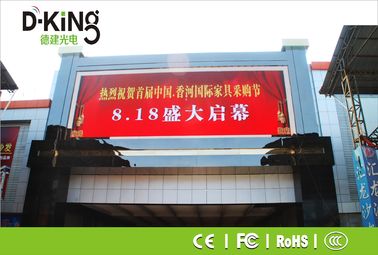

More pictures for your reference:
