Product Details:
Payment & Shipping Terms:
|
| Item Name: | RGB Led Screen | Brightness: | 1600cd/m² |
|---|---|---|---|
| Pixel Composition: | 1R1G1B | Refresh Frame Frequency: | 60Hz |
| Optimum View Distance: | 6m-30m | Pixel No. On Unit Plate: | 32*16 |
| High Light: | led advertising displays,perimeter advertising boards |
||
RGB P6 Indoor Advertising LED Display Panels Full Color High Brightness
RGB led screen stage makes full use of modern information technology and is a high-tech terminal product that combines such disciplines as sound, light, electricity and machinery and integrates video, animation, words and pictures and that is used for information release. Besides, led display panels can also be extended to network, communication, comprehensive wiring, broadcast and other weak current systems.
Features and Applications:
P6 indoor full color led panel display uses low voltage scanning drive and has many advantages such as low power consumption, long service life, low cost, high brightness, wide visual angle, long visual distance, waterproof and diverse models, thus being able to meet the requirement of different application places. This led screen has wide development prospect and is acknowledged as the most potential led screen.
Technical Parameters of P6 RGB Led Screen:
| Model | P6 RGB Led Screen |
| Pixel Pitch | 6mm |
| Pixel Composition | 1R1G1B |
| Pixel Density | 27777/m² |
| Scanning method | 1/8 |
| Brightness | 1600cd//m² |
| Working Voltage | AC110V±10%, 50Hz-60 Hz |
| Average Power | 300W/m² |
| Max. Power | 900W/m² |
| Pixel No. on Unit Plate | 32*16 |
| Module Size | 192mm×96mm |
| Level up degree | <1mm |
| Viewable Distance | Normally 960mm×960mm×110mm (Can be customized) |
| Viewable Angle | Horizontal: 140°, Vertical: 140° |
| Screen Weight | 40kg/m² |
| Driving Method | Constant current |
| Display Color | 17M～69G colors |
| Display Color | Manual/Automatic/Remote |
| Grey Scale | 256~4096 |
| Refresh Frequency | 300 Hz~2440Hz |
| Refresh Frame Frequency | 60Hz |
| Display Content | TV picture, ads, video, live streaming video, picture and words |
| Display Mode | 640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640 |
| Control Method | Synchronous, asynchronous, remote and wireless |
| Transmission Distance | 5E cable≦130M Multimode fibre≦500M monomode fibre≦10KM |
| Transmission Distance | ≥72 hours |
| Service Life of Led | 100,000 hours |
| Mean Time Between Failure | ≥10,000 hours |
| Dispersed Incontrollable Point | <0.01% |
| Continuous Incontrollable Point | No |
| Protecting Technology | Waterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage. |
| Temperature of Use Environment | -20℃~+50℃ |
| Moisture of Use Environment | 10%~90% |
| Certifications | CE, ROHS |
Note: The technical parameters are just for reference, please contact us for details.

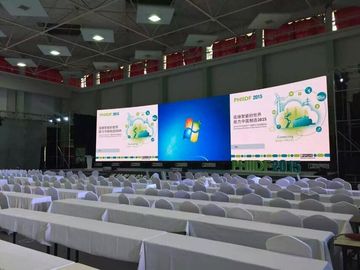

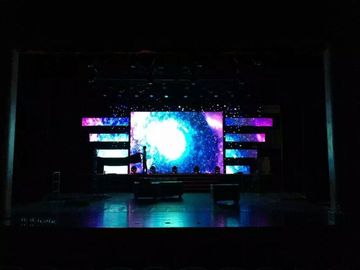

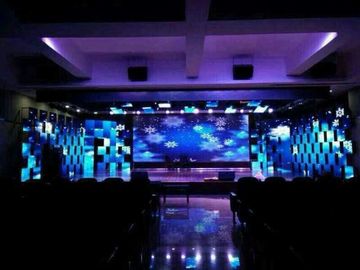

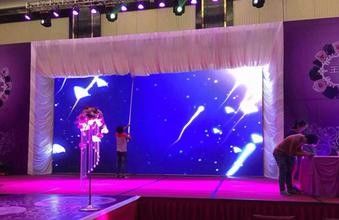

More Pictures for Your Reference:
