P2 - P7 Full Color Indoor Advertising Led Displays With High Refresh Rate

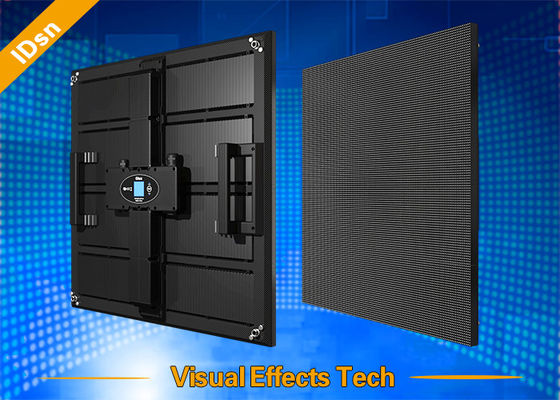

IDsn Series (Indoor LED Display)
Quick Detail:
1. Name:IDsn
2. Pixel Pitch:2.6mm / 3.9mm / 5.2/7.8mm
3. Brightness: ≥1000nits
4. Long life span more than ≥75000h
5. Waterproof IP45
6. Max vertical hanging ≥1000kg
Description:
1. SMD 3in1 LEDs,super thin and lightweight Indoor LED Display
2. Super high refresh rate, ultra low brightness display without Gray scale reducing
3. Carbon Fiber substrates with ultra-high strength tensile force, high mechanical stability, ultra thin and lightweight
4. Easy, quick and flexible installation for fast assembly and maintenance,suitable for different applications
5. Dot by dot calibration guarantee image uniformity
6. Double-side 45degree curved angle design, suitable for 90degree assembly
Specifications:
| Glux LED Display IDsn series | IDsn2 | IDsn3 | IDsn5 | IDsn7 |
| Pixel Pitch (mm) | 2.6 | 3.9 | 5.2 | 7.8 |
| Pixel Density (dots/m2) | 147456 | 65536 | 36864 | 16384 |
| Brightness Max (cd/m2) | ≥1000 | ≥1000 | ≥1000 | ≥1000 |
| Grey Scale (bit) | 16bit | 16bit | 16bit | 16bit |
| Refresh Rate (Hz) | ≥3000 | ≥3000 | ≥3000 | ≥3000 |
| Frame Rate (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Contrast | ≥1000:1 | ≥1000:1 | ≥1000:1 | ≥1000:1 |
| Color Temperature (after calibration) (K) | 6500 | 6500 | 6500 | 6500 |
| Horizontal / Vertical Viewing Angle (°) | H160/V160 | H160/V160 | H160/V160 | H160/V160 |
| Module Size (W x H x D) (mm) | 500x500x53 | 500x500x53 | 500x500x53 | 500x500x53 |
| Weight (kg/panel) | 3.9/4.3 | 3.9/4.3 | 3.9/4.3 | 3.9/4.3 |
| Protection | IP40 | IP40 | IP40 | IP40 |
| Power Supply | Single power(Dual power) | Single power(Dual power) | Single power(Dual power) | Single power(Dual power) |
| Working Voltage(V) | AC100-240V/50/60Hz | AC100-240V/50/60Hz | AC100-240V/50/60Hz | AC100-240V/50/60Hz |
| Max Power Consumption (W/pcs) | ≤150 | ≤150 | ≤150 | ≤150 |
| Working Temperature | -20Co/40Co | -20Co/40Co | -20Co/40Co | -20Co/40Co |
| Cabinet Material | Carbon fiber | Carbon fiber | Carbon fiber | Carbon fiber |
| Max Hanging (vertical) | ≥1000kg | ≥1000kg | ≥1000kg | ≥1000kg |
| Signal Cable | CAT5-1000M | CAT5-1000M | CAT5-1000M | CAT5-1000M |
| Video Signal Input Interface | DVI/HDMI/HDSDI | DVI/HDMI/HDSDI | DVI/HDMI/HDSDI | DVI/HDMI/HDSDI |
| Life Time (h) | ≥10000 | ≥10000 | ≥10000 | ≥10000 |
Feature Advantage & Competitive Advantage:
Applicantion:
Sports,advertising, entertainment,stage,events,stadium, shopping center, exhibitions, shows, concerts, ceremonies, etc
Product instance
2014 Arabs Got Talent, mbc TV station,Lebanon Products: (IDsn3.9 120sqm)
