Super Thin Light Weight Profile Advertising LED Screens
Quick Detail:
1. Name:BAtn20C
2. Pixel Pitch:20.8mm
3. Brightness:5000cd/m2
4. Module Size:1000*500*45mm
5. Contrast:2000:1
6. Refresh Rate:8000Hz
Description:
1. Carbon fiber construction for an ultra light ,thin and aerodynamic structure.
2. Wind Resistant and weathproof- ideal for large scale setups
3. Glux angled edge structure for max 90 degree curved assembly =compatible with all other Glux LED Screens
4. Glux fast-assembly mechanism=compatible with all other Glux LED Screens
5. Invisible cable management
6. Grayscale &&Pixel by Pixel corrections ensures the highest image quality.
7. Module measurements:1.0*0.5m
Applications:

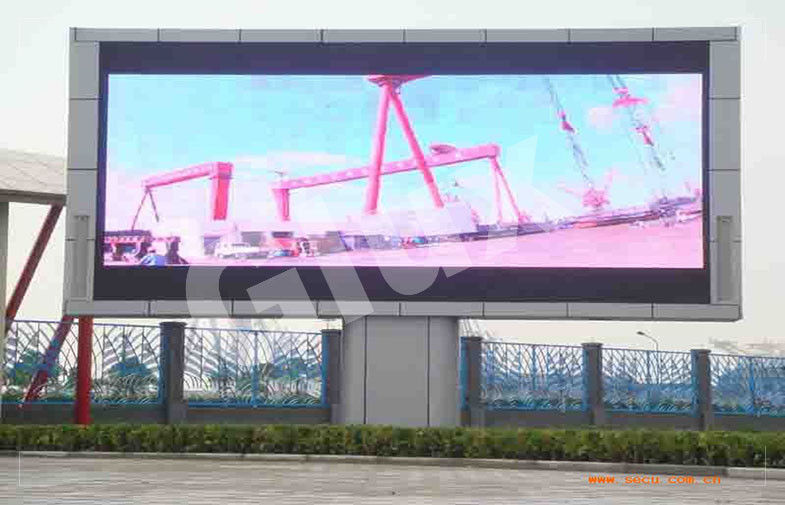

Glux BAtn series suits for outdoor stages,outdoor advertisings,and so on.
Specifications:
|
Glux LED Display BAtn Series |
BAtn 10C |
BAtn 15C |
BAtn 20C |
|
Pixel Pitch(mm) |
10.4 |
15.6 |
20.8 |
|
Pixel Density(dots/m2) |
9216 |
4096 |
2304 |
|
Brightness(cd/m2) |
5000 |
5000 |
5000 |
|
Color Temperature(after calibration)K |
6500 |
6500 |
6500 |
|
Module Size(W*H*D)(mm) |
1000*500*45 |
1000*500*45 |
1000*500*45 |
|
Weight(kg/Panel) |
4.7 |
4.7 |
4.7 |
|
Weight(kg/m2) |
9.4 |
9.4 |
9.4 |
|
LED Type |
3535 |
3535 |
3535 |
|
LED Chip |
Epistar |
Epistar |
Epistar |
|
Horizontal/Vertical Viewing Angle(º) |
H160º/V160º |
H160º/V160º |
H160º/V160º |
|
Recommended Viewing Distance(m) |
10-200 |
15-200 |
20-200 |
|
Contrast |
2000:1 |
2000:1 |
2000:1 |
|
Refresh Rate(Hz) |
1200 |
5000 |
8000 |
|
Grey Scale(bit) |
R’G’B 16bit |
R’G’B 16bit |
R’G’B 16bit |
|
Frame Rate(Hz) |
50/60 |
50/60 |
50/60 |
|
Life Time(H) |
≥75000 |
≥75000 |
≥75000 |
|
Protection |
IP65 |
IP65 |
IP65 |
|
Power Supply |
Dual Power Supply |
Dual Power Supply |
Dual Power Supply |
|
Max Power Consumption(W/M2) |
540 |
540 |
540 |
|
Avr Power Consumption (W/M2) |
270 |
270 |
270 |
|
Working Temperature |
-25-60℃ |
-25-60℃ |
-25-60℃ |
|
Working Humidity |
10%-95% |
10%-95% |
10%-95% |
|
Driving Method |
1/3 |
1/2 |
Static |
|
Driving Chip |
MBI5041/MBI5020 |
MBI5041/MBI5020 |
MBI5041/MBI5020 |
|
Cabinet Material |
Carbon fiber |
Carbon fiber |
Carbon fiber |
|
Control Input |
DVI/HDMI/HDSDI |
DVI/HDMI/HDSDI |
DVI/HDMI/HDSDI |
|
Certification |
CE/UL/FCC/TUV |
CE/UL/FCC/TUV |
CE/UL/FCC/TUV |
|
Max Hanging(Vertical) |
1400kg |
1400kg |
1400kg |
