Commercial Advertising Led Display P13.3 1RGB Outdoor Stadium Led Screen
Quick Detail:
1. LED Module: 320mm x 320mm;
2. LED Cabinet: 960mm x 960mm;
3. 1RGB DIP346;
4. IP65 waterproof for outdoor use;
5. Linsn synchronous control system;
6. Both external and Internal connection of signal and power cables;
Description:

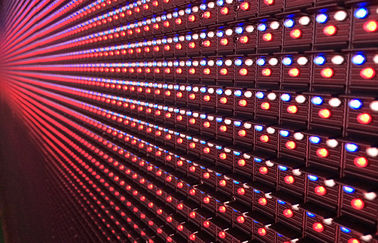

1. P13.33 advertising LED screen panels is utilizing large size 320mm x 320mm LED modules design enable less modules quantity in one LED cabinet for seamless connection;
2. DIP346 LED lamp is of high brightness up to 8000cd/㎡ to present clear vivid image and video even under direct sunshine;
3. P13.33 1RGB advertising LED display screens is being widely choose, as it got a balanced between P10 and P16;
4. Outdoor Advertising P13.3 DIP346 LED Display Boards is at 4000:1 High contrast ratio guaranteeing a vivid and beautiful image and video presentation;
5. Shopping Mall Advertising LED display screens P13.3, LED Screen Panels Advertising is of high resolution for outdoor elctronic LED billboards use;

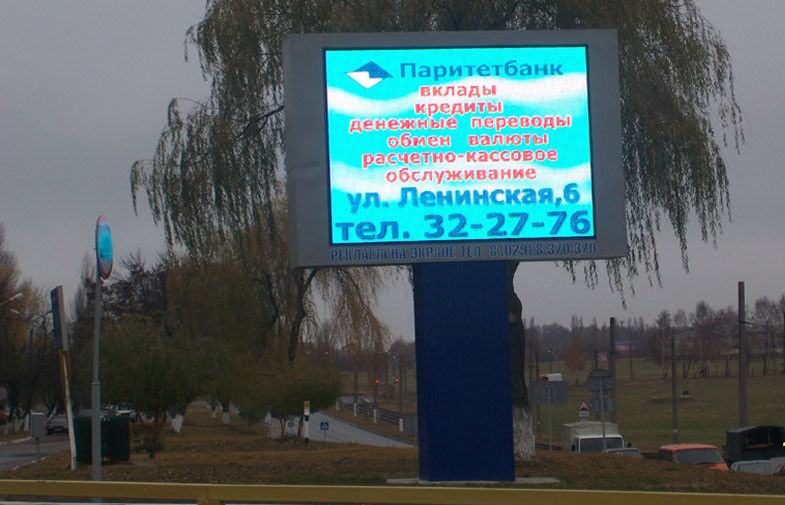

6. Applied as outdoor fixed installation LED display on steel pole,wall building,building roof etc.
Applications:
Shopping Mall LED Billboard
Commercial Advertising LED Billboard
Church LED Billboard
Road Show LED Billboards
High Speed Way LED Advertising LED Display
On roof of building advertising LED display
Mounted on building advertising LED screen
Put on steel pole advertising LED billboard
Cross bridge information LED display
Specifications :
| LED Module Parameter | |
| Pixel pitch (mm) | 13.3 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 24 x 24 |
| Module pixel | 576 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 72 x 72 |
| Cabinet pixels (pixels) | 5184 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 5627 |
| Brightness(cd/m2) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥12m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode fiber cable ＜ 20km |
| Display work method | 1/4 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1200 |
| Picture display method | Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 940W/㎡ ; Ave:400W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
Competitive advantages:
1. Long life time: outdoor advertising LED screens PH13.3 is of good heat dissipation;
2. High quality image and video presentation for large size LED billboards advertising use;
3. High brightness: P13.3 advertising outdoor LED video screen is of enough brightness to deliver a clear image and video even under direct sunshine;
4. High resolution: Full color P13.3 advertising outdoor LED screens boards is of high resolution for large size outdoor LED video screens project,resolution is 5627pixels/㎡;
5. Brightness automatic adjustment: P13.3 outdoor advertising full color LED displays is equipped with Linsn multi Function card installed for automatic brightness adjustment to present a comfortable display effect in day and night and also save energy;
6. Popular choose: P13.3 unit price is lower than P10 while resolution is higher than P16 outdoor LED advertising displays, so more users would choose P13.3 because of it balanced point.
