RGB Waterproof Curtain Flexible LED Display Weatherproof For Public

Large Image : RGB Waterproof Curtain Flexible LED Display Weatherproof For Public

Product Details:

Place of Origin:	China
Brand Name:	Ocolour
Certification:	CE/RoHS/FCC/ETL/TUV
Model Number:	OC-MS-P42SMD3535

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Plywood cartons or flight case packaging
Delivery Time:	18-25 working days after received your payment
Payment Terms:	40% T/T as prepayment, 60% T/T as balance at factory
Supply Ability:	30000 sq.ft per month (3000㎡ per month)

Contact Now

Detailed Product Description

Pixel Pitch:	1.65 Inch	Led Configuration:	SMD 3 IN 1: SMD3535
Physical Pixel Density:	567dots/㎡	Color Temperature:	3200—9300 Adjustable
Module Surface Area:	9.72 Sq.ft	Processing:	≥14 Bit
Driver Mode:	Static	Viewing Angle:	120°
High Light:	LED window signs , flexible LED curtain display

RGB Waterproof Curtain Flexible LED Display Weatherproof For Public

Quick Viewing:
Horizontal and vertical 120 degree larger viewing angle;
Supporting text, graphics, video or flash;
Color temperature 3200-9300 k adjustable;
Less than 1.98LB (0.9kg/sq.m), ultra-thin and light weight design;

High definition with 1.65inch (42mm) pixel pitch, 53 dots/sq.ft (567 dots/sq.m);
High brightness with 93CD/sq.ft (1000CD/sq.m), could be seen in direct sunshine;
Standard PH42 module, W 8 x H 64 dots, W 13.23 x H 105.83 inch, static scanning;
FCC/CE/TUV/ETL/RoHS certificated;
It has a long lifetime of 100000 hours;
It can work under -40F–140F (-40-60℃) /5%-95%RH(non-condensing);

IP67 protection degree, waterproof &weatherproof, suitable for pretty cold Russia or burning hot Africa.

Detailed Description:

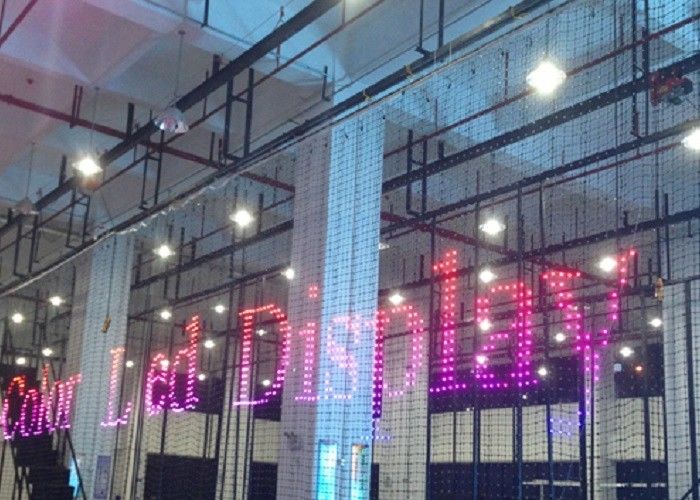

It is a kind of lightweight LED string, which could also gather together to be the transparent full color display system by convenient accessories. Its features are flexible installation, light weight, highly transparent, which are adapted to various kinds of installation, such as bend, fold, winding, swing, etc. It is high artistry and creativity that can be free to assemble into various shapes. It is the best choice to achieve the perfect solution that making use of the LED video technology integrate with stage design, ceiling and any other architectures, both for indoor and outdoor.

Main Advantages
1. IP67, suitable for permanent outdoor or indoor use.
2. Capability of customized pixel pitch, size and shapes. Minimum pixel pitch is 1.65 inch (42mm).
3. Multi-purpose installation accessories, flexible installation ways of various applications.
4. High light transmittance. Stage lights, smoke, sound can be unlocked.
5. Can be arranged as LED pixel dot, LED strip lighting, and soft mesh LED display screens, showing nice graphics and video effect.
6. Irregular shape and snapshot effect available, no worrying about environment restrictions.
7. Light weight, easy to install and dismount.
8. Single dot maintenance and replacement.
9. Can be customized as double-side led display (Patented)
10. Black and white base for choose.

Popular Application:
1. Rental stage, live show, concerts, stage background;
2. Decoration for the night clubs and discos;
3. Indoor and outdoor building's advertising;
4. Shopping mall's decoration and advertising;
5. Celebration the festival;
6. Rental and fixed projects.

Specifications:

Item		Technical Parameters
Screen model		OC-MS-P42SMD3535
R chip (wavelength range: 620-630nm, 5nm)		Brightness range: 500-900mcd
G chip (wavelength range: 460-470nm, 4nm)		Brightness range: 1200-1500mcd
B chip (Wavelength range: 520-530nm, 4nm)		Brightness range: 300-450mcd
Module	Led configuration	SMD 3 IN 1: SMD3535
	Pixel pitch (mm)	42mm(1.65 inch)
	Module resolution (W X H)	W 8 x H 64 dots
	Module dimension(W x H inch)	W 13.23 x H 105.83 x D 0.39 inch (W 336 × H 2688 x D 10 mm)
	Module surface area(sq.ft)	9.72 sq.ft(0.9 sq.m)
	Physical pixel density(dots/sq.ft)	53dots/sq.ft(567dots/㎡)
	Brightness	≥93CD/sq.ft (1000CD/㎡)
Optical parameters	Single-point brightness correction	available
	Single-point color correction	available
	Color temperature(K)	3200—9300 adjustable
	Horizontal viewing angle	120°
	Viewing angle (Vertical)	120°
	Brightness Uniformity	<3%
	Color uniformity	≥97%
	Contrast ratio	5000:1
Electrical parameters	Max power consumption	9.3W/sq.ft (100W/sq.m)
	Average power consumption	2.79-4.65W/sq.ft (30-50W/sq.m)
	Security Features	GB4943/EN60950
	Drive mode	Static scanning
	Gray scale level	16 bit
	Refresh rate(Hz)	≥960
	Processing	≥14 bit
	Module comes with power failure	Save luminance, Color correction, module data
Use parameter	Life time(hrs)	100,000 hours
	Operating temperature / humidity	-40F–140F (-40-60℃) /5%-95%RH(non-condensing)
	Storage temperature / humidity	-40F–140F (-40-60℃) /5%-95%RH(non-condensing)
	Certification	CCC/FCC/TUV/CE/ETL
