Product Details:
Payment & Shipping Terms:
|
| Product Name: | Outdoor P10mm LED Display | Application: | Outdoor |
|---|---|---|---|
| Size Of Panel: | 1024mm*1024mm | Resolution: | 128*128 |
| Brightness: | Over 7000cm/d | Feature: | HD, High Brightness |
| Standard: | CE/ROHS/FCC/SGS | Type: | Advertising |
| High Light: | led outdoor display board,outdoor full color led display |
||

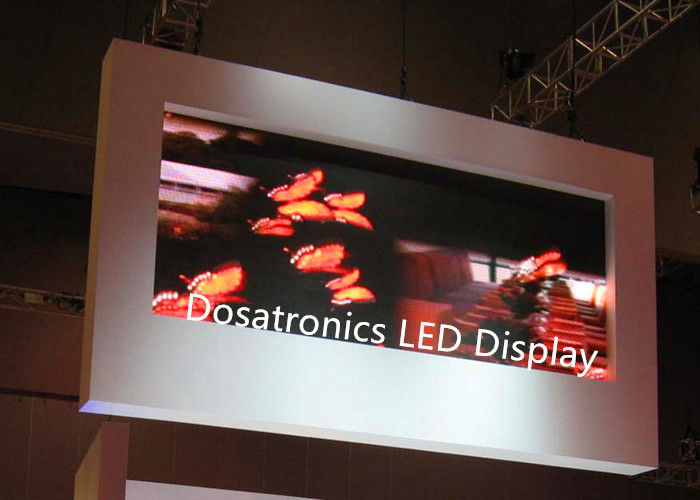

High Brightness SMD P10mm Outdoor LED Screen LED Advertising Display
1. Quick Detail:
(1) SMD P8 Aluminum module
(2) High brightness
(3) Light weight and slim design
(4) Big View Angle
(5) IP68 Protect Grade
2. Description:
Dosatronics LED displays are high tech product with our own patent. Especially outdoor LED display for advertising has high brightness, high contrast, high refresh rate…All are popular both in domestic and overseas market. We adopt unbeatable product stability through strict Quality Control System. It is very correct for you to choose our company, our LED display products. All of them has 3 years quality warranty since all component are extremely good. They can bring you large fortune in a very short time.
3. Applications:
Our Full Color SMD Outdoor P8 LED Display is mainly for outdoor usage, such as commercial advertising,
mobile media, night club, entertainment events, business establishments, can install in banks, stock exchange
centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping, malls, railways,
airports, harbors, etc.
4. Specifications:
|
Model No. |
DS-AO-P8 |
|
Pixel Pitch |
8mm |
|
Module Size |
256*128mm |
|
Module Resolution(pixels) |
32*16 |
|
Cabinet Size |
1024mm×1024mm |
|
Panel Resolution(pixels) |
128×128 |
|
Pixel Configuration(RGB) |
SMD 3 in 1 |
|
Pixel Density(pixels/㎡) |
15625 |
|
Brightness(cd/㎡) |
7000 |
|
Best Viewing Distance(m) |
6-50 |
|
Average Power Consumption(W/㎡) |
300 |
|
Waterproof Level |
IP65 |
|
Drive Method |
1/4scan |
|
LED SPEC |
3535 |
|
Viewing Angle |
140°(H)/140°(V) |
|
Operating Temperature |
–40~100 |
|
Video Frame Rate(Hz) |
≥ 60HZ |
|
Display Refresh Rate(Hz) |
≥ 1000HZ |
|
Grey Level(colors) |
16.7million |
|
MTBF |
≥50,000 hours |
|
Lifespan |
≥100,000Hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Wavelength |
R 620-625 G 520-525 B 470-475 |
|
Graphics Card |
DVI Graphics card |
|
Video Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
|
Control System |
LINSN |
|
Software |
LED studio 10.0 |
|
Installation |
Wall mount, hung and stand structure |
5. Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
6. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
7. Package
Carton. Fumigation-Free wooden case or Flight case
8. Control System Connection
GETRON Controls system
9. Our products have three unique advantagess
(1) Our module shell is aluminum,other companies are plastic.so it is lighter and thinner.
(2) Our module have strong waterproof and heat-dissipation, the module can work in the water of 100 degrees or
40 degrees blow zero environment.
(3) Display can work under extremely cold ,heat,humidity and other extreme environments.
