Product Details:
Payment & Shipping Terms:
|
| Features: | Lightweight, High-definition | Operating Voltage: | 220±10% Or 110±10% |
|---|---|---|---|
| Pixel Density: | 40000/㎡ | Pixel Pitch: | 5mm |
| Product Name: | Flexible LED Panels | View Angle: | 120°/120° |
| High Light: | led advertising displays,led video display |
||

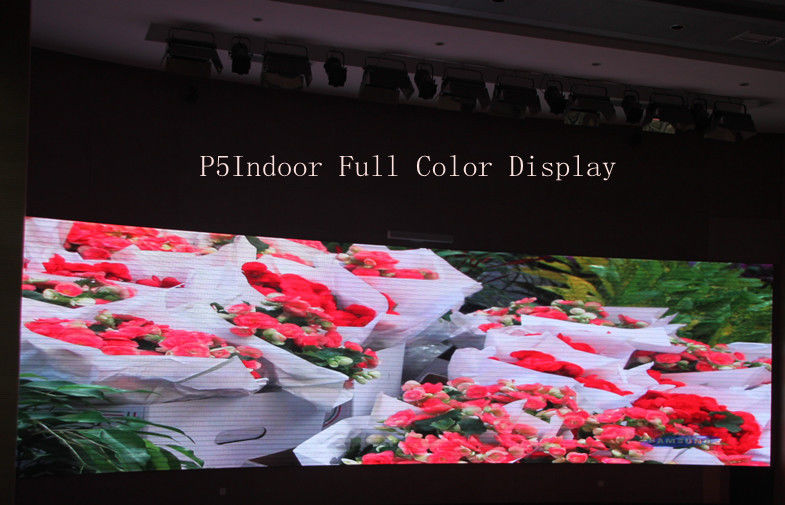

P5mm Flexible LED Panels For Wedding Ceremony , High Brightness LED Display
Product Description:
Application
LED flexible screen is one of the most flexible and lightweight LED video screens on the market. They are
easy to operate and they can be set up in a matter of minutes. We offer high resolution LED video screens
to display videos with detail. Our panels easily attach together with our quick lock system to make as larger
screen as you may want. They are flexible in all directions to allow you to bend and shape around
structures for a more creative effect. They are 60 to 90% lighter weight than most other LED video screens.
You can use any computer with a DVI-D connection to send a video or image source to the screen via a
single sending unit. Each panel has a card input and output for signal connections. For transportation the
panels simply fold into themselves and are stored in a road case. Flex LED systems have been used on
major concert tours and television events. Flexible LED panels are perfect for trade shows, arenas,
theaters, universities, concerts, events and more.
Technical Parameters:
The main parameter
P5 Integrated 3in1 SMD Series | |
Physical Pixel Pitch | 5mm |
Module Size | 160*160mm |
Pixel Density | 40000/㎡ |
Pixel Configuration | 1R1G1B SMD3528 |
Best Viewing Distance | 5m |
View Angle(Horizontal) | 120°/120° |
Brightness | ≥1200cd/㎡ |
Driving Method | 1/16 Constant Driving |
Control Mode | Real Pixel |
Cabinet Size | 640*480mm |
Cabinet Resolution | 128*96 |
Cabinet Weight | 21kg |
Maximum Power Consumption | 1200W/㎡ |
Operating Voltage | 220±10% or 110±10% |
Feature
1. Flexible--It is capable of being flexible, convex, concave even twisted for to be used for any indoor conventional applications.
2. Integration System--Separate power supply system and data transmission system to make screen low heat and image quality.
3. Easy Installation --Full backup magnets system to attach on any mental sheet.
4. Long-distance power supply--Small Cable, clean back side, and save space.
5. With a very high refresh rate, the images in the screen are much more true to nature and there is no lose of visualization when using camera for broadcasting.
6. Super Thin--It is 14mm depth, very slim body.
7. Lightweight--0.38kg/0.84lbs per tile to save labor and transportation cost. Unique design out of box.
8. Plugging system--Safety plugging system
Note: Our company products are constantly upgrading, the above parameters is for reference only, please
refer to the actual parameters prevail
