3 In 1 View Angle 160° Full Color P8 Flexible LED Screen 1R1G1B SMD0805

Large Image : 3 In 1 View Angle 160° Full Color P8 Flexible LED Screen 1R1G1B SMD0805

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	D-King
Certification:	CE RoHS
Model Number:	D-King P8

Payment & Shipping Terms:

Minimum Order Quantity:	1 Square Meters
Price:	Negotiate
Packaging Details:	wooden box or flight case
Delivery Time:	10-25 working days after receipt your deposit
Payment Terms:	30% by T/T as deposit, balance by T/T before delivery
Supply Ability:	4000 square Meters Per Month

Contact Now

Detailed Product Description

Features:	High-definition, Dust-proof	Module Size:	256*128mm
Pixel Configuration:	1R1G1B SMD0805	Pixel Density:	15625/㎡
Pixel Pitch:	8mm	Product Name:	Flex Led Screen
View Angle:	160°/120°
High Light:	led advertising displays , led video display

3 In 1 View Angle 160° Full Color P8 Flexible LED Screen 1R1G1B SMD0805
Product Description:
Feature
1. Flexible--It is capable of being flexible, convex, concave even twisted for to be used for any indoor
conventional applications.
2. Integration System--Separate power supply system and data transmission system to make screen low heat and image quality.
3. Easy Installation --Full backup magnets system to attach on any mental sheet.
4. Long-distance power supply--Small Cable, clean back side, and save space.
5. With a very high refresh rate, the images in the screen are much more true to nature and there is no lose
of visualization when using camera for broadcasting.
6. Super Thin--It is 14mm depth, very slim body.
7. Lightweight--0.38kg/0.84lbs per tile to save labor and transportation cost. Unique design out of box.
8. Plugging system--Safety plugging system
Technical Parameters:
The main parameter

P8 Integrated 3in1 SMD Series
Physical Pixel Pitch	8mm
Module Size	256*128mm
Pixel Density	15625/㎡
Pixel Configuration	1R1G1B SMD0805
Best Viewing Distance	7.5m
View Angle(Horizontal)	160°/120°
Brightness	≥1000cd/㎡
Driving Method	1/8 Constant Driving
Control Mode	Real Pixel
Cabinet Size	1024*768mm
Cabinet Resolution	128*96
Cabinet Weight	35kg
Maximum Power Consumption	1000W/㎡
Operating Voltage	220±10% or 110±10%

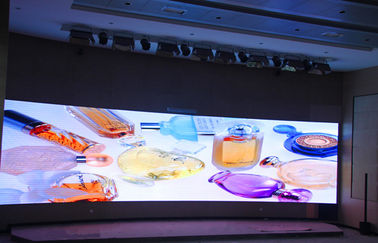

Application
LED flexible screen is one of the most flexible and lightweight LED video screens on the market. They are
easy to operate and they can be set up in a matter of minutes. We offer high resolution LED video screens
to display videos with detail. Our panels easily attach together with our quick lock system to make as larger
screen as you may want. They are flexible in all directions to allow you to bend and shape around structures
for a more creative effect. They are 60 to 90% lighter weight than most other LED video screens. You can
use any computer with a DVI-D connection to send a video or image source to the screen via a single
sending unit. Each panel has a card input and output for signal connections. For transportation the panels
simply fold into themselves and are stored in a road case. Flex LED systems have been used on major
concert tours and television events. Flexible LED panels are perfect for trade shows, arenas, theaters,
universities, concerts, events and more.
Note:
Our company products are constantly upgrading, the above parameters is for reference only, please refer
to the actual parameters prevail
