China P16 DIP Outdoor Led Display Boards Video wall for advertising or stage

Large Image : China P16 DIP Outdoor Led Display Boards Video wall for advertising or stage

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	S&B
Certification:	CE,RoHS，CCC
Model Number:	SBO-P16
warranty:	36 months

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable
Packaging Details:	Plywood case ; flight case
Delivery Time:	10~20 days
Payment Terms:	T/T
Supply Ability:	5000sq.meter / Month

Contact Now

Detailed Product Description

High Light:

outdoor led display board

led moving display boards

P16 DIP Outdoor Led Display Boards Video with High Resolution 6500nits

2011 Asian cup LED supplier

1. CE&RoHS certificate

2. 36 months warranty and Life long free tech-support

3.Excellent contrast ratio, high resolution/high definition

4.Perect uniformity and no mosaic

5. Waterproof IP65

6. Light weight and easy to install

7. Available models: P10, 12, 16, 20, 25, 31.25, ect.

Application:

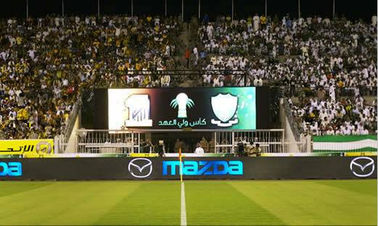

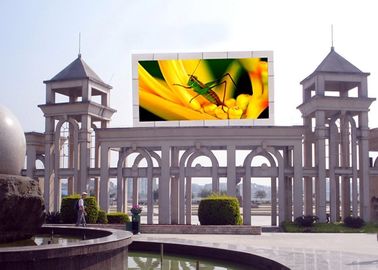

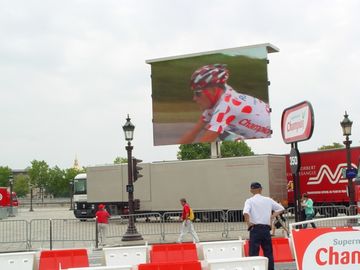

Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;

Advantage:

1. High Contrast ratio: 4000:1

2. First-class LED chip

3. Clear vivid image quality

4. Long life time

5. Easy Installation & Operation

6. Convenient Servicing

SBO-P16 (Pitch 16mm outdoor full color)
Colour temperature	5000~9000 k
Pixel structure	φ5 oval lamp, 1R1G1B
Pixel pitch	16mm
Pixel density	3, 906 dots/㎡
Luminance	6, 500cd/㎡
Module dimension	256mm(W) * 256mm(H)
Module resolution	16 pixel(W) * 8 pixel mm(H)
Cabinet dimension	1024 * 768mm
Cabinet resolution	64 * 48
Cabinet area	0.786 sq. meter
Optimal visual distance	>15m
Visual angel	110 / 50 degree (H/V)
Max power consumption	≤1000w / ㎡
Average power consumption	≤600w / ㎡
Brightness adjustment	Adjust according to the environment
Brightness adjustment	brightness software (0%-100%adjustable)
Gray scale	point by point 4096 gray grade levels of
Gray scale	each color, 16 bits γ correction available
Drive mode	Static, constant current
Frame frequency	≥60HZ
Refresh frequency	≥1000HZ
Input voltage	AC 90~260 volts
Operation temperature	﹣40℃~ +65℃
Operation humidity	10％～90％
Input signal	S-video, RF, RGB, Yuv, YC, composite…
Control system	DVI card + master control card + receiver card
MTBF	>5000 hrs
Life span (50% brightness)	100, 000 hrs
Malfunction dot rate	1/10000
Ingress protection rate (Front/ rear)	IP65 / IP54
Cabinet material	Epoxy paint coated, aluminum / iron
Application:	Rental / Permanent installation available
