Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P55mm | LED Lamp: | SMD 3-in-1 3535 |
|---|---|---|---|
| Viewing Angle: | H: 120°; V:120° | Transparency: | >85% |
| Mateiral: | Plastic | Dot Color: | Milky / Transparent |
| IP Grade: | IP65 / IP66 | Connection: | Magnets Buckles |
| High Light: | flexible led display screen,sport LED display |
||
Outdoor / Indoor Transparent P55mm Flexible Led Display Plastic Durable Material
Main Feature:
Flexible soft led mesh made by separate led pixels, 32dots or more for one string
Modular design, fast set-up, take-down and replacement
Many shapes could be made such as square, rhombus, double-sided, ball, column, etc.
3D effect available with double-sided display
Magnetic buckles make connection fast, perfectly for rental application
More than 85% Transparency design making whole screen as beautiful multiple curtain
Power faulty diagnosis & alarm via internet
Support LED String’s fault diagnosis, system automatically send fault info to client
DMX512 available with Artnet controller to make video changing with music
IP65/IP66, suitable for outdoor application besides indoor usage
Application:
Flexible screen perfectly used for stage, events, shows, concerts, festival celebration, etc.
Specification:
| Soft Creative LED Display | Unit | S1-55 | S2-55 | ||
|---|---|---|---|---|---|
| Dot size(W×H×D) | mm/dot | 18x18x10.5/18x18x13.5mm | 32x30x22.5mm | ||
| Dot mask shape | ﹣ | Flat / Domed | Flat | ||
| Dot weight | g/dot | 6 | 30 | ||
| LED Quantity | ﹣ | 1 | 1 / 2 / 3 / 4 / 8 | ||
| Power consumption(max/ave) | W/tile | 150 / 75 | >150 / >75 | ||
| Brightness | cd/㎡ | 900 | >900 | ||
| Working power | VAC,Hz | AC110/220V, 50/60 Hz | |||
| Pixel pitch | mm | 55 | |||
| Pixel density | pixels/sqm | 330 | |||
| Colors | ﹣ | 16.7 million / 68.7 billion | |||
| Processing | bit/color | 8 / 12 | |||
| Refresh rate | Hz | >1000 | |||
| LED type | ﹣ | RGB 3-in-1 SMD 3535 | |||
| Viewing angle(H/V) | degree | 120° H / 120° V | |||
| Control System | ﹣ | Synchronous / Asynchronous | |||
| Dot mask color | ﹣ | Milky / Transparent | |||
| Dot base color | ﹣ | White / Black | |||
| Cable color | ﹣ | White / Black / customzied | |||
| Screen panel connection | ﹣ | Magnets buckles | |||
| Working temperature | ℃ | minus 20 ~ 45 | |||
| Working humidity | RH | 10%~90% | |||
| IP rating | ﹣ | LED dots: IP65; Control box: IP54 | |||
| Lifetime | hrs | 80,000 | |||
| Certifications | ﹣ | CE, Rohs | |||
Our service :
1).Price : High cost-effective price based on high quality products.
2).Automatical production : Most procedures including selecting LED lamps,PCB soldering, SMD,
cable making ,etc.are operated by automatic machines
3).Quality control : From material selection to production, and from sample test to screen aging, nearly
all steps are controlled under strict regulations, which is the guarantee of the high reliability.
4).Service: Warranty is up to 2 years, Service time available 24 hoursx7 days.

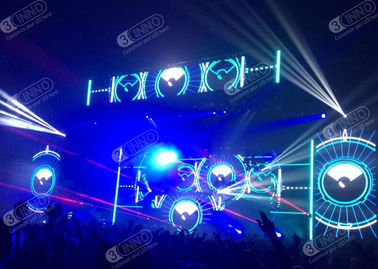

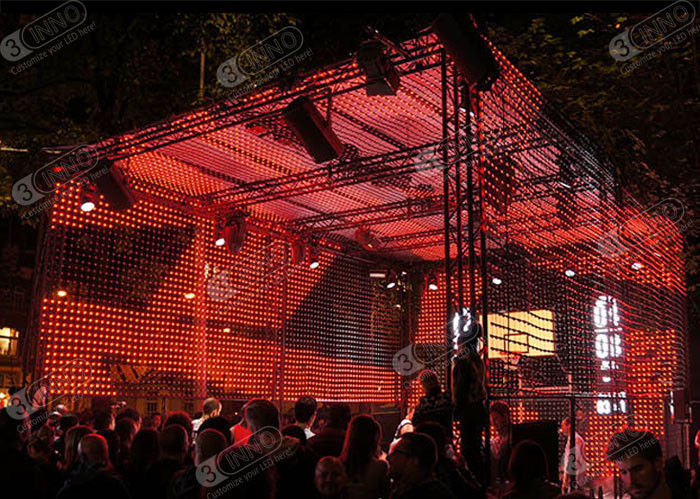

Photo :
