Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P8 Mm | LED Lamp: | SMD 3-in-1 3528 |
|---|---|---|---|
| Pixel Density: | 15,625 Pixels/sqm | Brightness: | > 1100 Nits |
| Module Size: | 256* 112mm (W*H) | Module Resolution: | 32 * 14 Pixels (W*H) |
| Characteristic: | Soft | Screen Size: | Customized |
| High Light: | flexible led display screen,sport LED display |
||

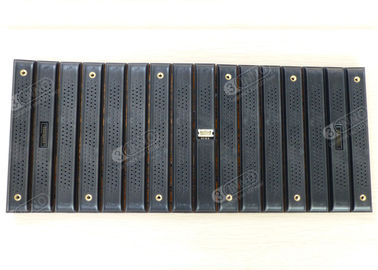

Indoor Full Color Creative LED Circle, Column or Irregular Display Made By P8 Soft Module
Main Feature:

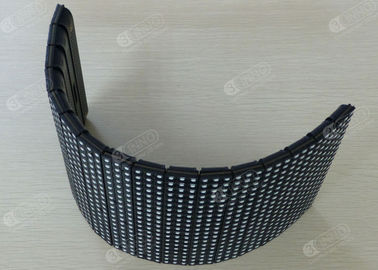

Soft and flexible enough to bend any shape as you want.
Irregular screens like ball, column,etc. is easily made by complete soft module.
360 degree viewing angle screen easily made, attractive to the audience.
Reliable quality achieved by high quality components, and high standard quality control.
Easy handing and maintenance with universal control system and accessories.
Application:
Perfect creative screen attractive to audience often used in shopping mall, restaurants, hotel,
convention center, concerts, theaters, etc.
After-sale service:
1. Free technician training.
2. Complaint response 24hrs service, maintenance solution 48 hours service,
3. Repair service;
4. On-site service for important projects, such as shop opening, celebrations, live shows, etc.
Specification:
| Soft Creative LED Module | Unit | SM-i8 | |||
|---|---|---|---|---|---|
| Pixel pitch | mm | 8 | |||
| Pixel density | pixels/㎡ | 15,625 | |||
| Pixel configuration | ﹣ | 3-in-1 SMD 3528 | |||
| Lamp viewing angle(H/V) | degree | 140/140 | |||
| Color temperature | K | 5000~9500 | |||
| Processing | bit/color | 14 | |||
| Colors | trillion | 4.39 | |||
| Brightness | cd/㎡ | >1100 | |||
| Refresh rate | Hz | >800 | |||
| Driver IC | ﹣ | MBI | |||
| Module size(W×H) | mm | 256*112 | |||
| Module resolution(W×H) | pixels | 32*14 | |||
| Module working voltage | V | DC 5V | |||
| Power supply input | VAC,Hz | 110/220,50/60 | |||
| Power consumption(max/ave) | W | 500/250 | |||
| Control system | ﹣ | Nova / Linsn | |||
| Display content | ﹣ | Pictures, Videos , Animation ,etc. | |||
| Working temperature | ℃ | ﹣20 ~50 | |||
| Storage temperature | ℃ | ﹣35 ~85 | |||
| Working humidity | RH | 10%~90% | |||
| Service access | ﹣ | Rear | |||
| Installation | ﹣ | Fixed | |||
| MTBF | Hrs | 10,000 | |||
| Life span | Hrs | 100,000 | |||
| IP rating | ﹣ | IP64 | |||
| Package | Wooden box | ||||
Case photo:
