Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P35 / P40 / P55 / P80mm | LED Lamp: | 3in1 SMD 3535 |
|---|---|---|---|
| Brightness: | 400~2000 Nits | Refresh Rate: | >1000 Hz |
| Material: | Plastic | 3D: | Available |
| Installation: | Hanging / Fixed | Panel Size: | Customized |
| High Light: | indoor LED display signs,outdoor full color LED display |
||
Outdoor / Indoor IP65 Soft Concert LED Display P35 / P40 / P55 / P80mm
Main Feature:
Flexible soft led mesh made by separate led pixels, 32dots/string or more;
Modular design, fast set-up, take-down and replacement;
3D effect available with double-sided display;
Magnetic buckle make connection fast, perfect for rental;
Many shapes could be made such as square, rhombus, double-sided, ball, column, etc.;
90% Transparency design ;
IP65/IP66, suitable for outdoor application besides indoor usage;
Multiple installation like hanged up, fixed on wall,etc.;
Lightweight, Fast assembly, Small space, Transparent;
Pixel pitch from P40mm to P160, also customization available ;
Central power box ensures separate power & signal supporting;
Power backup ensures no influence on screens when power failure;
Support arbitrary tracing pixels & adjustable RGB;
Default play lists automatic playback, real-time update;
Support LED String’s fault diagnosis, system automatically send fault info to client;
Application:

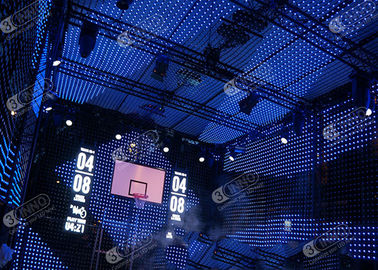

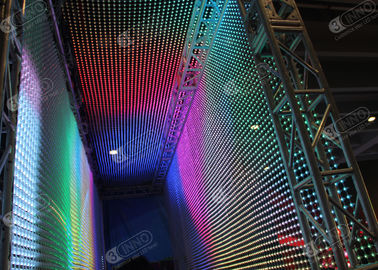

Widely used in nightclubs, stage design, large building facade,etc.
Specification:
| Soft Concert LED Display | Unit | S1-35 | S1-40 | S1-55 | S1-80 |
|---|---|---|---|---|---|
| Pixel pitch | mm | 35 | 40 | 55 | 80 |
| Pixel density | pixels/sqm | 816 | 625 | 330 | 156 |
| Brightness | cd/㎡ | 2200 | 1500 | 900 | 420 |
| Power consumption(max/ave) | W/tile | 370/180 | 280/140 | 150/75 | 70/35 |
| Dot size(W×H×D) | mm/dot | 18x18x10.5mm | |||
| Dot weight | g/dot | 6 | |||
| LED type | ﹣ | RGB 3-in-1 SMD 3535 | |||
| Viewing angle(H/V) | degree | 120° H / 120° V | |||
| Processing | bit/color | 8 / 12 | |||
| Colors | ﹣ | 16.7 million / 68.7 billion | |||
| Refresh rate | Hz | >1000 | |||
| Operating power | VAC,Hz | AC110-240V, 50/60 Hz | |||
| Operating temperature | ℃ | minus 20 ~ 45 | |||
| Operating humidity | RH | 10%~90% | |||
| IP rating | ﹣ | LED dots: IP65; Control box: IP54 | |||
| Lifetime | hrs | 80,000 | |||
| Control System | ﹣ | Synchronous / Asynchronous | |||
| Certifications | ﹣ | CE, Rohs | |||
After-sale service:
1.Free technician training.
2.Products usage tracking.
3.Customer satisfaction investigation.
4. Repair service;
5. Complaint response does not exceed 24 hours; maintenance guidance and problem solution
supplied within 48 hours.
6. On-site service for important projects, such as live shows, celebrations, and so on.

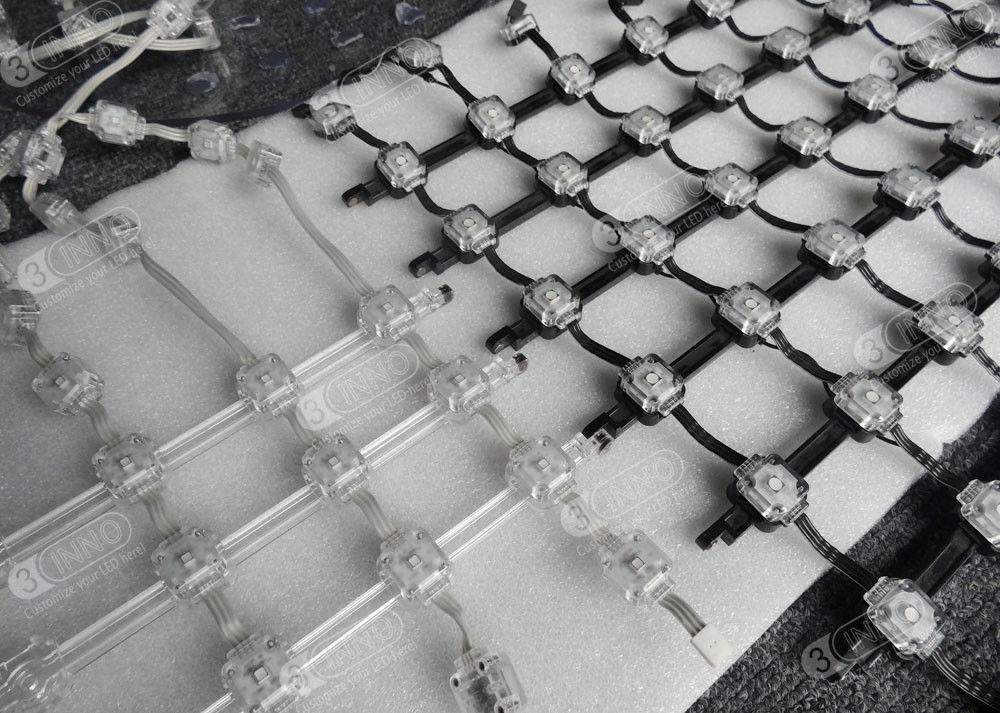

Component photo:
