Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P40 / P55 / P80 / P100 Mm | LED Lamp: | 3in1 SMD 3535 |
|---|---|---|---|
| Brightness: | 400~3000 Nits | Refresh Rate: | >1000 Hz |
| Material: | Plastic | 3D: | Available |
| Mask Color: | Transparent / Milky / Customized | IP Rating: | IP65 |
| High Light: | indoor LED display signs,indoor LED screen |
||
Transparent Flex Concert LED Display Waterproof SMD LED Soft P40 / P55 / P80 / P100 mm
Main Feature:
More than 80% Transparency design ;
3D effect available with double-sided display;
Support arbitrary tracing pixels & adjustable RGB;
Multiple installation like hanged up, fixed on wall,etc.;
Default play lists automatic playback, real-time update;
Lightweight, Fast assembly, Small space, Transparent;
Magnetic buckle make connection fast, perfect for rental;
Modular design, fast set-up, take-down and replacement;
Pixel pitch from P40mm to P160, also customization available ;
Central power box ensures separate power & signal supporting;
Flexible soft led mesh made by separate led pixels, 32dots/string;
IP65/IP66, suitable for outdoor application besides indoor usage;
Power backup ensures no influence on screens when power failure;
DMX512 available with Artnet controller to make video changing with music;
Support LED String’s fault diagnosis, system automatically send fault info to client;

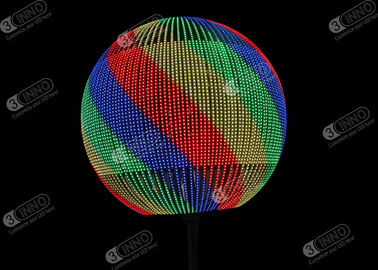

Many shapes could be made such as square, rhombus, double-sided, ball, column, etc.;
Application:

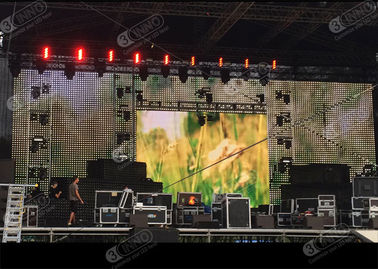

Widely used in nightclubs, stage design, large building facade,etc.
Specification:
| Soft Concert LED Display | Unit | S2-40 | S2-55 | S2-80 | S2-100 |
|---|---|---|---|---|---|
| Pixel pitch | mm | 40 | 55 | 80 | 100 |
| Pixel density | pixels/sqm | 625 | 330 | 156 | 100 |
| Brightness | cd/㎡ | ≧1500 | ≧900 | ≧500 | ≧400 |
| Power consumption(max/ave) | W/tile | 300/150 | 180/80 | 100/50 | 60/28 |
| Dot size(W×H×D) | mm/dot | 30x26x16mm(S2-40) ; 32x30x22.5mm(S2-55,80,100) | |||
| Dot weight | g/dot | <30 | |||
| LED type | ﹣ | RGB 3-in-1 SMD 3535 | |||
| LED Quantity | ﹣ | 1 / 2 / 3 / 4 / 8 | |||
| Viewing angle(H/V) | degree | 120° H / 120° V | |||
| Processing | bit/color | 8 / 12 | |||
| Colors | ﹣ | 16.7 million / 68.7 billion | |||
| Refresh rate | Hz | >1000 | |||
| Operating power | VAC,Hz | AC110-240V, 50/60 Hz | |||
| Operating temperature | ℃ | minus 40 ~ 45 | |||
| Operating humidity | RH | 10%~90% | |||
| IP rating | ﹣ | LED dots: IP66; Control box: IP54 | |||
| Lifetime | hrs | 80,000 | |||
| Control System | ﹣ | Synchronous / Asynchronous / DMX 512 | |||
| Certifications | ﹣ | CE, Rohs | |||
After-sale service:
1.Free technician training.
2.Products usage tracking.
3.Customer satisfaction investigation.
4. Repair service;
5. Complaint response 24hrs service, maintenance solution 48 hours service,
6. On-site service for important projects, such as live shows, celebrations, etc.

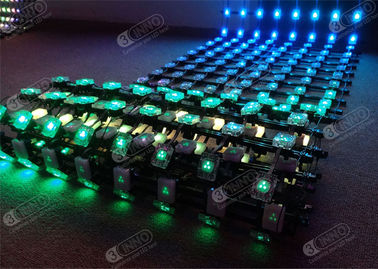

Component photo:
