Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Refresh Rate P5.68 IndoorLED Display Cabinet Aluminum-alloy 500 X 500 | Application: | Indoor |
|---|---|---|---|
| Size Of Panel: | 250x250 | Resolution: | 88x88 |
| Brightness: | 1800cm/d | Feature: | Refresh Rate≥1200. |
| Standard: | 3C/GMC/ISO9001/CCPC | Type: | Rental |
| High Light: | Led Video Display,High Brightness Led Display |
||

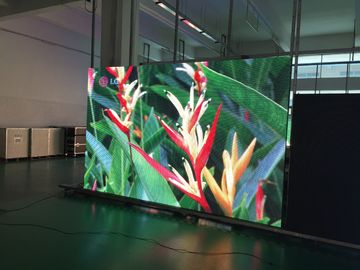

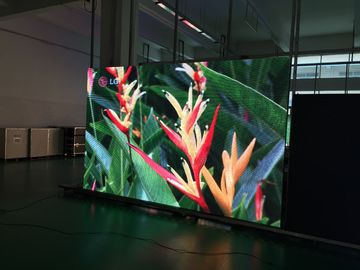

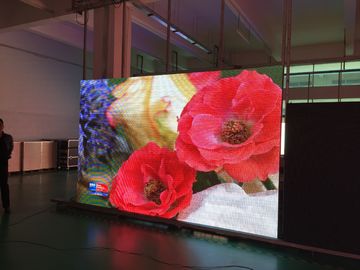

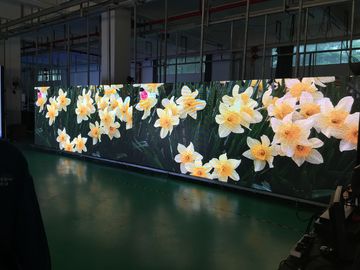

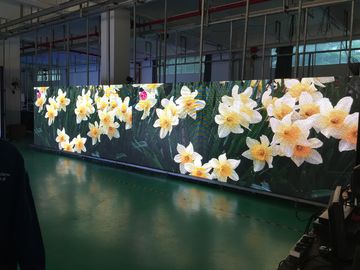

High Refresh Rate P5.68 Indoor LED Display Cabinet Aluminum Alloy 500 x 500
Description
1. Easy to Install and Uninstall without tools.
2. Lower maintenance cost .
3. High Gray Scale
4. 1/8 Scan
specifications
1. Indoor led Display technical parameter
|
Pixel Density(pixel/㎡) |
30995 |
|
White Balance Brightness (cd/㎡) |
≥1800(adjustable) |
|
Max Power Consumption |
300W/cabinet |
|
Average Power Consumption |
150W/cabinet |
|
Color Temperature |
3200-9300(adjustable) |
|
View Angle |
Horizontal 110°；Vertical 110° |
|
Best Viewing Distance(m) |
6m—100m |
|
Display Work Method |
1/11 scan |
|
Digital Processing |
14 bit |
|
Gray Scale |
65536 levels per color |
|
Refresh Frequency (Hz) |
≥1200 |
|
Input Signal |
Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc |
|
Waterproof |
No |
|
Working Temperature(ºC) |
-20～+45 |
|
Humidity(RH) |
10% - 80% |
|
Stored Temperature (ºC) |
-30～+60 |
|
Lifetime (50%Brightness)(Hours) |
≥100,000 |
|
Input Voltage(VAC) |
AC 220(or 110V) |
|
Input Power Frequency(Hertz) |
50 to 60 |
|
Data Connection |
Super CAT6 Cable or Fiber |
|
Operating System |
Windows(98/2000/XP/Vista) |
|
Blind Spot Rate |
＜0.00001 |
|
Control Distance |
CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
|
Panel Input Format (With Video Processor) |
VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
|
Earth Leakage Current(mA) |
＜2 |
|
Pixel Configuration |
SMD3528 |
Pixel Pitch | 5.68 mm |
| Module Resolution |
44x44 |
Module Size(W*H) |
250mm x 250mm |
|
Weigth Per Module |
0.52kg |
Max Power Consumption |
35w |
3. Indoor LED Display Cabinet
|
Cabinet Size(W*H) |
500mm × 1000mm |
Module Qty |
8 pcs |
|
Cabinet Resolution |
88 x 176 |
Cabinet Area |
0.5㎡ |
|
Weight Of One Cabinet |
12.2 kg |
Cabinet Pixel |
30995 |
|
Cabinet Flatness |
＜0.2/㎡ |
Cabinet Material |
Aluminum-alloy Cabinet |
Applications
This Indoor Full Color LED Display Are Very Popular In Commercial Advertising Field . such as Community, bus station, schools, telecommunications, customs, stadiums, studio,shopping malls, airports, etc;
competitive advantage
1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price.
4. High Quality Driving IC .
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.
