Product Details:
Payment & Shipping Terms:
|
| Product Name: | DIP P10.mm Outdoor Led Display Cabinet | Pixel Pitch: | 10 Mm |
|---|---|---|---|
| Size Of Panel: | 160x160 | Brightness: | 7000 |
| Usage: | Advertising | Pixel Density: | 10000 |
| Weight: | 45 KG For Each Cabinet | ||
| High Light: | Led Video Display,High Brightness Led Display |
||

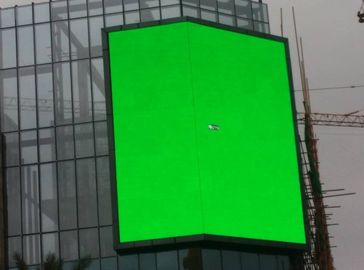

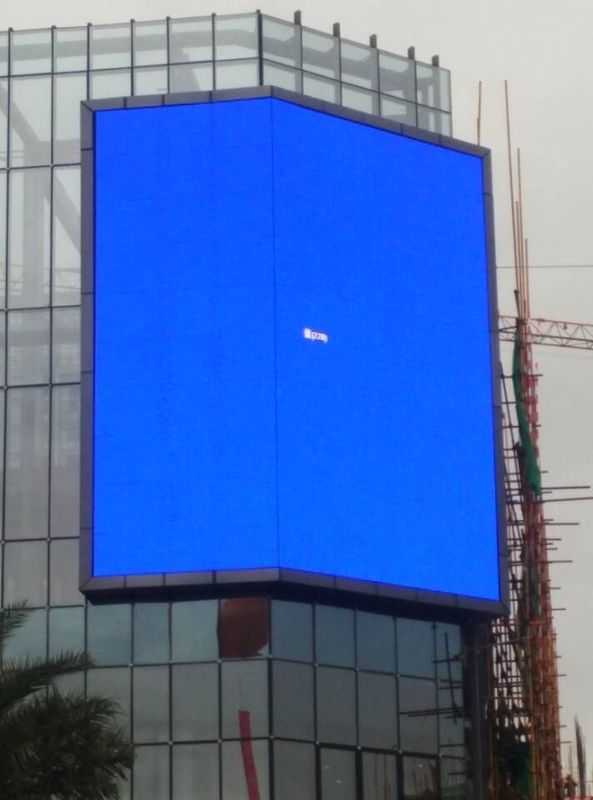

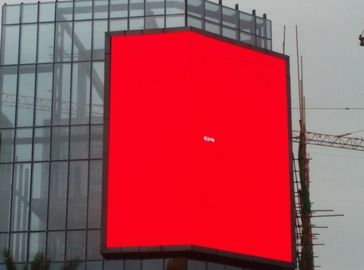

IP65 Waterproof LED Display Cabinet For Building , Aiports , Parks , Driving Cinema
Description
1) Iron Anti-rust Cabinet
2) IP65 Water Proof
3) High Gray Scale
4) More than 14Bit Processor
5) Enviroment Friendly
specifications
1. Outdoor led Display technical parameter
Pixel Density(pixel/㎡) | 10000 |
White Balance Brightness (cd/㎡) | ≥7000(adjustable) |
Max Power Consumption | 800W/cabinet |
Average Power Consumption | 400W/cabinet |
Color Temperature | 3200-9300(adjustable) |
View Angle | Horizontal 110°；Vertical 110° |
Best Viewing Distance(m) | 10m—150m |
Display Work Method | 1/4 scan |
Digital Processing | 14 bit |
Gray Scale | 65536 levels per color |
Refresh Frequency (Hz) | ≥1200 |
Input Signal | Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc |
Waterproof | Yes |
Working Temperature(ºC) | -20～+45 |
Humidity(RH) | 10% - 80% |
Stored Temperature (ºC) | -30～+60 |
Lifetime (50%Brightness)(Hours) | ≥100,000 |
Input Voltage(VAC) | AC 220(or 110V) |
Input Power Frequency(Hertz) | 50 to 60 |
Data Connection | Super CAT6 Cable or Fiber |
Operating System | Windows(98/2000/XP/Vista) |
Blind Spot Rate | ＜0.00001 |
Control Distance | CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
Panel Input Format (With Video Processor) | VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
Earth Leakage Current(mA) | ＜2 |
Pixel Configuration | DIP346 | Pixel Pitch | 10mm |
| Module Resolution | 16x16 | Module Size(W*H) | 160mm x 160mm |
Weigth Per Module | 0.47kg | Max Power Consumption | 18w |
3. Outdoor LED Display Cabinet
Cabinet Size(W*H) | 960mm × 960mm | Module Qty | 36 pcs |
Cabinet Resolution | 96 x 96 | Cabinet Area | 0.9216㎡ |
Weight Of One Cabinet | 45 kg | Cabinet Pixel | 10000 |
Cabinet Flatness | ＜0.2/㎡ | Cabinet Material | Steel Cabinet |
Applications
The RGB LED Display Are Very Popular In Outdoor Field. This Type Screen
Are Popular Used Outdoor Shopping Center ,Outdoor Building,Foodball Field,crossroad,
highway,Concert,airport etc;
competitive advantage
1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price.
4. High Quality Driving IC .
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.
