China Signage Display Online Marketplace
High quality, Best service,Reasonable price. |
|
Product Details:
Payment & Shipping Terms:
|
| Product Name: | Light Weight Low Pixel P2.5mm Led Display Cabinet Die Casting Aluminum | Application: | Indoor |
|---|---|---|---|
| Size Of Panel: | 160*80 | Resolution: | 64*32 |
| Brightness: | 1200cm/d | Feature: | Refresh Rate≥1200. |
| Standard: | 3C/GMC/ISO9001/CCPC | Type: | Rental |
| High Light: | High Brightness Led Display,Led Display Module |
||
Low Pixel P2.5mm LED Display Module Die Casting Aluminum Cabinet
Description
1. More easy to carry.
2. Super Light Weight
3. Combined with the control system which has more than 14bit processing ,effecting a higher gray level. 4. Red,green and blue LED chips incorporated encapsulation ,better perspective. Strong adaption to environment.
specifications
1. Indoor led Display technical parameter
|
Pixel Density(pixel/㎡) |
30995 |
|
White Balance Brightness (cd/㎡) |
≥1800(adjustable) |
|
Max Power Consumption |
300W/cabinet |
|
Average Power Consumption |
150W/cabinet |
|
Color Temperature |
3200-9300(adjustable) |
|
View Angle |
Horizontal 110°；Vertical 110° |
|
Best Viewing Distance(m) |
6m—100m |
|
Display Work Method |
1/11 scan |
|
Digital Processing |
14 bit |
|
Gray Scale |
65536 levels per color |
|
Refresh Frequency (Hz) |
≥1200 |
|
Input Signal |
Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc |
|
Waterproof |
No |
|
Working Temperature(ºC) |
-20～+45 |
|
Humidity(RH) |
10% - 80% |
|
Stored Temperature (ºC) |
-30～+60 |
|
Lifetime (50%Brightness)(Hours) |
≥100,000 |
|
Input Voltage(VAC) |
AC 220(or 110V) |
|
Input Power Frequency(Hertz) |
50 to 60 |
|
Data Connection |
Super CAT6 Cable or Fiber |
|
Operating System |
Windows(98/2000/XP/Vista) |
|
Blind Spot Rate |
＜0.00001 |
|
Control Distance |
CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
|
Panel Input Format (With Video Processor) |
VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
|
Earth Leakage Current(mA) |
＜2 |
|
Pixel Configuration |
SMD2121 |
Pixel Pitch | 2.5 mm |
| Module Resolution |
64x32 |
Module Size(W*H) |
160mm x 80mm |
|
Weigth Per Module |
0.52kg |
Max Power Consumption |
35w |

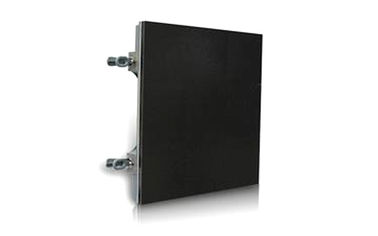

3. Indoor LED Display Cabinet
|
Cabinet Size(W*H) |
480mm × 480mm |
Module Qty |
6*8 pcs |
|
Cabinet Resolution |
192 x 192 |
Cabinet Area |
0.23㎡ |
|
Weight Of One Cabinet |
6.5 kg |
Cabinet Pixel |
30995 |
|
Cabinet Flatness |
＜0.2/㎡ |
Cabinet Material |
Aluminum-alloy Cabinet |
Applications

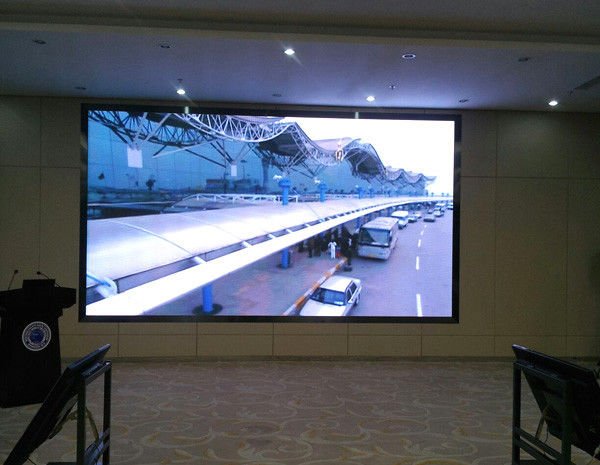

This Indoor Full Color LED Display Are Very Popular In Commercial Advertising Field . such as Community, bus station, schools, telecommunications, customs, stadiums, studio,shopping malls, airports, etc;
competitive advantage
1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price.
4. High Quality Driving IC .
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.
