Product Details:
Payment & Shipping Terms:
|
| Usage: | Indoor | Pitch(mm): | 6 |
|---|---|---|---|
| Pixel Density(dots/㎡): | 27777 | ||
| High Light: | indoor led display screen,led video display |
||

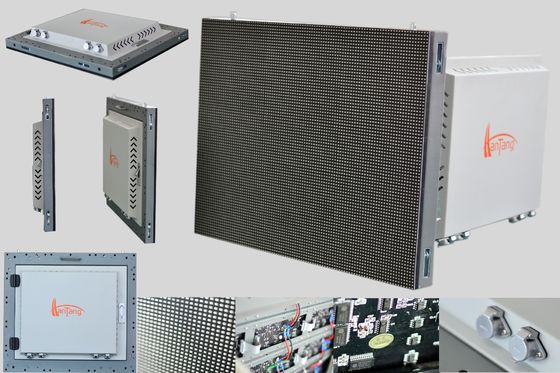

Full Color P6 Indoor Advertising Led Display Screen / Led Display Panel
Features:
• uniform colour technology
• Easy configuration and maintenance
• Lightweight for easy installation
• High refreshment and large viewing angle
• Great for large indoor advertising
| Technical Parameters of P6 indoor LED display | |
| Usage | Indoor |
| Pitch(mm) | 6 |
| Pixel Constitute | 1R1G1B |
| LED Chips--Opto+Silan | R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:Ⅳ(180-200mcd) G:Ⅳ(330-360mcd) G:Ⅳ(95-105mcd) |
| Pixel Density(dots/㎡) | 27777 |
| Module Size(mm) | 192*192 |
| Modules for 1 ㎡(pcs) | 27.1 |
| Recommended Minimum Viewing Distance(m) | >=5 |
| Viewing Angle(°) | V120, H140 |
| Average Power Consumption | 272W/㎡ |
| Brightness (white balance) | >=1800cd/㎡ |
| Refresh rate | >=2000Hz |
| Average NO failure time | 5000 hours |
| Life span | 100000 hours |
| Working temperature | -20 ℃～+65℃ |
| Driving Voltage | 5VDC |
| Working Voltage | 110 to 220VDC |
| Driving mode | 1/8 |
| Display Function | Video, Animation, Graphics, other |
| Operating system | Windows (2000/XP/Vista) |
| Control distance | CAT5 cable:<100 m; Single fiber:<10 km |
