Dustproof DIP Type P16 Outdoor Advertising LED Display Waterproof
Outdoor fixed led display is a type of ideal public information display media for displaying words, images, and TV and video signals. As the development product of modern high and new science and technology and compared with traditional advertising media, led displays outdoor has unmatched advantages. Nowadays, led advertising displays have got wide application in various administrative institutions of the city and have played a favorable role in such aspects of improving image and popularity and bloating exaggerate atmosphere of various activities.
Superior Advantages of Outdoor DIP Type P16 Outdoor Fixed Led Display:
1. High waterproof and dustproof performance
The protective grade can reach IP65, so that this advertising led display can totally adapt to various bad and rainy weather. The structural components all use special surface treatment process, so that the led panel has excellent dampproof and decay resistance performance. The electronic circuits has been processed with three proofings, thus further guaranteeing the dustproof, dampproof and anti-corrosion performance of the product and making sure that the products have strong weather fastness and can be used for long time in outdoor bad environment.
2. Convenient and reliable installation
Our company provides two installation methods for customers to choose from: hoisting installation and overstow installation, for this reason, the installation and disassembly are very fast and convenient, and multiple measures ensure the reliability and safety of the installation of the cabinet.
3. Convenient maintenance
The product design follows the concept of simple and easy maintenance, and uses modular and redundant-free design, which facilitates the maintenance of the product.
4. High brightness
This outdoor display uses LED DIP type tube with high brightness, making your led display advertising have farther visual area.
5. Uniform colors
Our company has strict quality control measures on the LED and chip, and at the same time, the led advertising display can be equipped with brightness and color correction to ensure the uniformity of the brightness and color of the product, thus displaying perfect pictures for you.
6. Adjustable display brightness
The brightness of the led board can be adjusted according to the change of the environment, thus ensuring the optimum visual comfort level of eyes and saving energy and protecting the environment at the same time.
7. Stable and reliable running
International leading cooling technique is used to make sure the led display outdoor advertising works in a constant temperature range. Besides, high quality power supply is used to further guarantee the long-time and stable running of the led display for advertising.
Technical Parameters of P16 Outdoor Fixed Led Display:
| Model | P16 Outdoor Fixed Led Display |
| Pixel Pitch | 16mm |
| Pixel Composition | 1R1G1B |
| LED Type | DIP346 |
| Pixel Density | 3906dots/m² |
| Scanning method | Static Scanning |
| Brightness | 8000cd/m² |
| Working Voltage | AC110V±10%, 50Hz-60 Hz |
| Average Power | 300W/m² |
| Max. Power | 750W/m² |
| Pixel No. on Unit Plate | 16×16 |
| Module Size | 256mm×256mm |
| Level up degree | <1mm |
| Viewable Distance | 16m-500m |
| Viewable Angle | Horizontal: 120°, Vertical: 60° |
| Screen Weight | 40kg/m² |
| Driving Method | Constant current |
| Display Color | 17M~69G colors |
| Bright Adjustment | Manual/Automatic/Remote |
| Grey Scale | 256~4096 |
| Refresh Frequency | 600 Hz~2440Hz |
| Refresh Frame Frequency | 60Hz |
| Display Content | TV picture, ads, video, live streaming video, picture and words |
| Display Mode | 640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640 |
| Control Method | Synchronous, asynchronous, remote and wireless |
| Transmission Distance | 5E cable≤130M Multimode fibre≤500M monomode fibre≤10KM |
| Transmission Distance | ≥72 hours |
| Service Life of Led | 100,000 hours |
| Mean Time Between Failure | ≥10,000 hours |
| Dispersed Incontrollable Point | <0.01% |
| Continuous Incontrollable Point | No |
| Protecting Technology | Waterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage. |
| Temperature of Use Environment | -30℃~+50℃ |
| Moisture of Use Environment | 10%~90% |
| Certifications | CE, ROHS |
Note: The technical parameters are just for reference, please contact us for details.
More Pictures for Your Reference:
Module Picture:

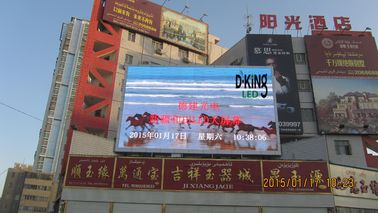

Application Picture:
