Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 10mm |
| Brightness: | 6000 To 8000cd/sqm | Protection Leve: | IP65 |
| Led Chip: | Epistar/Slian | RGB: | 2R1G1B / 1R1G1B |
| High Light: | led screen advertising,led advertising billboards |
||

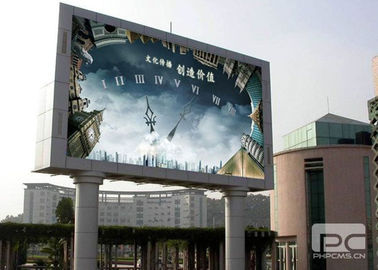

SMD P10 Outdoor Full Color LED Advertising Display module For Parks ,Railway Stations
FEATURES :
♦ Long lifetime: Adopting high quality LED lamps as core material and patent PCB design for the screen, it essentially ensures long lifetime fo the product.
♦Wide view angle: Highly wavelength consistency of LED lamp and 120°horizontal and vertical view angles guarantee viewers can see the playing miages from any direction in front.
♦ Stable performanve: we make a spceial treatment of anti-electromagnetic wave and adopt distribution scan and modular design for the screen and it works more reliable and stables.
♦ Exquisite images:Nonlinearity correction technology makes the images exquisite clear, video images vivid and fidelity.
♦ Excellent flatness: percision design of module frame parts controls the deviation of beighbouring modules within 0.1mm and it has an excellent flatness without mosaic..
♦ High contrast:consistend deep black patent masks and black face lamps make the contrast higher and the color fresher.
♦ Live broadcast: It can support DVI,HDMI, 3G/HD/SC with SDI high definition display mode, suit for TV programes VCDprogrames, DVDprogrames and live broadcasting indoor .
|
Specifications |
|
|
Pitch size |
10mm |
|
Module size |
320mm*160mm |
|
Panel pixel(dots) |
32*16 |
|
Pixel configuration |
1Red,1Green,1Blue(SMD 3-in-1) |
|
LED chip |
Epistar |
|
Color scale |
256-65536grade/10.74 billion colors |
|
Pixel density |
10000/square meter |
|
View angle(H/V) |
120/60degree |
|
Brightness |
≥1200cd/sqm |
|
View distance |
5-300m |
|
Power consumption |
100-1500W/sqm |
|
Operating temperature |
from —25°C to +60°C |
|
Operating humidity |
10%--95%RH |
|
Life time |
100,000hours |
|
Frame speed |
>150frames per second |
|
Refresh frequency |
1000Hz |
|
Control distance |
100m (without relay),single mode fiber: |
|
Power |
110V/220V/380V±15% 50Hz |
|
operating system |
Windows98/Me/2000/Xp |
|
Drive mode |
constant current driving |
|
display mode |
VGA640X480—VGA1600X1024 |
|
IP Grade |
IP54 |
Advantage :
1) With good lightening accordance and no mosaic
2) Led advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
