Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 10mm |
| Brightness: | 6000 To 8000cd/sqm | Protection Leve: | IP65 |
| Led Chip: | Epistar/Slian | RGB: | 2R1G1B / 1R1G1B |
| High Light: | led advertising billboards,led display board for advertising |
||
Waterproof SMD Full Color P10 Outdoor Advertising LED Display Screen Prices for Mall

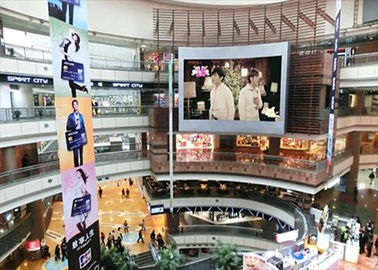

Outdoor Advertising LED Display Screen can be mounted on the building, on the top of the building, or located in the square with stand column, maximize your exposure, you wil be the envy of your neighbors.
1. The first level LED chip from Taiwan Epistar.
2. With pure golden wire connection in LED.
3. Grand A row material for module frame and mask.
4. 4 layers PCB and copper plating thickness > 18mil.
5. Ag alloy solder paster to ensure good soldering on PCB.
6. Stainless steel screws when assembly.
7. Disassembly and assembly are quick and easy.
8. Three years warranty.
Specification :
| Basic Parameter | Pixel pitch (mm) | 10 |
| Pixel Configuration | 1R1G1BDIP346 | |
| Pixel Density(dot/) | 10000/ | |
| Module Resolution(W×H) | 16*16 | |
| Module Size(mm) | 160*160*30mm | |
| Cabinet Resolution(W×H) | 96*96 | |
| Cabinet Size(mm) | 960*960*80mm | |
| Lighting Parameter | Unit brightness, chroma adjust | yes |
| Brightness | ≥6500CD/ | |
| Gray scale | RGB12-16BitsEach | |
| Color temperature (K) | 6500~9500Adjustable | |
| Horizontal / Vertical Viewing Angle (°) | 110/55 | |
| Control system parameter | Scanning mode | Dynamic |
| Frame Frequency (Hz) | ≥60 | |
| Refresh Frequency (Hz) | 200-2000 | |
| Operating Characteristic | Max Power Consumption (W/m2) | ≤600W/ |
| Average Power Consumption (W/m2) | ≤300W/ | |
| IP Rating | Front IP 65,Back IP 55 | |
| Life Span (hrs) | ≥100,000 | |
| Power supply requirement | AC:220×(1±10%)V,50×(1±5%)Hz | |
| Temperature Range (℃) | -20~50 | |
| Humidity Range (RH) | 10%~90%, Nocondensation |
1. Resist all the weathers----Solid
2. Working long time without the fault-----Reliability
3. Reaching the audience from far away---- High brightness
4. Using the high brightness LED with low power consumption----Energy Saving
5. Adapt to different cabinet size, and different cabinet design base on the real 6. using environment---Nimble
7. Low investment, high return ---- Budget friendly
