Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P8.928 Mm | LED Lamp: | Outdoor 3-in-1 SMD |
|---|---|---|---|
| Brightness: | 3000 Nits | Refresh Rate: | >1800 Hz |
| Material: | ABS+Plastic | Application: | Outdoor / Indoor |
| Unit Size: | 1000*1000mm / 1000*2000mm / Customized | Curve: | Available |
| High Light: | outdoor led display,large led screens |
||
Outdoor / Indoor P8.9mm Renal Flexible LED Screen Foldable Waterproof Ultra Thin Display
Feature:
1,Foldable : Foldable and ultra-slim structure could create any irregular shape such as 360°circle, wave, column, stair etc. anything you could imagine.
2.Ultra-lightweight : With plastic material and special design,less than 10KG/sqm, greatly save transportation cost.
3. Ultra-Slim : Screen thickness with maximum 20mm and main part only 9mm is one of thinnest display in the LED screen industry.
4. Fast: Fast installation, dismantling, and maintenance, save much labor and time cost.
5.Compatible : There is no gray loss for outdoor screen used for indoor application even reduce much brightness.
6. IP65 : High protection level IP65, ideal for indoor and outdoor rental application
Application:

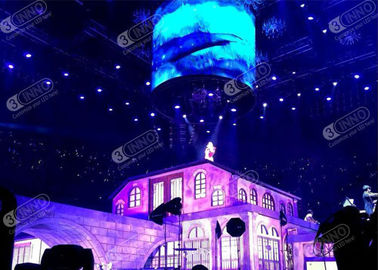

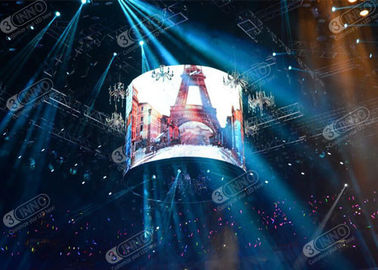

Widely used on outdoor/indoor stage, shows, events, sports, concerts, studios, etc.
Specification:
| Flexible rental led screen | Unit | FL-8 | ||||
|---|---|---|---|---|---|---|
| OPTICAL | Pixel pitch | mm | 8.928 | |||
| Pixel configuration | ﹣ | 3-in-1 SMD | ||||
| Viewing angle(H/V) | degree | 160/160 | ||||
| Resolution per module | pixels | 28×28 | ||||
| Brightness | cd/㎡ | 3000 | ||||
| Color temperature | k | 8000 | ||||
| Brightness/color consistency | ﹣ | <97% / Within±0.003 Cx,Cy | ||||
| Gray scale | ﹣ | 4096 | ||||
| ELECTRONICS | Refresh rate | Hz | ≥1800 | |||
| Processing | bit/color | 12 | ||||
| Colors | billion | 68 | ||||
| Operating power | VAC,Hz | 100-240,50/60 | ||||
| Power consumption(max/ave) | W/sqm | 600/300 | ||||
| Working temperature | ℃ | ﹣20 ~45 | ||||
| Working humidity | RH | 10%~90% | ||||
| Control System | ﹣ | Linsn / Nova | ||||
| Source compatibility with VP | ﹣ | CVBS,YUV, DVI,VGA,S-Video,HDMI,SDI,HDSDI,etc. | ||||
| Life time | Hrs | 85,000 | ||||
| MECHANICAL | Size(W×H×D) | mm/module | 250×250×18 | |||
| Screen unit size(W×H) | mm | 1000×1000 / 1000x2000 / customized | ||||
| Frame material | Plastic | |||||
| Weight | kg/module | 1 | ||||
| Weight | lbs | 2 | ||||
| Serviceability | ﹣ | Rear | ||||
| Installation | ﹣ | Hanging | ||||
| Curve | ﹣ | Available, no limit | ||||
| Serviceability | ﹣ | Rear | ||||
| IP rating | ﹣ | IP65 | ||||
| Hanging beam | 1m / 1.5m | |||||
| Package | Flight case | |||||
Product Description:
Foldable rental LED screen is a new invention which make big revolution in rental screen application compared with traditional LED display, which won the invention patent and Utility model patent internationally.
With this product:.
80% weight saving;
80% transport cost saving;
80% installation time saving;

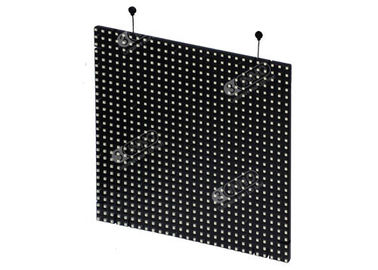

A foldable rental LED screen is composed of many modules(250*250*10mm) connected together by steel wire. It can be folded with 360 degree between each module. The size of screen unit could be 1000*1000mm, 1000*2000mm, and customized by special requirements.
Product Drawings:
Flight Case Photo:
