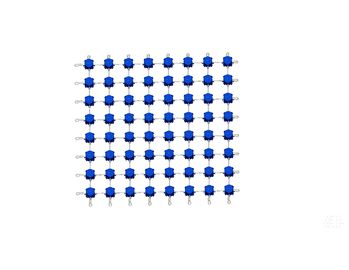

Flexible Led Screen PH100mm Dip Outdoor Led Display Signs For Building Lighting
LED Urban Lighting Solution for City
1. Brief introduction of city led lighting solutions
With the developing of urban construction and leisure needs of the public, city lighting project has being playing an important role to enrich city life and shaping the city's character. But because of its wide coverage, long time lighting and other reasons, also to a certain extent, is a waste of resources to increase the burden of the government. LED lighting products, with its rich colors, long lifetime, high luminous efficiency, energy saving and environmental protection features, it has become the best choice for the city lighting.
Specifications:
|
No |
Item |
specification |
|
1 |
Pixel pitch |
100mm |
|
2 |
Pixel constitution |
DIP346(1R1G1B) |
|
3 |
Pixel density(dots/strip) |
1*16dots |
|
4 |
Strip size |
1600mm*50mm |
|
5 |
IC Driving method |
Constant current |
|
6 |
Scan method |
Static |
|
7 |
Mask |
With mask |
|
8 |
Pixel density(dots/m2) |
100dots/m2 |
|
9 |
White balance(cd/m2) |
500cd/m2 |
|
10 |
Color temperature |
6500K |
|
12 |
Best viewing distance |
300-600M |
|
13 |
Gray scale |
12bit |
|
14 |
Color quantity |
687trillion |
|
15 |
Working Voltage |
20V |
|
16 |
Max power consumption |
140W/ m2 |
|
17 |
Average power consumption |
48W/ m2 |
|
18 |
Control system |
BeijingYutong |
|
19 |
Matrial |
UV-resistant nylon material |
|
20 |
Protection grade |
IP68 |
|
21 |
Weight |
10.8Kg/ m2 |
|
22 |
Connection method |
Hanging-up |
|
24 |
Brightness control method |
Automatically or man set |
|
25 |
Working humidity |
20%～60% RH |
|
26 |
Working Temperature |
-20℃～+60℃ |
|
27 |
Frame frequency |
60HZ |
|
28 |
Refresh frequency |
＞300HZ |
|
29 |
MTBF |
≥10000hours |
|
30 |
Life span |
≥50, 000 hours |
|
31 |
Defects Rate |
＜0.0005 |
|
32 |
Control mehod |
PC →Synchronous→LED screen |
|
33 |
Signal transmission method |
CAT5 net cable transmission |
|
34 |
Structure material |
Wire rope |
|
35 |
Operating system |
WINDOWS(98, 2000, XP, Vista) |
|
36 |
Control distance |
Net cable 100m； Multi-mode optical fiber 300m； Single-mode optical fiber 10km |
DICOLOR company, with many years of LED product development and production experience, relying on industry-leading fully automated production equipment, combined with strict quality control and the entire process worry-free service system, we are ready to create the most valuable lighting solutions for customers.
Application: Our LED lighting products can be used for roads and bridges, building lighting, landscaping, stadium lighting projects in all cities.

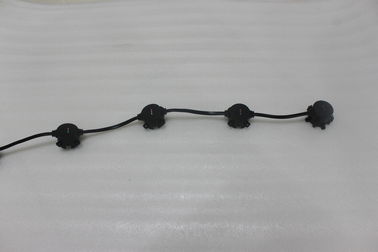

2. Dicolor new product recommend ------P100 Flexible Pixel Screen
Attractions:
a. This product is specially developed for edificial lighting application areas.
b. Screen installation doesn't require steel frame to realize displaying in wide area on the building, showing powerful installation excellence in glass-walled building application.
c. Four persons are capable of completing above 1000 M2 per day, since easy construction and convenient installation simplify the installing task of the outdoor LED display screen.
d. It has very good permeability and the permeation ratio is up to 85%, will not affect the office light-taking when the screen is installed on the edifice. Besides, this screen is of low wind resistance and of high wind force proofing grade.
e. Its installation safety coefficient is high and doesn't need any tools, which is good for avoiding the accidents by the falling from overhead when it is installed.
f. The whole screen is of good flexibility, adapts to any complicated installation conditions at filed, optional shaped display screen models can be installed at any complex fields.
3. LED Lighting Product features
a. Have a smart outlooking, can effectively reduce the weight and wind resistance, reduce the burden of the installation, increase higher safety
b. Has a wide range of color, better performance of showing color
c. Without any bad flashing of the light, avoide the glare, eye tired and vision disturbe which caused by the glare of common high power LED lamps.
d. Without light pollution, especially designed for the lighting project, obtain different design proposal for different lighting project.
e. No high pressure of the voltage, anti-dust designing, avoid the decrease voltage problem which caused by the common big consumption of LED lamp and make it black due to higher voltage
f. Adopt classic coated lens, won't become to yellow due to aging, eliminate the problems of brightness attenuation and life span shorten which cause by it becomes yellow which use common big consumption LED lamp with long time.
g. Work with lower heat and lower voltage, thus make it safer and more reliable. It is under control of the LED junction temperature in a ideal temperature, and won't happen anthing
4. LED Urban Lighting Resolution
5.LED Lighting Product Applications
|
|
| Sight LED Lightening Sight lightening is the best scenery of the city night piece. It is very effective for decorating and beautifying the night of the city. |
Road LED Lightening Road lightening is a very important action of the government to convenient the people and benefit the people. At present, road lightening mainly adopt LED light, environmental conservation & economy of energy. |
|
|
| LED Advertisement Lightening Advertisement lightening can not only spread the advertising content, but also beautifying the city. Better advertising effect and more beautiful. |

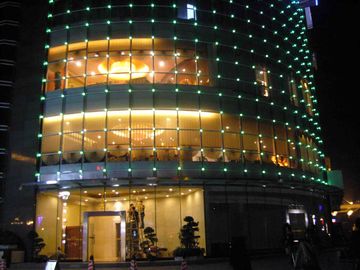

LED Building Lightening Building lightening is a very common form of the city night piece. It enhances the pageantry of the building and beautifying the city night. |
