Product Details:
Payment & Shipping Terms:
|
Item Name: | Outdoor Display Advertising | Pixel Pitch: | 6mm |
---|---|---|---|
Driving Method: | Constant Current | Pixel Composition: | 1R1G1B |
Scanning Method: | Static Scanning | Gray Scale: | 256~65536 |
High Resolution Outdoor Advertising LED Display P6mm Full Color
Quick Details:
1. High resolution, high definition and excellent display effect.
2. Pixel resolution: 27777dots per square meter
3. Brand new mask design ensures zero reflection of the led light.
4. Pyrolitic coating technique is used for cabinet design, thus greatly improving the antirust function.
5. The flatness is controlled within ±0.2mm.
Application:
P6mm full color outdoor display advertising is widely used in various places requiring high definition display such as new type of dynamic outdoor advertising board, real estate company, business street, shopping plaza, large square, government plaza and recreation square.
Product Advantages of D-King Led:
D-King led displays use American or Tanwai import high quality led chip and have such advantages as wide visual angle, uniform colors, low failure rate, easy maintenance.
1. Price advantages: Our products have the most competitive price among the same product in the market, and have the highest quality.
2. Performance advantages: High uniformity, wide visual angle and single-color single-led maintenance.
3. Quality advantages: The whole production processes, from materials to finished products, are controllable, which guarantees reliable product quality.
4. Service advantages: We provide perfect service under the same condition.
Technical Parameters of P6 Outdoor Display Advertising:
Model | P6 Outdoor Display Advertising |
Pixel Pitch | 6mm |
Pixel Composition | 1R1G1B |
LED Type | DIP |
Pixel Density | 27777dots/m² |
Scanning method | Static Scanning |
Brightness | ≥6000cd/m² |
Working Voltage | 220V±10% |
Average Power | 300W/m² |
Max. Power | 1100W/m² |
Pixel No. on Unit Plate | 32×32 |
Module Size | 192mm×192mm |
Level up degree | <1mm |
Viewable Distance | ≥6m |
Viewable Angle | Horizontal: 140°, Vertical: 120° |
Screen Weight | 40kg/m² |
Driving Method | Constant current |
Display Color | 17M~69G colors |
Bright Adjustment | Manual/Automatic/Remote |
Grey Scale | 256~65536 |
Refresh Frequency | 600 Hz~2440Hz |
Refresh Frame Frequency | 60Hz |
Display Content | TV picture, ads, video, live streaming video, picture and words |
Display Mode | 640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640 |
Control Method | Synchronous, asynchronous, remote and wireless |
Transmission Distance | 5E cable≤130M Multimode fibre≤500M monomode fibre≤10KM |
Transmission Distance | ≥72 hours |
Service Life of Led | 100,000 hours |
Mean Time Between Failure | ≥10,000 hours |
Dispersed Incontrollable Point | <0.01% |
Continuous Incontrollable Point | No |
Protecting Technology | Waterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage. |
Temperature of Use Environment | -30℃~+50℃ |
Moisture of Use Environment | 10%~90% |
Certifications | CE, ROHS |
Note: The technical parameters are just for reference, please contact us for details.

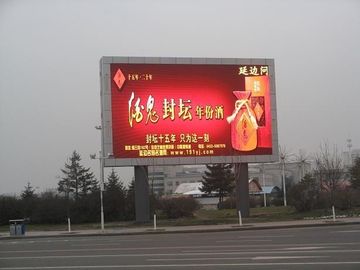

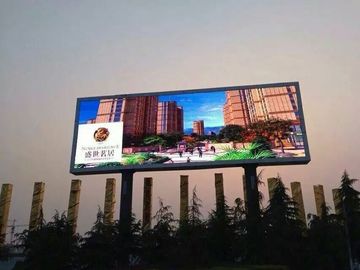

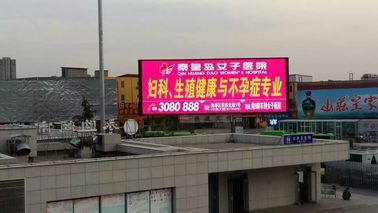

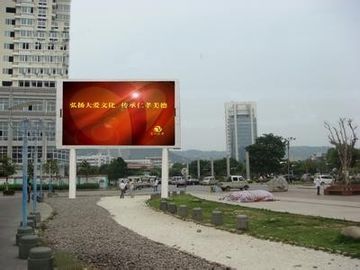

More Pictures for Your Reference:
